Omron G3RV-SR Series Solid State Interface Relay, 24 V dc Control, 2 A Load, DIN Rail Mount

RS Stock No.:: 111-3026
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: G3RV-SR700-A DC24
ผู้ผลิต / Manufacturer:: Omron

Omron G3RV-SR Series Solid State Interface Relay, 24 V dc Control, 2 A Load, DIN Rail Mount

มีส่วนลดเมื่อซื้อจำนวนมาก

ราคา / Price Each

THB1,049.43

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB1,122.89

(รวมภาษีมูลค่าเพิ่ม)

5 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB3,500.00 (ไม่รวมภาษี)

Units	ต่อหน่วย
1 - 4	THB1,049.43
5 +	THB863.68

RS Stock No.:: 111-3026
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: G3RV-SR700-A DC24
ผู้ผลิต / Manufacturer:: Omron

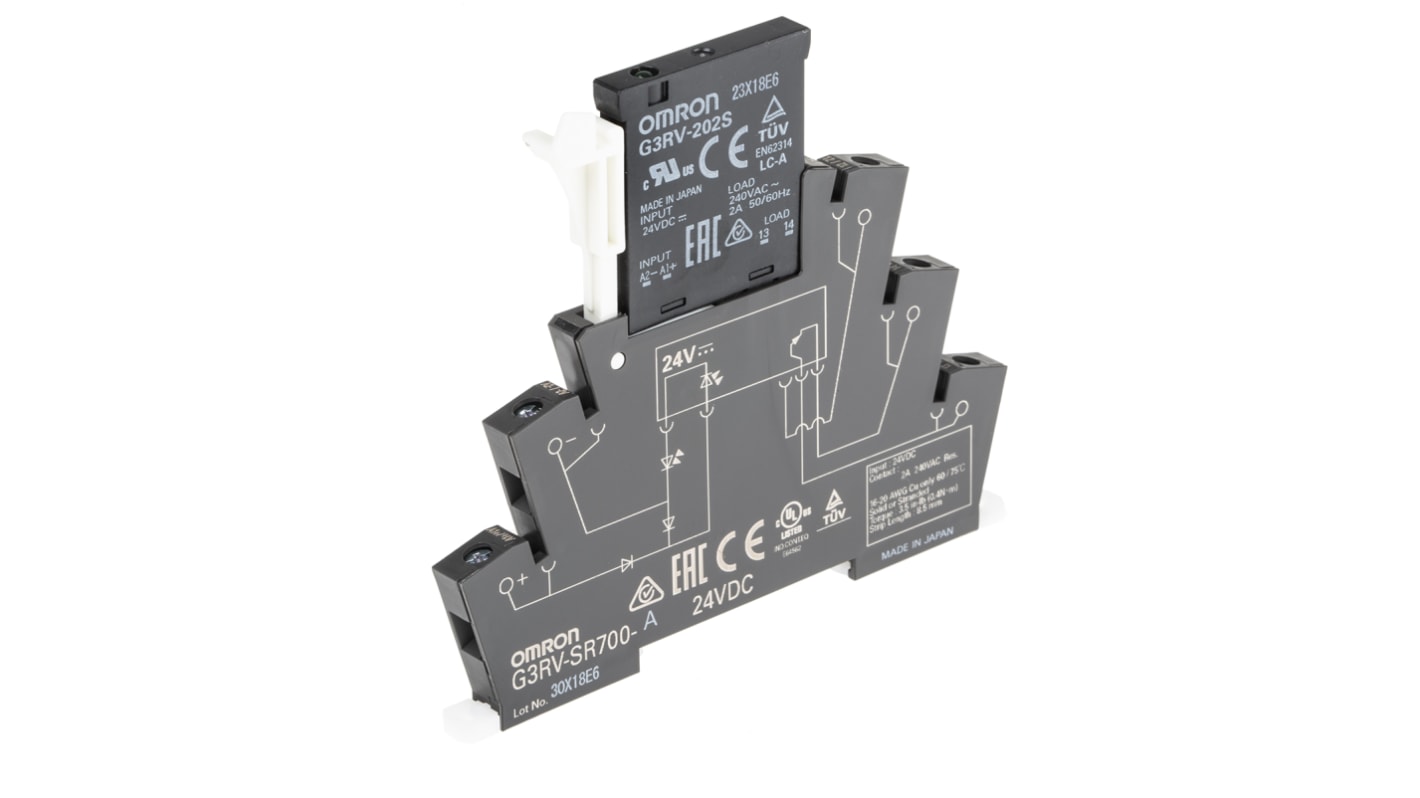

G3RV-SR Slim I/O Solid State Relay

Omron G3RV-SR slim I/O solid state relays are part of the Value Design for Panel range from Omron that takes control panel design and manufacturing to a new level. The G3RV-SR relays allow installation with either top or bottom facing up for a flexible panel design. This flexible design allows efficient wiring inside panels. Push-In Plus terminal blocks are used to save wiring work in comparison with conventional screw terminals.

High frequency
High-speed opening and closing
Switching capacity up to 3 A (DC), and 2 A (AC).
LED operating status

G3RV-SR700-A DC24 – I/O Low Profile SSR - Solid State Relay 6.2 mm Wide.

This I/O SSR-Solid state relay has a lower profile up to 25% of other standard SSR allowing further downsizing of the control panel. An optimal slim design relay that includes high frequency and high speed opening and closing of the SSR –solid state relay.

Features and Benefits G3RV-SR700-A DC24 I/O Slim SSR – Solid State Relay.

• Screw terminal.
• 60% Reduced wiring time.
• AC Applicable output load.
• Zero cross function.
• Rated input voltage 24 V dc.
• Slim compact design.
• AC output – Triac.
• High frequency.
• High speed opening and closing.
• Easy wiring

SSR – Solid State Relay Input Rating at ambient 25°C.

• Rated Current DC – 12 mA.
• Must operate voltage 21.6 V max.
• Must release voltage 1 V min.
• Input voltage ±10% of rated voltage.

SSR – Solid State Relay Output.

• Rated load voltage 100 to 240 V ac, 50/60 Hz.
• Load voltage range 75 to 264 V ac, 50/60 Hz.
• Load current 0.1 to 2 A at ambient temperature 25°C. 100 μA to 3 A at an ambient 25°C.
• Inrush current resistance 30 A, 60 Hz, 1 cycle.
• Applicable load capacity 400 W, output voltage 200 V ac.

Additional Features of G3RV-SR700-A DC24 SSR – Solid State Relay.

• Operate time 1/2 cycle of load power supply +1 ms max.
• Release time 60 ms max.
• Output ON voltage drop 1.6 V (RMS) max.
• Leaked current 5 mA max at 200 V ac, 50/60 Hz. 10 μA max at 24 V dc.
• Vibration resistance – malfunction 10 to 55 to 10 Hz double amplitude.
• Shock resistance 300 m/s².
• Ambient operating temperature -30°C to +55°C.
• Relay weight 38 g.
• IP 20
• Load category LC-A.
• Rated insulation voltage 240 V.

Suitable SSR – Solid State DIN Rails.

• Part number PFP-100N – 1 m DIN relay, Stock number 8278403.
• Part number PFP-50N – 0.5 m DIN relay, Stock number 8278400.

Suitable End Plate for the SSR –Solid State Relay.

• Part number PFP-M, stock number 8278419.

Suitable Spacer Plate for the SSR- Solid State Relay.

• Part number PFP-S, Stock number 8278412.

What does Zero Cross Function mean in SSR in Solid State Relays?

• Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

UL 508, E64562. CE, TUV.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

คุณสมบัติ	Value
Maximum Control Voltage	24 V dc
Maximum Load Current	2 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Control Voltage Range	Maximum of 24 V dc
Switching Type	Zero Cross
Contact Configuration	SPST
Load Voltage Range	75 → 264V ac
Minimum Load Voltage	75 V ac
Terminal Type	Screw
Number of Poles	1
Minimum Load Current	0.1 A
Length	6.2mm
Series	G3RV-SR
Depth	78mm
Output Device	Triac
Height	90mm
Off State Leakage Current	5 mA
Dimensions	6.2 x 78 x 90mm
Maximum Turn On Time	1/2 cycle + 1 ms
Standards Met	CE, CULus, TUV Certification
Special Features	High-Speed Opening and Closing SSR, Lower Profile than Conventional Products
Manufacturer Part No.	G3RV-SR700-A DC24
Operating Temperature Range	-30 → +55°C
