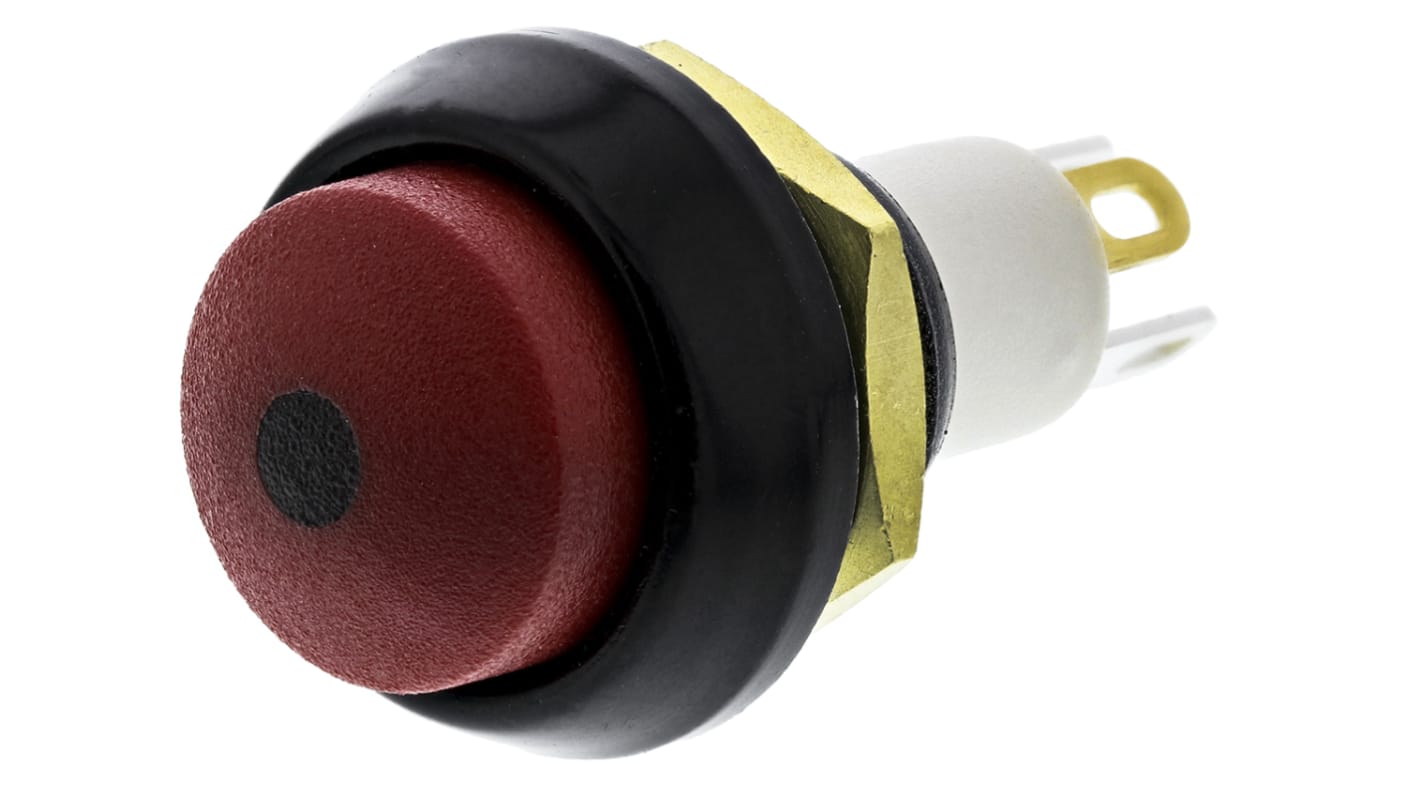

ITW Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.65mm Cutout, SPST, Red LED, IP67

ดู Push Button Switches ทั้งหมด
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป

ตัวเลือก

สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ

presentation
ITW Switches 59 Series Illuminated Miniature Push Button Switch, Momentary, Panel Mount, 13.65mm Cutout, SPST, Red LED,
RS Stock No.
265-0679

Each

THB838.45

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB897.14

(รวมภาษีมูลค่าเพิ่ม)

RS Stock No.:
265-0714
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
59-900118
ผู้ผลิต:
ITW
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

ITW

Switch Operation

Momentary

Illuminated

Yes

Panel Cut Out Diameter

13.65mm

Mounting Type

Panel Mount

Contact Configuration

Single Pole Single Throw (SPST)

LED Colour

Red

IP Rating

IP67

Contact Current Rating

100 mA @ 50 V ac

Contact Material

Gold Plated Palladium Nickel

Manufacturer Part No.

59-900118

Terminal Type

Solder

COO (Country of Origin):
GB

Miniature Sealed Pushbutton Switches (SPNO)


These 59 series are a range of miniature, momentary action, rugged panel sealed pushbutton switches from ITW, that can be used across a number of industries and applications such as:-

• Communications
• Data entry
• Military Environments
• Instrumentation
• Mass transport controls
• Environmentally demanding keypads

Features and Benefits


• Miniature switch.
• Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
• Can be used over a wide temperature range.
• Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.
• Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.
• Non-spark material.
• High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.
• Gold contacts.
• A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.
