ITW Switches 59 Series Miniature Push Button Switch, Momentary, Panel Mount, 13.65mm Cutout, SPST, Clear LED, 125V ac,
- RS Stock No.:
- 144-8534
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 59-113
- ผู้ผลิต / Manufacturer:
- ITW Switches

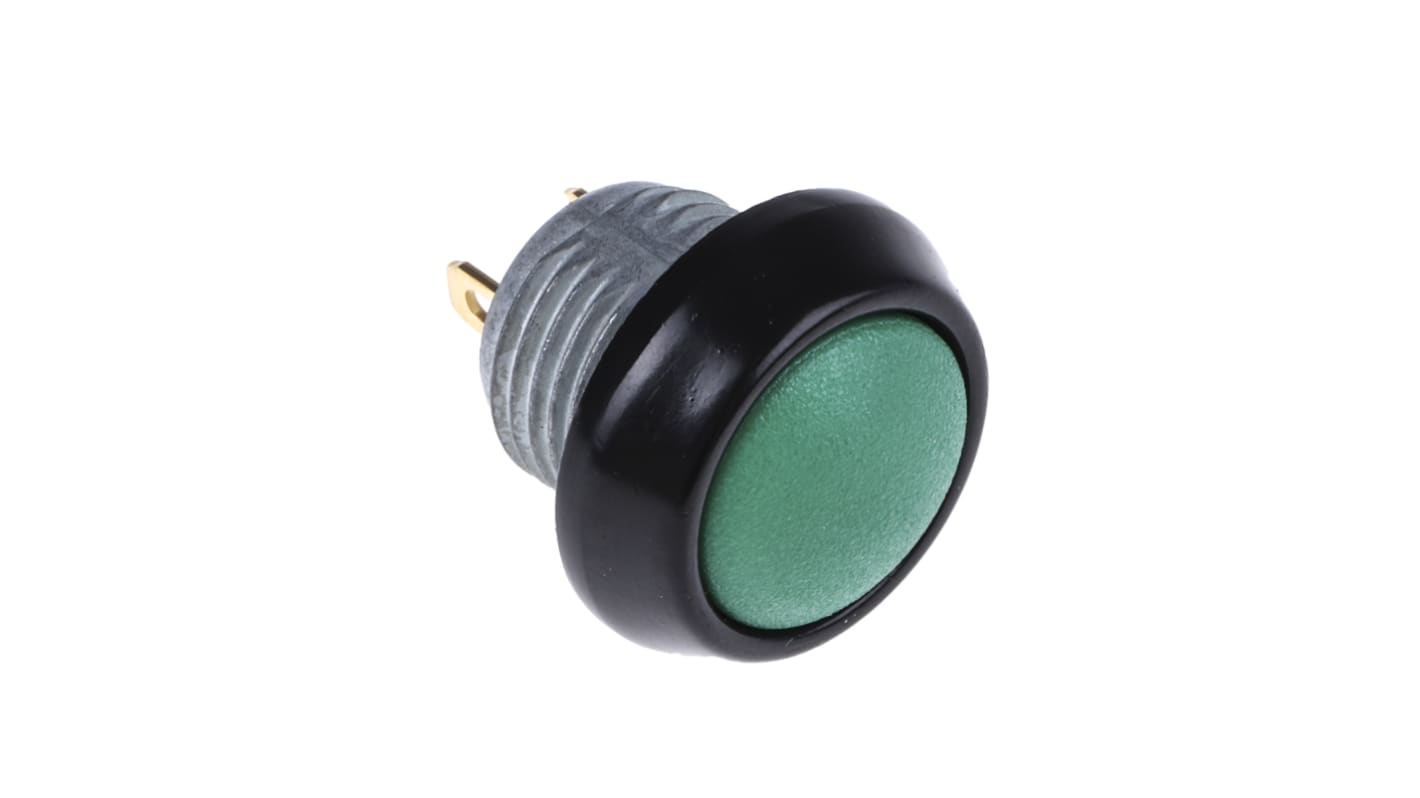

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ดู Push Button Switches ทั้งหมด
450 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each (In a Tray of 50)
THB376.53
(exc. VAT)
THB402.89
(inc. VAT)
Units | Per unit | Per Tray* |
50 + | THB376.53 | THB18,826.50 |
*ตัวบ่งบอกราคา / price indicative |
- RS Stock No.:
- 144-8534
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 59-113
- ผู้ผลิต / Manufacturer:
- ITW Switches
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- TN
รายละเอียดสินค้า / Product Details
Miniature Sealed Pushbutton Switches (SPNO)
These 59 series are a range of miniature, momentary action, rugged panel sealed pushbutton switches from ITW, that can be used across a number of industries and applications such as:-
Communications
Data entry
Military Environments
Instrumentation
Mass transport controls
Environmentally demanding keypads
Data entry
Military Environments
Instrumentation
Mass transport controls
Environmentally demanding keypads
Features and Benefits
Miniature switch.
Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
Can be used over a wide temperature range.
Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.
Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.
Non-spark material.
High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.
Gold contacts.
A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.
Panel sealed up to IP67 and designed to be impact resistant – (IP67 - totally protected against dust and protected against the effects of temporary immersion between 15 cm and 1 m. Duration of test 30 minutes).
Can be used over a wide temperature range.
Series are available as either round, round with illumination, PBT round or square bezels, the non-illuminated range has a choice of 7 button custom colours.
Status illumination are available as the round bezel version, with a choice of 3 button colours and 2 high brightness LED colours.
Non-spark material.
High environmental specifications – the robust nature, coupled with the panel sealing make this switch ideal for use in harsh environments.
Gold contacts.
A choice of body material is provided of either a non-spark zinc alloy or polybutylene terephthalate (PBT) a hard wearing moulded PBT which makes this switch suitable for use in most applications.

คุณสมบัติ / Specifications
คุณสมบัติ | Value |
Switch Operation | Momentary |
Illuminated | No |
Mounting Type | Panel Mount |
Contact Configuration | SPST |
Push Button Style | Round |
Push Button Colour | Green |
Panel Cut Out Diameter | 13.65mm |
Contact Material | Gold Plated |
LED Colour | Clear |
Series | 59 |
IP Rating | IP67 |
Voltage Rating | 125V ac |
Contact Current Rating | 400 mA @ 32 V ac |
Contact DC Voltage Rating | 50V |
Case Colour | Stainless Steel |
Contact AC Voltage Rating | 125V |
Operating Temperature Range | -55 → +125°C |
Terminal Type | Solder |
Minimum Operating Temperature | -55°C |
Manufacturer Part No. | 59-113 |
Maximum Operating Temperature | +125°C |
