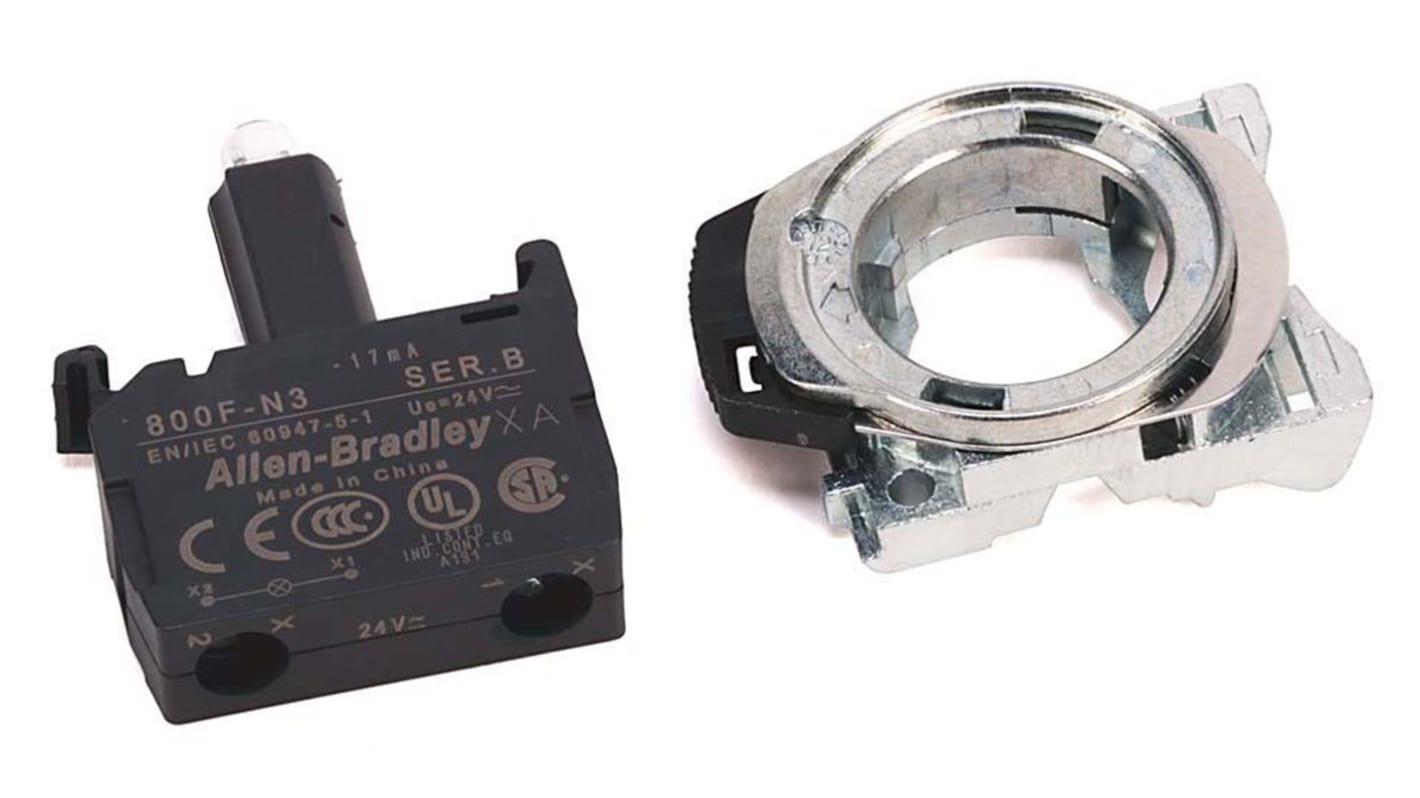

Allen Bradley 800F Series Light Block, 24V ac/dc, White Light

Superior brightness
Extremely visible LED
Leakage current resistant
100000 hours of continuous operation
Can be used on any 800F illuminated operator
Supplied complete with latch: plastic and metal options available

Use this light block and holder from Rockwell Automation's Allen Bradley range to indicate the status of your push buttons. It combines an LED light block with a durable holder made of robust die-cast zinc alloy finished with chromate plating, so you can rely on it for long-term performance. Thanks to a 24V AC/DC voltage rating, this unit is a practical choice for low-voltage applications. The light block's LED is white, which is an ideal colour for signalling that a process is running.

• IP66 (ingress protection) rating indicates that it can withstand dust and high-pressure water jets
• Mechanical lifespan of 100,000 hours for long-lasting performance and low maintenance
• Low front of panel design for space-efficiency in restricted enclosures
• Thermoplastic housing is resistant to abrasion, impact and chemicals

• CE (Conformitè Europëenne)
• UL (Underwriters' Laboratories)
• CSA (Canadian Standards Association)
• CCC (Chinese Standards)

Yes, it is. The holder is compatible with other Rockwell Automation Allen Bradley light blocks in the 800F series, so you can replace the white LED with another colour if necessary.

800F Series Pushbuttons & Indicators

The 800F range of Push Buttons is designed and manufactured to meet demanding performance specifications. Using state-of-the art solid modelling techniques, each component built into 800F Push Buttons is optimized for durability and safe performance.,Designed to conform with the industry standard 22mm hole fixing requirements, the 800F range covers the following products.

Illuminated/non-illuminated push-buttons and mushroom operators
Pilot lights LED operated
Selector, toggle, multi-function and key selector switches (2 and 3 positions)
Custom laser engraving for pushbutton caps and diffusers
Single turn potentiometer assembly
Emergency stop push-buttons including the unique self monitoring contact block
Low front of panel profile
Selection of silicone boots are available
Plastic enclosures
Up to six circuits per operator
Metal operators offer ruggedness and durability
IP66 protection class
Meets CE/UL/CSA standards and CCC (Chinese standard) compliant
Finished with corrosion-resistant anodized plating
Single person panel installation
Easy to install operators provide significant time and cost savings

• Illuminated/non-illuminated push-buttons and mushroom operators
• Pilot lights LED operated
• Selector, toggle, multi-function and key selector switches (2 and 3 positions)
• Custom laser engraving for pushbutton caps and diffusers
• Single turn potentiometer assembly
• Emergency stop push-buttons including the unique self-monitoring contact block
• Low front of panel profile
• Selection of silicone boots are available
• Plastic enclosures
• Metal operators offer ruggedness and durability
