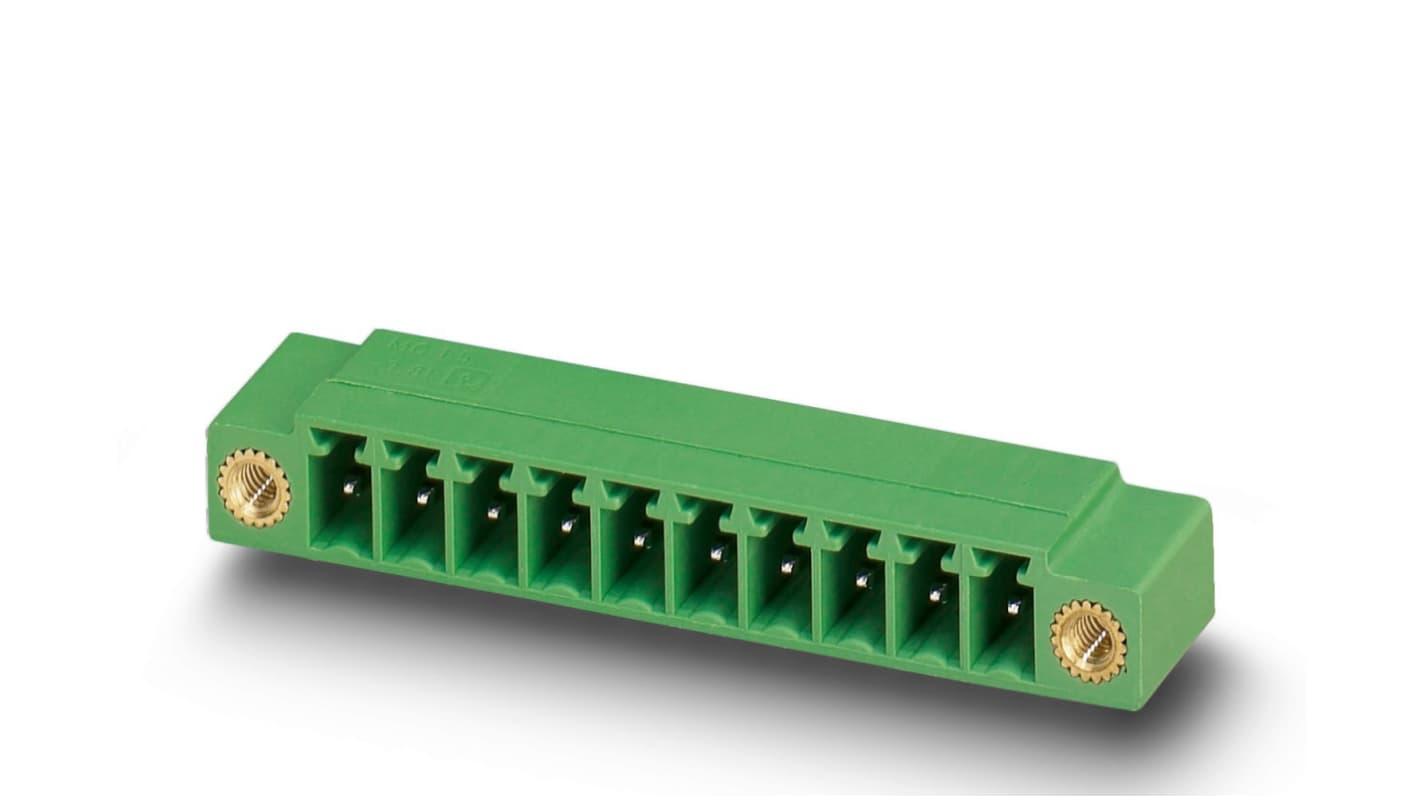

Phoenix Contact, 3.81mm Pitch, 8 Way, Right Angle, Pluggable Terminal Block, Header, Through Hole, Solder Termination,

MINI COMBICON MC & MCV series single level low profile right angle PCB through hole mounting shrouded terminal block headers with a compact 3.81mm pitch and male pins. These MINI COMBICON terminal blocks are available with threaded flanges and lock and release mechanisms.
For marker cards see stock number 648-5508
For mating Lock & Release Plugs see stock number 220-4658 typically

A PCB header is a type of connector that is used on printed circuit boards, most commonly motherboards to allow you to connect other accessories or cables into a single connector on the circuit board. They come in different shapes and sizes and can be mounted in various ways. The MC & MCV series are all recommended to be wave soldered onto the PCB.

The Phoenix Contact single row, 3.81 mm pitch, 8 positions, green printed-circuit board connector has linear pinning pin layout and 1.5 mm² nominal cross section with contact material made of Cu alloy. It has 8 A nominal current & 160 V nominal voltage.

Well-known mounting principle allows worldwide use
Screwable flange for superior mechanical stability
Maximum flexibility when it comes to device design – one header for connectors with different connection technologies
