IMO i3E Series PLC CPU, 24 (Digital), 4 (Analogue)-Input, Analogue, Digital Input
- RS Stock No.:
- 847-4733
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- I3E14Z/20B05-SEHF
- ผู้ผลิต / Manufacturer:
- IMO
ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง
เพิ่ม / Added
ราคา / Price Each
THB87,845.83
(exc. VAT)
THB93,995.04
(inc. VAT)
| Units | Per unit |
| 1 + | THB87,845.83 |
- RS Stock No.:
- 847-4733
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- I3E14Z/20B05-SEHF
- ผู้ผลิต / Manufacturer:
- IMO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IE
รายละเอียดสินค้า / Product Details

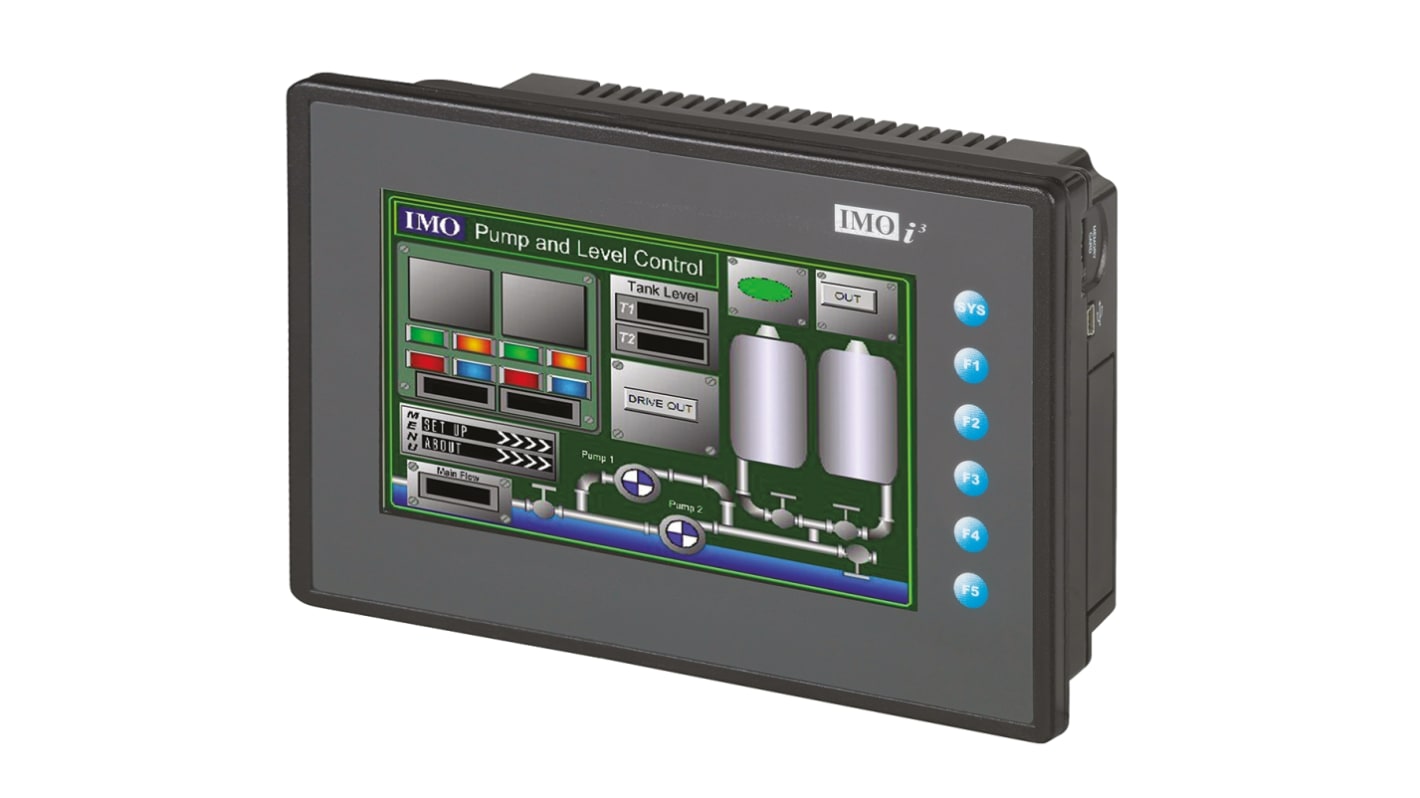

i3E Intelligent Control Station
IMO i3E Intelligent Control Station offers a unique solution since it is both a PLC and HMI combined in one device.
It is also, small, very powerful and has many unique connectivity features.
It is also, small, very powerful and has many unique connectivity features.
7" TFT Colour Touchscreen
65535 Colours, WVGA (800 x 480)
5 programmable keys
MicroSD Data storage up to 32GB
Real Time Clock
Communication Serial, 2 Ethernet, 2 CAN, iCAN
3 Ports RS232/RS485
Power Supply 10-30 Vdc
Free Configuration Software
USB Port for Programming
USB Port for Flash Drives up to 2TB
Remote IO Communication
65535 Colours, WVGA (800 x 480)
5 programmable keys
MicroSD Data storage up to 32GB
Real Time Clock
Communication Serial, 2 Ethernet, 2 CAN, iCAN
3 Ports RS232/RS485
Power Supply 10-30 Vdc
Free Configuration Software
USB Port for Programming
USB Port for Flash Drives up to 2TB
Remote IO Communication
IMO i3 Intelligent Control Station
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Manufacturer Series | i3E |
| Number of Inputs | 24 (Digital), 4 (Analogue) |
| Input Type | Analogue, Digital |
| Number of Outputs | 16 (Digital), 2 (Analogue) |
| Network Type | CAN, Ethernet |
| Display Included | Yes |
| Dimensions | 210.06 x 143.76 x 43.94 mm |
| Length | 210.06mm |
| Programming Interface | Front Panel |
| Communication Port Type | RS232, RS232/RS485, RS485 |
| Depth | 43.94mm |
| Memory | 32 GB |
| Number of Communication Ports | 3 |
| Mounting Type | Panel Mount |
| Width | 143.76mm |
