Schneider Electric Modicon M258 Series PLC CPU for Use with Modicon M258, Digital Output, 26-Input, Digital Input

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
TH - SEBundle - PDP
RS Stock No.:
770-2368
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
TM258LF42DT
ผู้ผลิต:
Schneider Electric
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Schneider Electric

Manufacturer Series

Modicon M258

Number of Inputs

26

Output Type

Digital

For Use With

Modicon M258

Input Type

Digital

Number of Outputs

16

Voltage Category

24 V dc

Network Type

Ethernet

Memory

192 MB

Battery Backup

Yes

Dimensions

175 x 99 x 85 mm

Communication Port Type

Ethernet, Serial, USB

Program Capacity

128000 Instructions

Depth

85mm

Length

175mm

Width

99mm

Mounting Type

DIN Rail

Number of Communication Ports

6

Output Current

4 mA

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+60°C

COO (Country of Origin):
AT

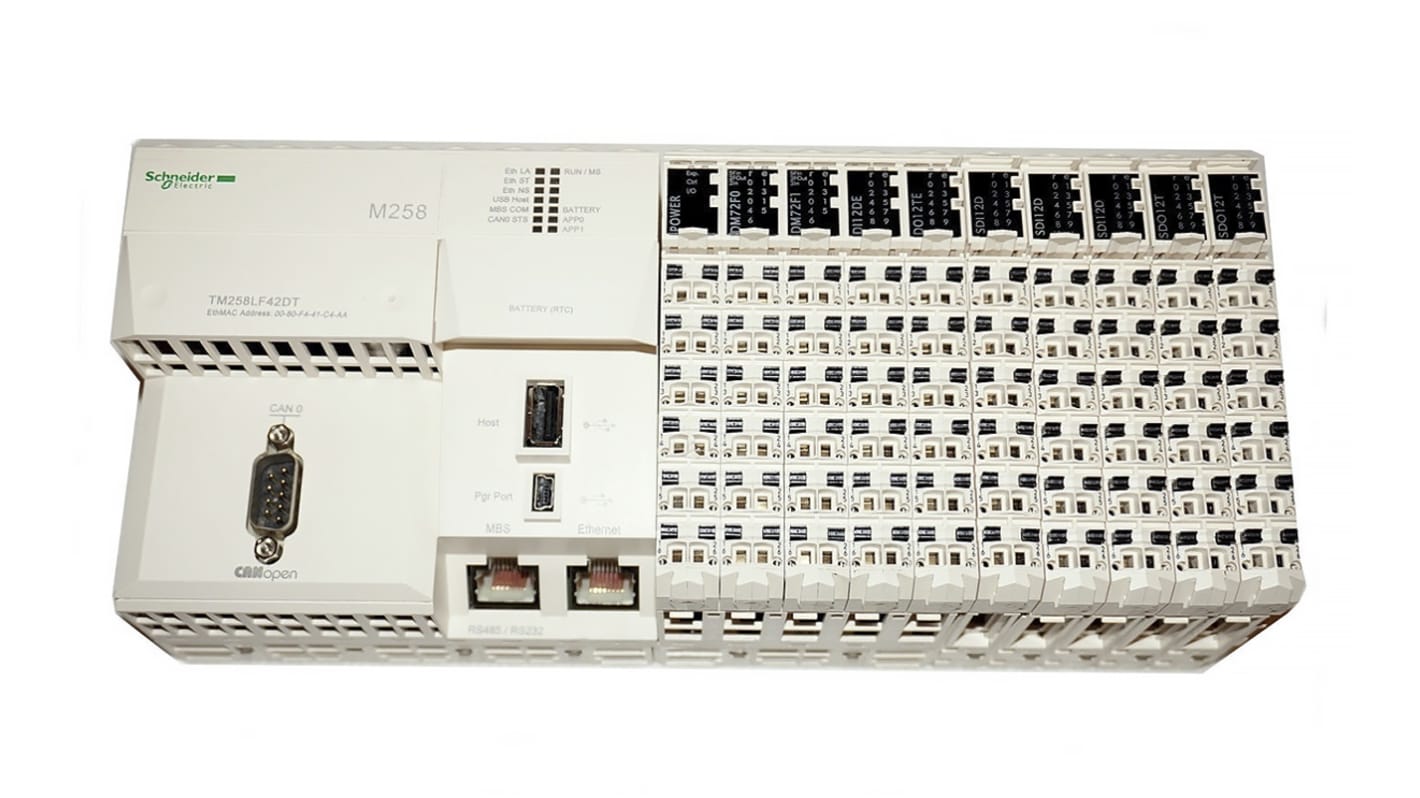

Modicon M258 - CPU


ThisModicon M258 PLC is designed for applications such as packaging, hoisting, conveying and storage, textiles and woodworking, hoisting, etc. It offers high-performance solutions for speed control, counting, axis control and communication functions.

High performance with a dual-core processor
Execution speed of 22 ns for a Boolean instruction
Removable spring terminals, with a test point for a voltage sensing device
Embedded serial link and Ethernet port (RJ45)
Embedded Web and FTP Server

The Modicon M258 CPU is supported and programmed with the SoMachine Programming Software, which provides the following IEC61131-3 programming languages:


IL: Instruction List
ST: Structured Text
FBD: Function Block Diagram
SFC: Sequential Function Chart
LD: Ladder Diagram
CFC: Continuous Function Chart


Schneider Electric Modicon M258
