Name: Siemens Monitoring Relay, SPDT, Snap-On, 275 V ac 275 V dc
Brand: Siemens
SKU: 758-6927
Price: 8274.72 THB
Availability: Discontinued

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Siemens
	Product Type	Monitoring Relay
	Contact Configuration	SPDT
	Mount Type	Snap-On
	Power Consumption	2W
	Switching Voltage	275 V
	Terminal Type	Screw
	Time Delay	0.3 to 10 s
	IP Rating	IP20
	Supply DC Voltage	275 V dc
	Contact Current	3A
	Supply AC Voltage	275 V ac
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	60°C
	Length	91mm
	Series	3UG4
	Width	22.5 mm
	Standards/Approvals	RoHS
	Height	92mm

	เลือกทั้งหมด
	Brand Siemens
	Product Type Monitoring Relay
	Contact Configuration SPDT
	Mount Type Snap-On
	Power Consumption 2W
	Switching Voltage 275 V
	Terminal Type Screw
	Time Delay 0.3 to 10 s
	IP Rating IP20
	Supply DC Voltage 275 V dc
	Contact Current 3A
	Supply AC Voltage 275 V ac
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature 60°C
	Length 91mm
	Series 3UG4
	Width 22.5 mm
	Standards/Approvals RoHS
	Height 92mm

ล็อกอินเพื่อดูโมเดล CAD

COO (Country of Origin):: CZ

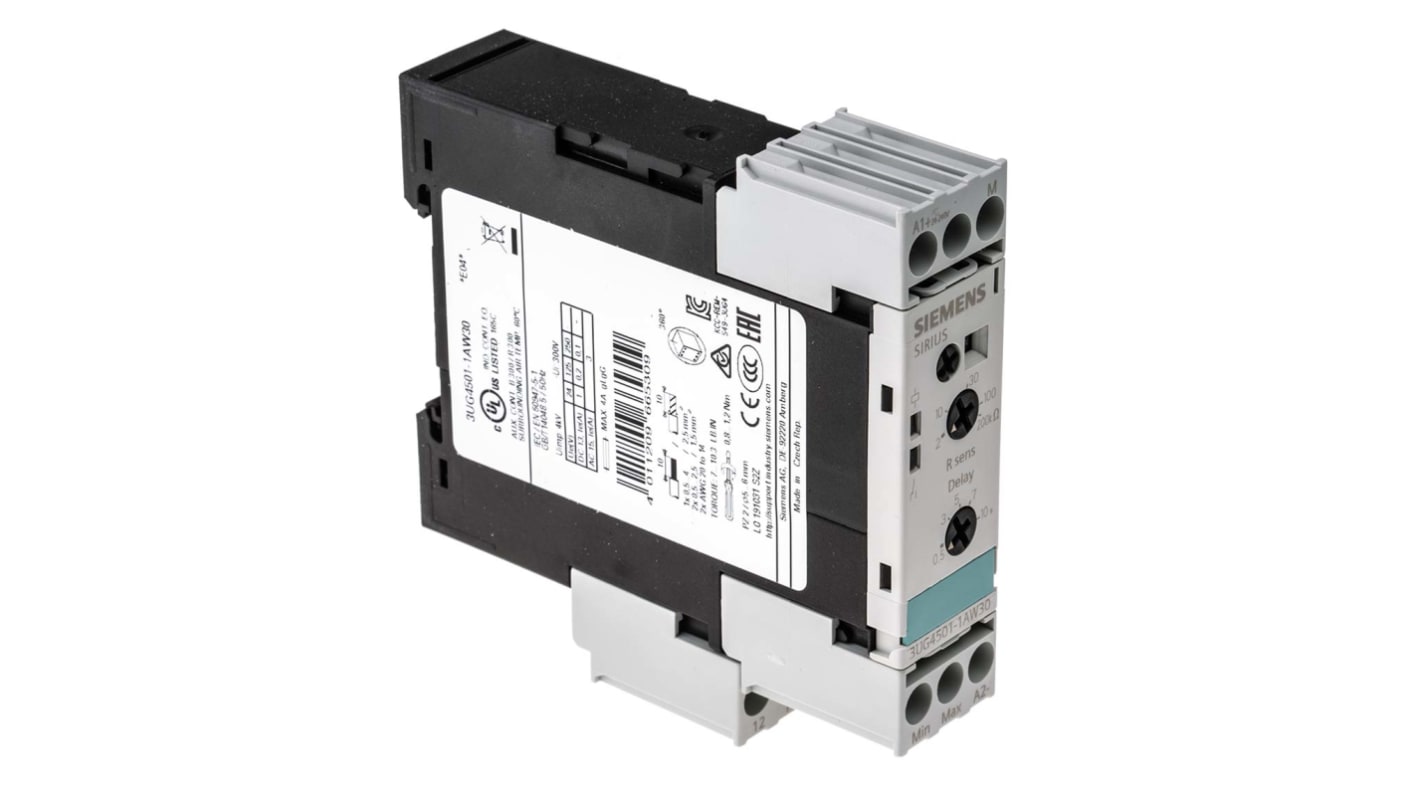

Siemens Monitoring Relay, SPDT Contact Configuration, DIN Rail Mount - 3UG4501-1AW30

This monitoring relay serves as an advanced level monitoring device tailored for industrial applications. With dimensions of 92x22.5x91mm, it is designed for compact DIN rail mounting, making it versatile for different installations. It operates effectively within a temperature range of -25 to +60°C, suitable for dynamic environments that demand precise monitoring.

Features & Benefits

• Adjustable response time to meet specific monitoring requirements

• SPDT contact configuration for flexible electrical operations

• Compatible with both AC and DC voltage supply

• High shock resistance for dependable performance in tough conditions

• Removable screw terminal connections for easier installation

• Longevity with up to 10,000,000 mechanical operations

Applications

• Level detection in tanks and reservoirs

• Monitoring of resistance in various industrial processes

• Temperature monitoring in challenging environments

• Enhanced process control in automation systems

• Seamless integration with other electrical monitoring devices

Can it handle different voltage levels?

Yes, it accepts an input range of 24 to 240V AC/DC.

Is it suitable for outdoor installation?

No, this device has a protection class rated at IP20.

Will it indicate a fault during operation?

Yes, the monitoring functionality provides alerts for level violations.

Can it be reset externally?

Yes, it features an external reset function for added convenience.

Is the response delay adjustable?

Yes, the delay time can be adjusted from 0.5 to 10 seconds.

Siemens Monitoring Relay, SPDT, Snap-On, 275 V ac 275 V dc
