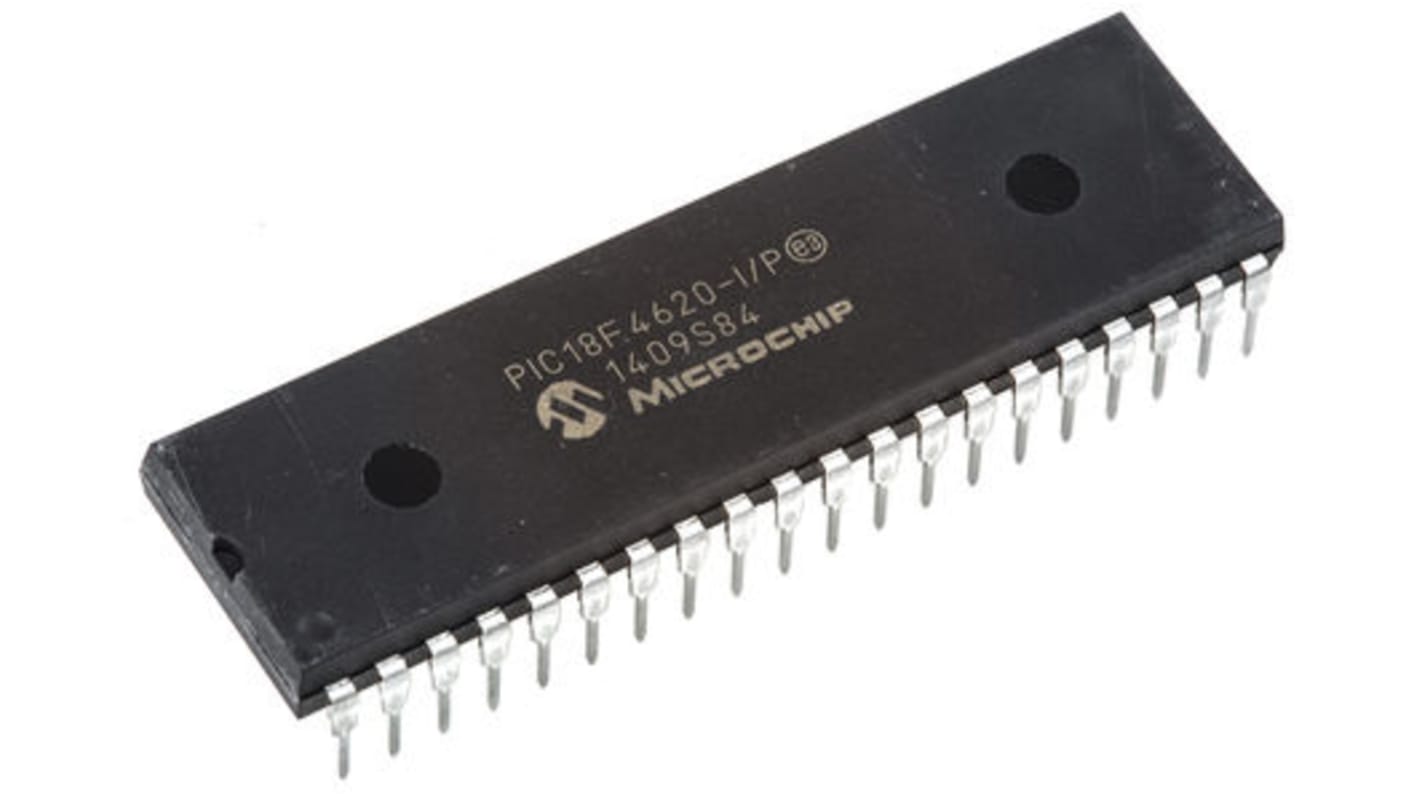

Microchip, 8bit PIC, PIC18F Microcontroller, 40MHz, 1.024 kB, 64 kB Flash, 40-Pin PDIP
- RS Stock No.:
- 887-7126
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F4620-I/P
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 หลอด หลอดละ 10 ชิ้น)*
THB3,795.07
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB4,060.72
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 10 ชิ้นจะส่งได้หลังจากวันที่ 12 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
- เพิ่มอีก 70 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อหลอด* |
|---|---|---|
| 10 - 10 | THB379.507 | THB3,795.07 |
| 20 - 30 | THB371.157 | THB3,711.57 |
| 40 + | THB363.188 | THB3,631.88 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 887-7126
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- PIC18F4620-I/P
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | PIC18F | |
| Package Type | PDIP | |
| Mounting Type | Through Hole | |
| Pin Count | 40 | |
| Device Core | PIC | |
| Data Bus Width | 8bit | |
| Program Memory Size | 1.024 kB, 64 kB | |
| Maximum Frequency | 40MHz | |
| RAM Size | 3.986 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 2 | |
| Number of SPI Channels | 1 | |
| Number of USART Channels | 1 | |
| Typical Operating Supply Voltage | 4.2 → 5.5 V | |
| Number of UART Channels | 0 | |
| Number of I2C Channels | 1 | |
| Number of CAN Channels | 0 | |
| ADCs | 13 x 10 bit | |
| Length | 53.21mm | |
| Number of ADC Units | 1 | |
| Maximum Operating Temperature | +85 °C | |
| Dimensions | 2.095 x 0.58 x 0.195in | |
| Width | 0.58in | |
| Height | 4.95mm | |
| Number of LIN Channels | 0 | |
| Pulse Width Modulation | 1 (CCP), 1 (ECCP) | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
| Number of Ethernet Channels | 0 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name PIC18F | ||
Package Type PDIP | ||
Mounting Type Through Hole | ||
Pin Count 40 | ||
Device Core PIC | ||
Data Bus Width 8bit | ||
Program Memory Size 1.024 kB, 64 kB | ||
Maximum Frequency 40MHz | ||
RAM Size 3.986 kB | ||
USB Channels 0 | ||
Number of PWM Units 2 | ||
Number of SPI Channels 1 | ||
Number of USART Channels 1 | ||
Typical Operating Supply Voltage 4.2 → 5.5 V | ||
Number of UART Channels 0 | ||
Number of I2C Channels 1 | ||
Number of CAN Channels 0 | ||
ADCs 13 x 10 bit | ||
Length 53.21mm | ||
Number of ADC Units 1 | ||
Maximum Operating Temperature +85 °C | ||
Dimensions 2.095 x 0.58 x 0.195in | ||
Width 0.58in | ||
Height 4.95mm | ||
Number of LIN Channels 0 | ||
Pulse Width Modulation 1 (CCP), 1 (ECCP) | ||
Number of PCI Channels 0 | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Number of Ethernet Channels 0 | ||
PIC18F2525/2620/4525/4620 8-Bit Microcontrollers
The PIC18F2525/2620/4525/4620 family of microcontrollers is based upon Microchip’s PIC18 architecture offering a 31 level hardware stack and 75 instructions. These MCUs provide up to 10 MIPS, up to 64 Kbytes program memory with RAM of 3968 bytes and data EEPROM of 124 bytes. On board is a configurable RC oscillator.
Microcontroller Features
75 Instructions – 83 with Extended Instruction Set Enabled
31 Level Hardware Stack
Internal Oscillator – Selectable frequencies from 8 MHz to 31 kHz
25 I/O Pins – PIC18F2525/2620 Models
36 I/O Pins – PIC18F4525/4620 Models
nanoWatt Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Oscillator Start-Up Timer (OST)
Brown-Out Reset (BOR)
Extended Watchdog Timer (WDT)
High/Low-Voltage Detection (HLVD) Module
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)
Peripherals
Capture, Compare, PWM Modules – PIC18F2525/2620 x 2; PIC18F4525/4620 x 1
One Enhanced Capture, Compare, PWM Module – PIC18F4525/4620 Models Only
Two Comparators
One 8-bit Timer
Three 16-bit Timers
Master Synchronous Serial Port (MSSP) Module with SPI and I2C
Enhanced Universal Synchronous Asynchronous Receiver Transmitter (EUSART)
