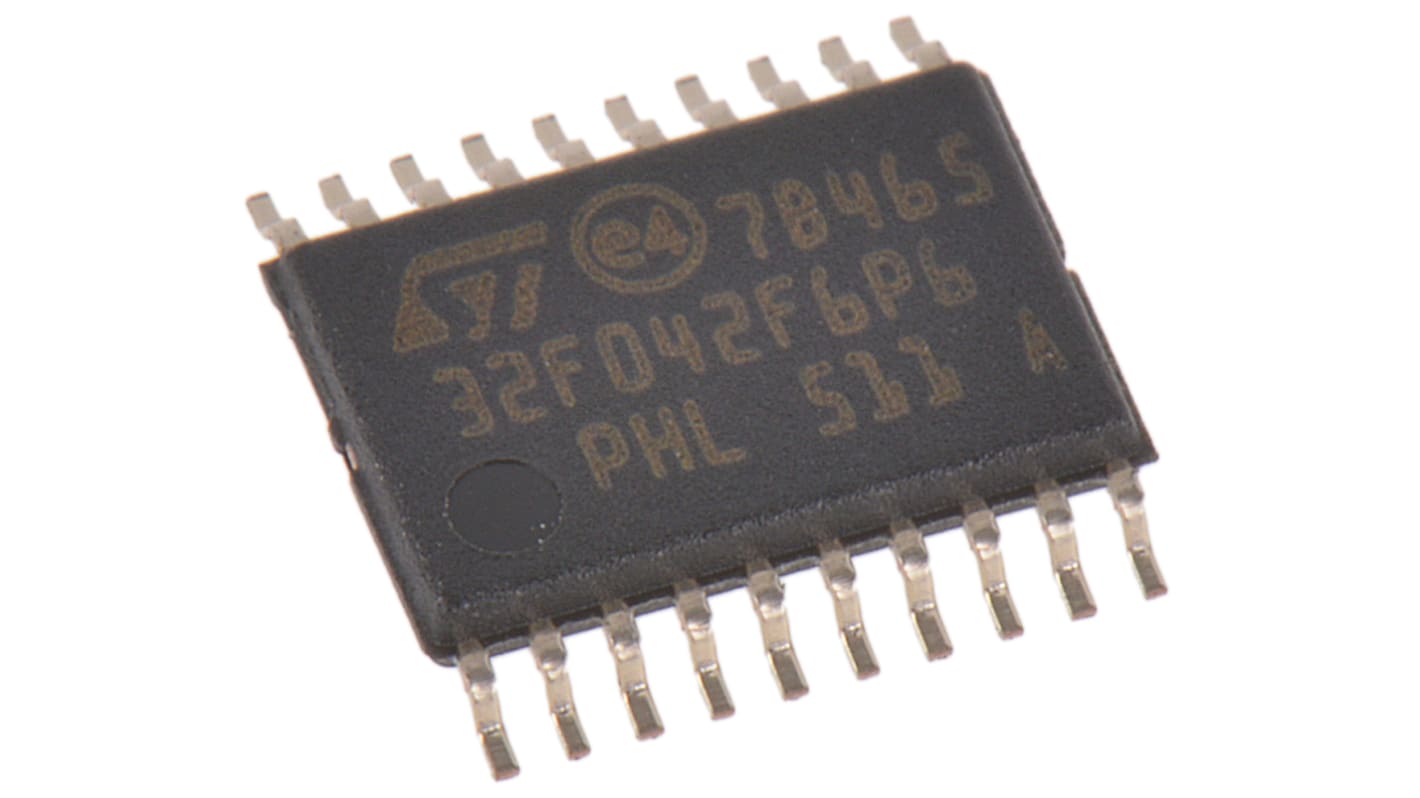

STMicroelectronics, 32bit ARM Cortex M0, STM32F0 Microcontroller, 48MHz, 32 kB Flash, 20-Pin TSSOP
- RS Stock No.:
- 860-7501
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F042F6P6
- ผู้ผลิต:
- STMicroelectronics
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB570.71
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB610.66
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 225 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 5 - 15 | THB114.142 | THB570.71 |
| 20 - 30 | THB111.288 | THB556.44 |
| 35 + | THB109.576 | THB547.88 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 860-7501
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F042F6P6
- ผู้ผลิต:
- STMicroelectronics
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Family Name | STM32F0 | |
| Package Type | TSSOP | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Device Core | ARM Cortex M0 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 32 kB | |
| Maximum Frequency | 48MHz | |
| RAM Size | 6 kB | |
| USB Channels | 1 | |
| Number of PWM Units | 1 x 16 bit | |
| Number of SPI Channels | 1 | |
| Number of UART Channels | 0 | |
| Typical Operating Supply Voltage | 2 → 3.6 V | |
| Number of USART Channels | 2 | |
| Number of CAN Channels | 1 | |
| Number of I2C Channels | 2 | |
| Pulse Width Modulation | 1 (6 x 16 bit) | |
| Dimensions | 6.6 x 4.5 x 1.05mm | |
| Number of ADC Units | 1 | |
| Width | 4.5mm | |
| Maximum Operating Temperature | +85 °C | |
| Height | 1.05mm | |
| Number of LIN Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| Program Memory Type | Flash | |
| Minimum Operating Temperature | -40 °C | |
| Instruction Set Architecture | RISC | |
| Maximum Number of Ethernet Channels | 0 | |
| ADCs | 10 x 12 bit | |
| Length | 6.6mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Family Name STM32F0 | ||
Package Type TSSOP | ||
Mounting Type Surface Mount | ||
Pin Count 20 | ||
Device Core ARM Cortex M0 | ||
Data Bus Width 32bit | ||
Program Memory Size 32 kB | ||
Maximum Frequency 48MHz | ||
RAM Size 6 kB | ||
USB Channels 1 | ||
Number of PWM Units 1 x 16 bit | ||
Number of SPI Channels 1 | ||
Number of UART Channels 0 | ||
Typical Operating Supply Voltage 2 → 3.6 V | ||
Number of USART Channels 2 | ||
Number of CAN Channels 1 | ||
Number of I2C Channels 2 | ||
Pulse Width Modulation 1 (6 x 16 bit) | ||
Dimensions 6.6 x 4.5 x 1.05mm | ||
Number of ADC Units 1 | ||
Width 4.5mm | ||
Maximum Operating Temperature +85 °C | ||
Height 1.05mm | ||
Number of LIN Channels 0 | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
Program Memory Type Flash | ||
Minimum Operating Temperature -40 °C | ||
Instruction Set Architecture RISC | ||
Maximum Number of Ethernet Channels 0 | ||
ADCs 10 x 12 bit | ||
Length 6.6mm | ||
STM32F04 Series Microcontrollers, STMicroelectronics
CRC calculation unit
Reset and power management
Clock management
Up to 37 fast Inputs/Outputs
5-channel DMA controller
8 Timers
Communication interfaces: I2C, USART, SPI, CAN, USB 2.0 full-speed
