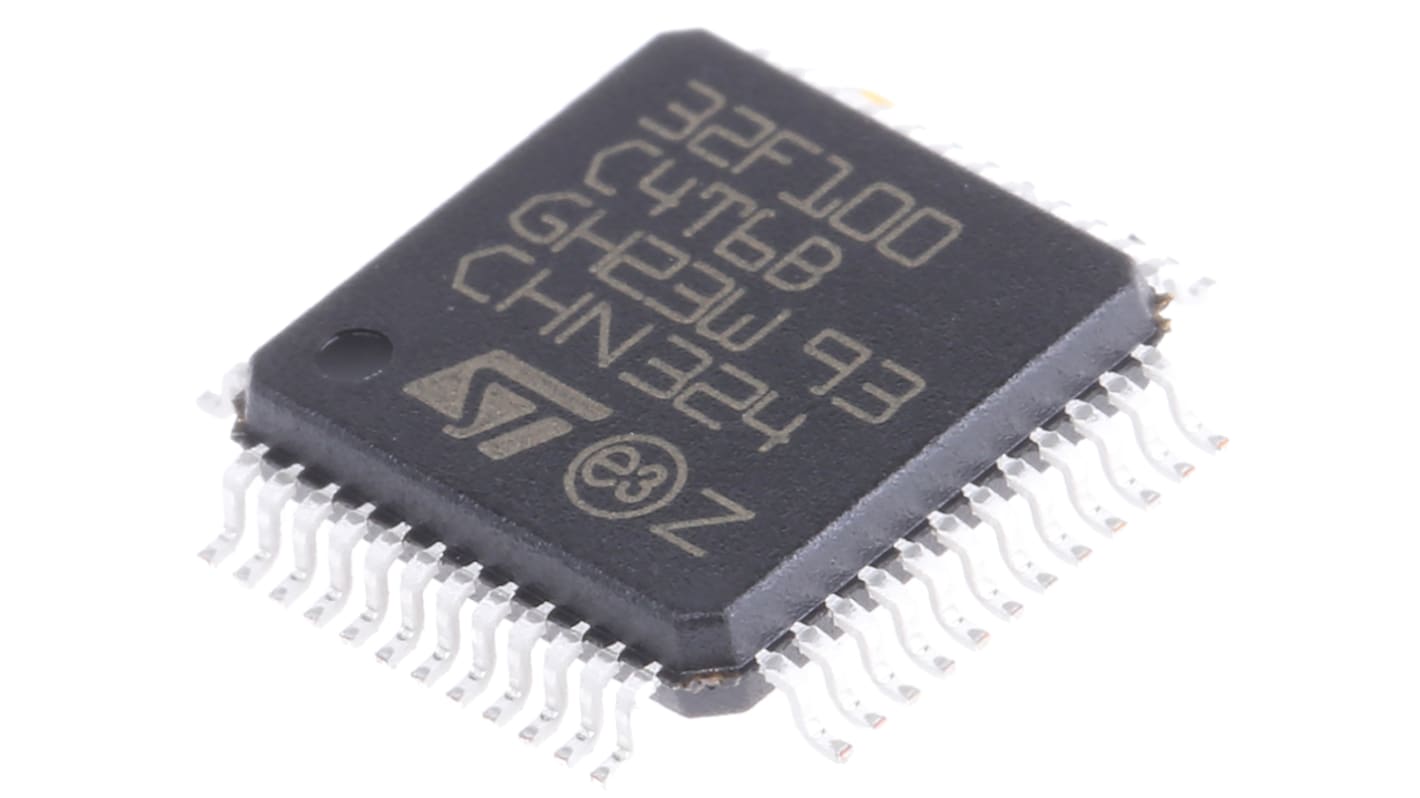

STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 24MHz, 16 kB Flash, 48-Pin LQFP
- RS Stock No.:
- 723-8861
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F100C4T6B
- ผู้ผลิต:
- STMicroelectronics
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ตัวเลือก
สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ
Each
THB151.00
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB161.57
(รวมภาษีมูลค่าเพิ่ม)
- RS Stock No.:
- 723-8861
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F100C4T6B
- ผู้ผลิต:
- STMicroelectronics
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Family Name | STM32F1 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 48 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 16 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 4 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 7 x 16 bit | |
| Number of SPI Channels | 1 | |
| Number of I2C Channels | 1 | |
| Typical Operating Supply Voltage | 2 → 3.6 V | |
| Number of USART Channels | 2 | |
| Number of UART Channels | 0 | |
| Number of CAN Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| ADCs | 10 x 12 bit | |
| Length | 7.2mm | |
| Number of ADC Units | 1 | |
| Instruction Set Architecture | RISC | |
| Program Memory Type | Flash | |
| Number of LIN Channels | 0 | |
| Height | 1.45mm | |
| Dimensions | 7.2 x 7.2 x 1.45mm | |
| Width | 7.2mm | |
| Pulse Width Modulation | 3(16 bit), 3(4 x 16 bit), 6 x 16 bit | |
| Minimum Operating Temperature | -40 °C | |
| Number of Ethernet Channels | 0 | |
| Number of PCI Channels | 0 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Family Name STM32F1 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 48 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 16 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 4 kB | ||
USB Channels 0 | ||
Number of PWM Units 7 x 16 bit | ||
Number of SPI Channels 1 | ||
Number of I2C Channels 1 | ||
Typical Operating Supply Voltage 2 → 3.6 V | ||
Number of USART Channels 2 | ||
Number of UART Channels 0 | ||
Number of CAN Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
ADCs 10 x 12 bit | ||
Length 7.2mm | ||
Number of ADC Units 1 | ||
Instruction Set Architecture RISC | ||
Program Memory Type Flash | ||
Number of LIN Channels 0 | ||
Height 1.45mm | ||
Dimensions 7.2 x 7.2 x 1.45mm | ||
Width 7.2mm | ||
Pulse Width Modulation 3(16 bit), 3(4 x 16 bit), 6 x 16 bit | ||
Minimum Operating Temperature -40 °C | ||
Number of Ethernet Channels 0 | ||
Number of PCI Channels 0 | ||
STM32F100 Value Line Series Microcontrollers, STMicroelectronics
STMicroelectronics Advanced ARM 32-bit processor low and medium density value line with up to 512 KB Flash, timers, ADC, DAC and comm interface also available in different packages. ST’s STM32F100 microcontroller family is suitable in a wide area such as application control and user interfaces; medical and handheld equipment; PC and gaming peripherals; GPS platforms and industrial applications.
Commercial & Industrial Temperatures
Low voltage: 2 V to 3.6 V
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility
