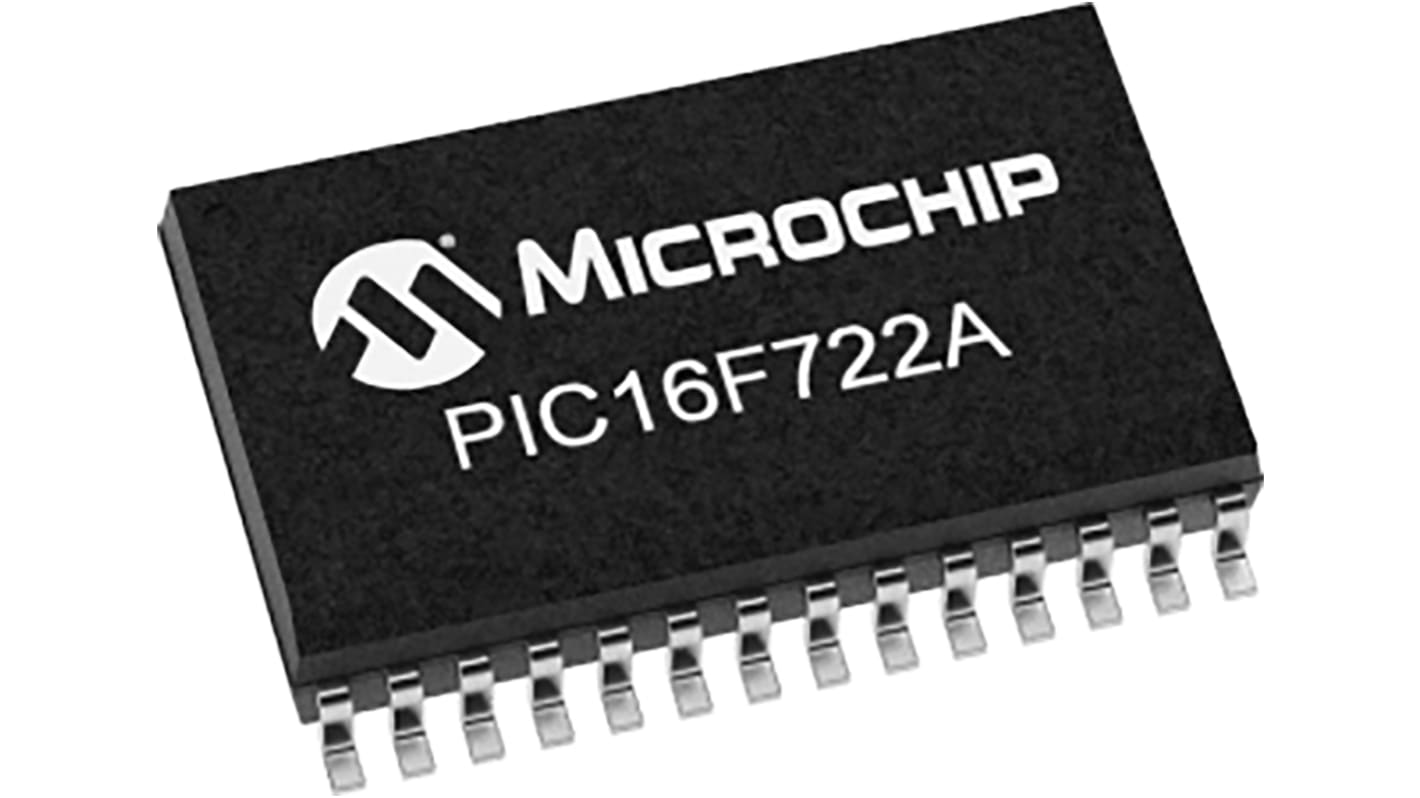

Microchip, 8bit PIC, PIC16LF Microcontroller, 20MHz, 3.5 kB Flash, 28-Pin SSOP

RS Stock No.:: 177-2486
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC16LF722A-I/SS
ผู้ผลิต:: Microchip

Microchip, 8bit PIC, PIC16LF Microcontroller, 20MHz, 3.5 kB Flash, 28-Pin SSOP

ยอดรวมย่อย (1 แพ็ค แพ็คละ 10 ชิ้น)**

THB499.55

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB534.52

(รวมภาษีมูลค่าเพิ่ม)

ขออภัย เราไม่สามารถตรวจสอบสต็อคสินค้าได้ในเวลานี้ โปรดรีเฟรชเพจอีกครั้ง

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)

ชิ้น	ต่อหน่วย	ต่อแพ็ค**
10 +	THB49.955	THB499.55

**ตัวบ่งบอกราคา / price indicative

เปรียบเทียบ

RS Stock No.:: 177-2486
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC16LF722A-I/SS
ผู้ผลิต:: Microchip

PIC16F722A/723A 8-Bit Flash Microcontrollers

The PIC16F range of microcontrollers from Microchip are 8-bit MCUs that incorporate Microchip’s PIC® architecture into a variety of pin and package options, from space efficient 14-pin devices to feature-rich 64-pin devices. Devices with Baseline, Mid-Range or Enhanced Mid-Range architecture are available with numerous different peripheral combinations, giving designers flexibility and choice for their applications.

The PIC16F722A/723A family of microcontrollers is based upon Microchip’s Mid-range core with an 8 level deep hardware stack and 35 instructions. These MCUs provide up to 5 MIPS, up to 7 Kbytes program memory and up to 192 bytes RAM. On board is an oscillator factory calibrated to ±1% accuracy.

Microcontroller Features

20 MHz Max. CPU Speed
35 Instructions
8 Level Hardware Stack
25 I/O Pins
nanoWatt XLP Technology
Power-On Reset (POR)
Power-Up Timer (PWRT)
Brown-Out Reset (BOR)
Watchdog Timer (WDT)
In-Circuit Serial Programming (ICSP)
In-Circuit Debug (ICD)

Peripherals

11 Channel 8-bit Analogue to Digital Converter (ADC)
8 Channel mTouchTM Sensing Oscillator Module
Two Capture, Compare, PWM (CCP) Modules
Two 8-bit Timers
One 16-bit Timer
Addressable Universal Synchronous Asynchronous Receiver Transmitter (AUSART)
Synchronous Serial Port (SSP) with SPI and I2C

This versatile 28-pin MCU is a member of Microchip's family of Extreme Low Power MCUs featuring nanoWatt XLP(TM) Technology.

Mid-Range core with 35 Instruction, 8 Stack Levels
Flash Program Memory
Internal 16MHz oscillator
I²C™, SPI, AUSART
2 X CCP (Caputure/Compare/PWM)
11 Channel 8b ADC
25mA Source/Sink current I/O
One 8-bit Timer (TMR0)
Two 16-bit Timer (TMR1/TMR2)
Watchdog Timer (WDT)
Enhanced Power-On/Off-Reset
Brown-Out Reset (BOR)
In Circuit Serial Programming™ (ICSP™)
Built-in mTouch™ capacative sensing module
Wide Operation Voltage Variant ’F’ (1.8V – 5.5V)
eXtreme Low Power (XLP) ’LF’ Variant (1.8V – 3.6V)
Note: The PIC16F/LF722A is recommended for new designs
The PIC16F/LF722 & PIC16F/LF722A are electrically identical
The 'A' variants are provided at reduced pricing

For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	PIC16LF
	Package Type	SSOP
	Mounting Type	Surface Mount
	Pin Count	28
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	3.5 kB
	Maximum Frequency	20MHz
	RAM Size	128 B
	USB Channels	0
	Number of PWM Units	1 x 10 bit
	Number of SPI Channels	1
	Number of USART Channels	1
	Typical Operating Supply Voltage	3.6 (Maximum) V
	Number of UART Channels	1
	Number of I2C Channels	1
	Number of CAN Channels	0
	Instruction Set Architecture	RISC
	Maximum Operating Temperature	+85 °C
	Number of ADC Units	1
	ADCs	11 x 8 bit
	Maximum Number of Ethernet Channels	0
	Length	10.5mm
	Width	5.6mm
	Dimensions	10.5 x 5.6 x 1.85mm
	Data Rate	5Mbit/s
	Number of PCI Channels	0
	Number of Ethernet Channels	0
	Number of LIN Channels	0
	Height	1.85mm
	Minimum Operating Temperature	-40 °C
	Pulse Width Modulation	1 (2 x 10 bit)
	Program Memory Type	Flash
