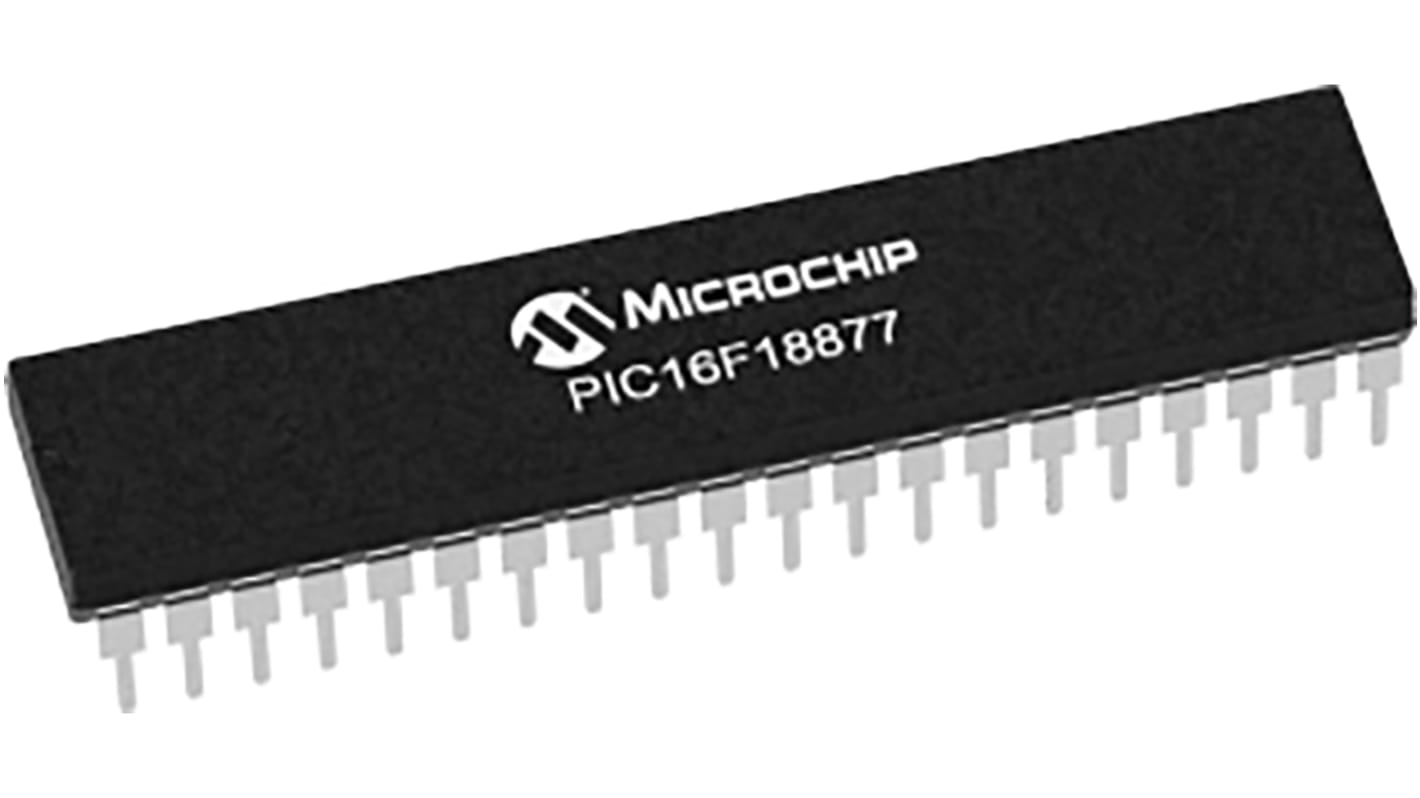

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 56 kB Flash, 40-Pin PDIP

RS Stock No.:: 177-2121
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC16F18877-E/P
ผู้ผลิต:: Microchip

Microchip, 8bit PIC, PIC16F Microcontroller, 32MHz, 56 kB Flash, 40-Pin PDIP

ไม่พร้อมจำหน่าย

RS จะไม่สต็อกสินค้านี้อีกต่อไป

RS Stock No.:: 177-2121
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: PIC16F18877-E/P
ผู้ผลิต:: Microchip

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	PIC16F
	Package Type	PDIP
	Mounting Type	Through Hole
	Pin Count	40
	Device Core	PIC
	Data Bus Width	8bit
	Program Memory Size	56 kB
	Maximum Frequency	32MHz
	RAM Size	4 kB
	USB Channels	0
	Number of PWM Units	1 x 10 bit
	Number of SPI Channels	2
	Number of USART Channels	1
	Number of UART Channels	1
	Number of I2C Channels	2
	Typical Operating Supply Voltage	5.5 (Maximum) V
	Number of CAN Channels	0
	Maximum Number of Ethernet Channels	0
	ADCs	35 x 10 bit
	Number of ADC Units	1
	Minimum Operating Temperature	-40 °C
	Length	53.09mm
	Maximum Operating Temperature	+125 °C
	Instruction Set Architecture	RISC
	Pulse Width Modulation	1 (2 x 10 bit)
	Program Memory Type	Flash
	Width	14.73mm
	Number of Ethernet Channels	0
	Dimensions	2.09 x 0.58 x 0.19in
	Number of LIN Channels	1
	Height	4.83mm
	Number of PCI Channels	0

	เลือกทั้งหมด
	Brand Microchip
	Family Name PIC16F
	Package Type PDIP
	Mounting Type Through Hole
	Pin Count 40
	Device Core PIC
	Data Bus Width 8bit
	Program Memory Size 56 kB
	Maximum Frequency 32MHz
	RAM Size 4 kB
	USB Channels 0
	Number of PWM Units 1 x 10 bit
	Number of SPI Channels 2
	Number of USART Channels 1
	Number of UART Channels 1
	Number of I2C Channels 2
	Typical Operating Supply Voltage 5.5 (Maximum) V
	Number of CAN Channels 0
	Maximum Number of Ethernet Channels 0
	ADCs 35 x 10 bit
	Number of ADC Units 1
	Minimum Operating Temperature -40 °C
	Length 53.09mm
	Maximum Operating Temperature +125 °C
	Instruction Set Architecture RISC
	Pulse Width Modulation 1 (2 x 10 bit)
	Program Memory Type Flash
	Width 14.73mm
	Number of Ethernet Channels 0
	Dimensions 2.09 x 0.58 x 0.19in
	Number of LIN Channels 1
	Height 4.83mm
	Number of PCI Channels 0

Datasheet

COO (Country of Origin):: TH

PIC16(L)F1885X/7X microcontrollers feature Analog, Core Independent Peripherals and communication peripherals, combined with eXtreme Low Power (XLP) for a wide range of general purpose and low-power applications.

Enhanced Mid-range Core with 49 Instruction, 16 Stack Levels

Adjustable Internal Oscillator (up to 32MHz)

2x 10-bit PWMs

5x Capture, Compare, PWM (CCP)

Complementary Waveform Generator (CWG)

Numerically Controlled Oscillator (NCO)

4x Configurable Logic Controller (CLC)

10-bit ADC with Computation (ADC2)

5-bit Digital to Analog Converter (DAC)

Data Signal Modulator (DSM)

Zero Cross Detect (ZCD)

Cyclical Redundancy Check (CRC/SCAN)

Windowed Watchdog Timer (WWDT)

Peripheral Pin Select (PPS)

Enhanced Power-On/Off-Reset

Low-Power Brown-Out Reset (LPBOR)

Programmable Brown-Out Reset (BOR)

In Circuit Serial Programming (ICSP)

PIC16LF18877 (1.8V – 3.6V)

PIC16F18877 (2.3V – 5.5V)
