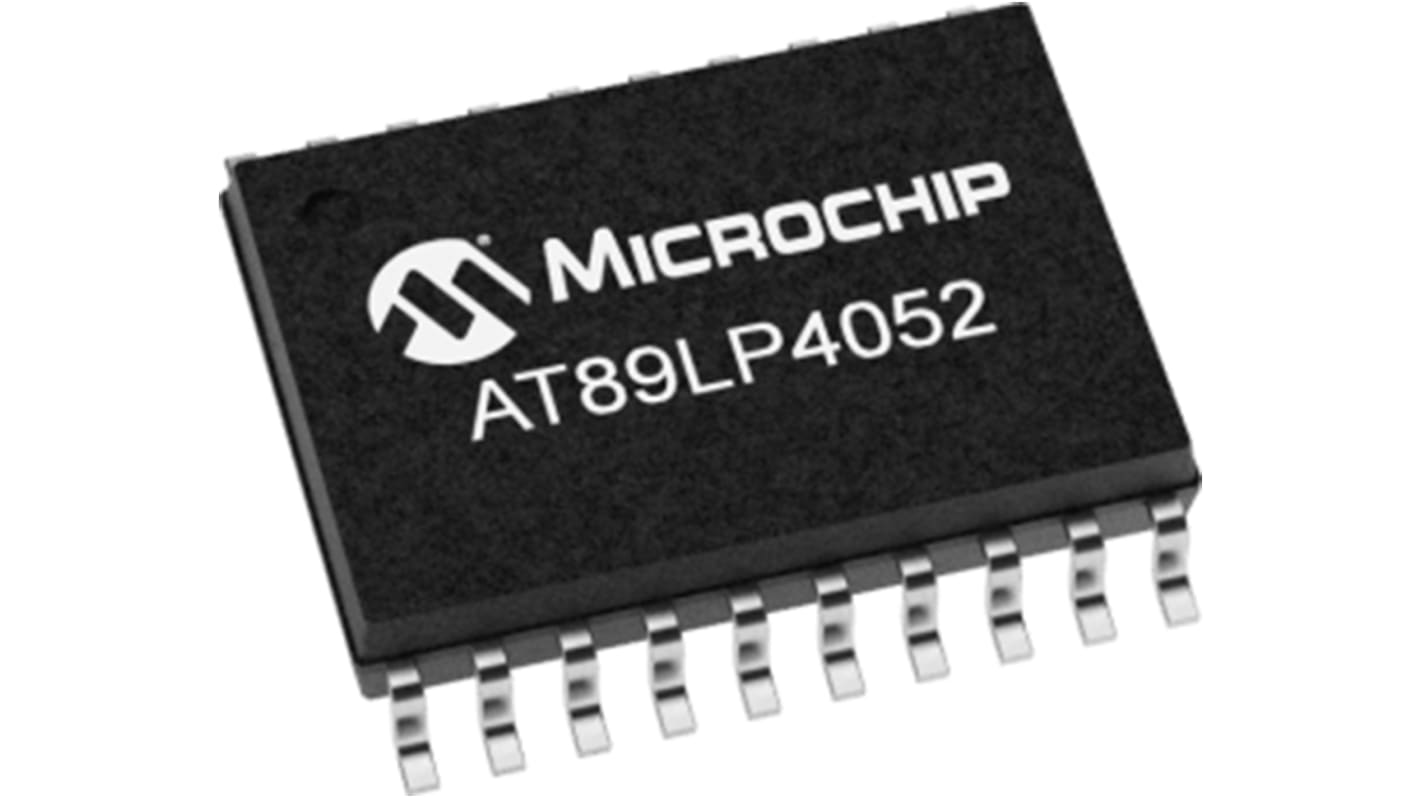

Microchip, 8bit 8051, AT89LP Microcontroller, 20MHz, 2 kB Flash, 20-Pin SOIC
- RS Stock No.:
- 177-1484
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- AT89LP4052-20SU
- ผู้ผลิต:
- Microchip
ไม่พร้อมจำหน่ายในตอนนี้
เราไม่ทราบว่าสินค้านี้จะกลับมาในสต็อกหรือไม่ เนื่องจากผู้ผลิตกำลังจะยกเลิกการผลิตสินค้านี้
- RS Stock No.:
- 177-1484
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- AT89LP4052-20SU
- ผู้ผลิต:
- Microchip
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | AT89LP | |
| Package Type | SOIC | |
| Mounting Type | Surface Mount | |
| Pin Count | 20 | |
| Device Core | 8051 | |
| Data Bus Width | 8bit | |
| Program Memory Size | 2 kB | |
| Maximum Frequency | 20MHz | |
| RAM Size | 256 B | |
| USB Channels | 0 | |
| Number of PWM Units | 1 x 8 bit | |
| Number of SPI Channels | 1 | |
| Typical Operating Supply Voltage | 5.5 (Maximum) V | |
| Number of UART Channels | 1 | |
| Number of CAN Channels | 0 | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 0 | |
| Length | 13mm | |
| ADCs | 0 | |
| Maximum Number of Ethernet Channels | 0 | |
| Instruction Set Architecture | MCS-51 | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Number of Ethernet Channels | 0 | |
| Height | 2.35mm | |
| Width | 7.6mm | |
| Dimensions | 13 x 7.6 x 2.35mm | |
| Pulse Width Modulation | 1 (1 x 8 bit) | |
เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name AT89LP | ||
Package Type SOIC | ||
Mounting Type Surface Mount | ||
Pin Count 20 | ||
Device Core 8051 | ||
Data Bus Width 8bit | ||
Program Memory Size 2 kB | ||
Maximum Frequency 20MHz | ||
RAM Size 256 B | ||
USB Channels 0 | ||
Number of PWM Units 1 x 8 bit | ||
Number of SPI Channels 1 | ||
Typical Operating Supply Voltage 5.5 (Maximum) V | ||
Number of UART Channels 1 | ||
Number of CAN Channels 0 | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 0 | ||
Length 13mm | ||
ADCs 0 | ||
Maximum Number of Ethernet Channels 0 | ||
Instruction Set Architecture MCS-51 | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Number of Ethernet Channels 0 | ||
Height 2.35mm | ||
Width 7.6mm | ||
Dimensions 13 x 7.6 x 2.35mm | ||
Pulse Width Modulation 1 (1 x 8 bit) | ||
- COO (Country of Origin):
- US
Low-power, high-performance CMOS 8-bit microcontroller with 4KB of ISP flash memory. The device uses Microchip high-density nonvolatile memory technology and is compatible with the industry-standard MCS®51 instruction set. An enhanced CPU core can fetch a single byte from memory every clock cycle and is capable of 20MIPS throughput. The new CPU core runs at a much lower speed, greatly reducing power consumption.
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
