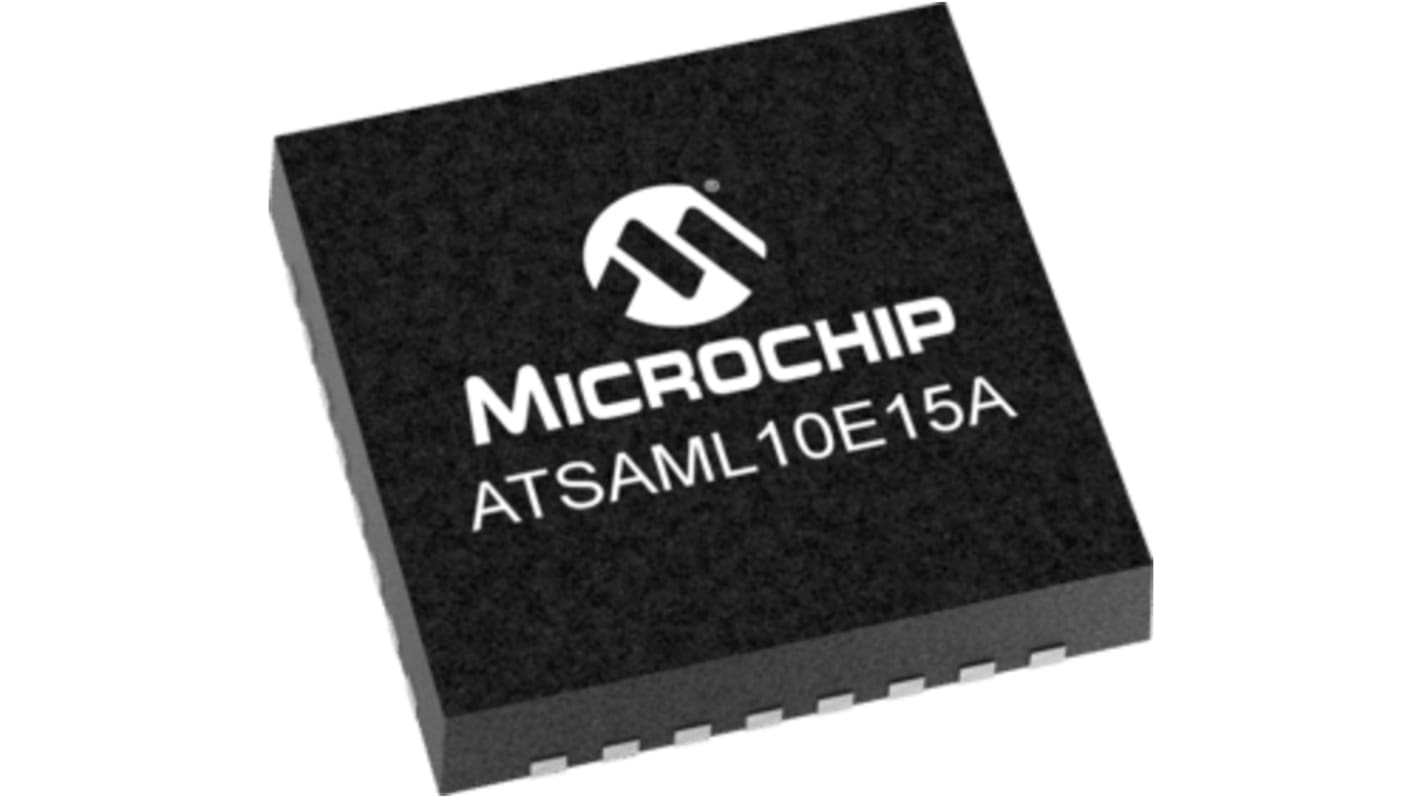

Microchip, 32bit ARM Cortex M23, SAML10 Microcontroller, 32MHz, 32 kB Flash, 32-Pin VQFN
- RS Stock No.:
- 175-9426
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAML10E15A-MU
- ผู้ผลิต:
- Microchip
ยอดรวมย่อย (1 แพ็ค แพ็คละ 5 ชิ้น)*
THB415.82
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB444.925
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- 15 ชิ้นสุดท้ายพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย | ต่อแพ็ค* |
|---|---|---|
| 5 - 120 | THB83.164 | THB415.82 |
| 125 - 240 | THB81.084 | THB405.42 |
| 245 + | THB79.836 | THB399.18 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 175-9426
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ATSAML10E15A-MU
- ผู้ผลิต:
- Microchip
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Microchip | |
| Family Name | SAML10 | |
| Package Type | VQFN | |
| Mounting Type | Surface Mount | |
| Pin Count | 32 | |
| Device Core | ARM Cortex M23 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 32 kB | |
| Maximum Frequency | 32MHz | |
| RAM Size | 8 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 0 | |
| Number of SPI Channels | 3 | |
| Number of CAN Channels | 0 | |
| Typical Operating Supply Voltage | 1.62 → 3.63 V | |
| Number of I2C Channels | 2 | |
| Number of UART Channels | 0 | |
| Number of USART Channels | 1 | |
| Length | 5mm | |
| Maximum Number of Ethernet Channels | 0 | |
| Number of ADC Units | 1 | |
| Automotive Standard | AEC-Q100 | |
| Number of Ethernet Channels | 0 | |
| Maximum Operating Temperature | +125 °C | |
| Number of PCI Channels | 0 | |
| ADCs | 10 x 12 bit | |
| Number of LIN Channels | 1 | |
| Height | 0.95mm | |
| Instruction Set Architecture | MCU | |
| Minimum Operating Temperature | -40 °C | |
| Pulse Width Modulation | 1 (2 Channel) | |
| Dimensions | 5 x 5 x 0.95mm | |
| Width | 5mm | |
| Program Memory Type | Flash | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Microchip | ||
Family Name SAML10 | ||
Package Type VQFN | ||
Mounting Type Surface Mount | ||
Pin Count 32 | ||
Device Core ARM Cortex M23 | ||
Data Bus Width 32bit | ||
Program Memory Size 32 kB | ||
Maximum Frequency 32MHz | ||
RAM Size 8 kB | ||
USB Channels 0 | ||
Number of PWM Units 0 | ||
Number of SPI Channels 3 | ||
Number of CAN Channels 0 | ||
Typical Operating Supply Voltage 1.62 → 3.63 V | ||
Number of I2C Channels 2 | ||
Number of UART Channels 0 | ||
Number of USART Channels 1 | ||
Length 5mm | ||
Maximum Number of Ethernet Channels 0 | ||
Number of ADC Units 1 | ||
Automotive Standard AEC-Q100 | ||
Number of Ethernet Channels 0 | ||
Maximum Operating Temperature +125 °C | ||
Number of PCI Channels 0 | ||
ADCs 10 x 12 bit | ||
Number of LIN Channels 1 | ||
Height 0.95mm | ||
Instruction Set Architecture MCU | ||
Minimum Operating Temperature -40 °C | ||
Pulse Width Modulation 1 (2 Channel) | ||
Dimensions 5 x 5 x 0.95mm | ||
Width 5mm | ||
Program Memory Type Flash | ||
- COO (Country of Origin):
- US
ARM Cortex®-M23
32 MHz (2.62 CoreMark/MHz and up to 31 DMIPS)
Single-cycle hardware multiplier
Hardware divider
Nested Vector Interrupt Controller (NVIC)
Memory Protection Unit (MPU)
Operating Voltage Range:
1.62V to 3.63V
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
