ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Microchip
	Family Name	Atmel AVR
	Package Type	TQFP
	Mounting Type	Surface Mount
	Pin Count	64
	Device Core	AVR32UC
	Data Bus Width	32bit
	Program Memory Size	512 kB
	Maximum Frequency	60MHz
	RAM Size	96 kB
	USB Channels	1 x Device, 1 x Host
	Number of PWM Units	1 x 20 bit
	Number of SPI Channels	4
	Number of I2C Channels	1
	Number of USART Channels	3
	Typical Operating Supply Voltage	3.3 V
	Height	1.05mm
	Width	10mm
	Program Memory Type	Flash
	Minimum Operating Temperature	-40 °C
	Pulse Width Modulation	1 (7 x 20 bit)
	Dimensions	10 x 10 x 1.05mm
	Instruction Set Architecture	RISC
	Maximum Operating Temperature	+85 °C
	ADCs	8 x 10 bit
	Length	10mm
	Number of ADC Units	1

	เลือกทั้งหมด
	Brand Microchip
	Family Name Atmel AVR
	Package Type TQFP
	Mounting Type Surface Mount
	Pin Count 64
	Device Core AVR32UC
	Data Bus Width 32bit
	Program Memory Size 512 kB
	Maximum Frequency 60MHz
	RAM Size 96 kB
	USB Channels 1 x Device, 1 x Host
	Number of PWM Units 1 x 20 bit
	Number of SPI Channels 4
	Number of I2C Channels 1
	Number of USART Channels 3
	Typical Operating Supply Voltage 3.3 V
	Height 1.05mm
	Width 10mm
	Program Memory Type Flash
	Minimum Operating Temperature -40 °C
	Pulse Width Modulation 1 (7 x 20 bit)
	Dimensions 10 x 10 x 1.05mm
	Instruction Set Architecture RISC
	Maximum Operating Temperature +85 °C
	ADCs 8 x 10 bit
	Length 10mm
	Number of ADC Units 1

COO (Country of Origin):: US

32-Bit AVR UC3 Microcontrollers

AVR32 is a high-performance 32-bit RISC microprocessor core, designed for cost-sensitive embedded applications, with particular emphasis on low power consumption, high code density and high performance. The processor implements a Memory Protection Unit (MPU) and a fast and flexible interrupt controller for supporting modern operating systems and real-time operating systems. Higher computation capabilities are achievable using a rich set of DSP instructions.

To fully exploit the power of a 32-bit architecture, the AVR32 is not binary compatible with earlier AVR architectures. In order to achieve high code density, the instruction format is flexible providing both compact 16-bit and extended 32-bit instructions. While most instructions are 16-bit, powerful 32-bit instructions are implemented to further increase performance. Compact and extended instructions can be freely mixed in the instruction stream.

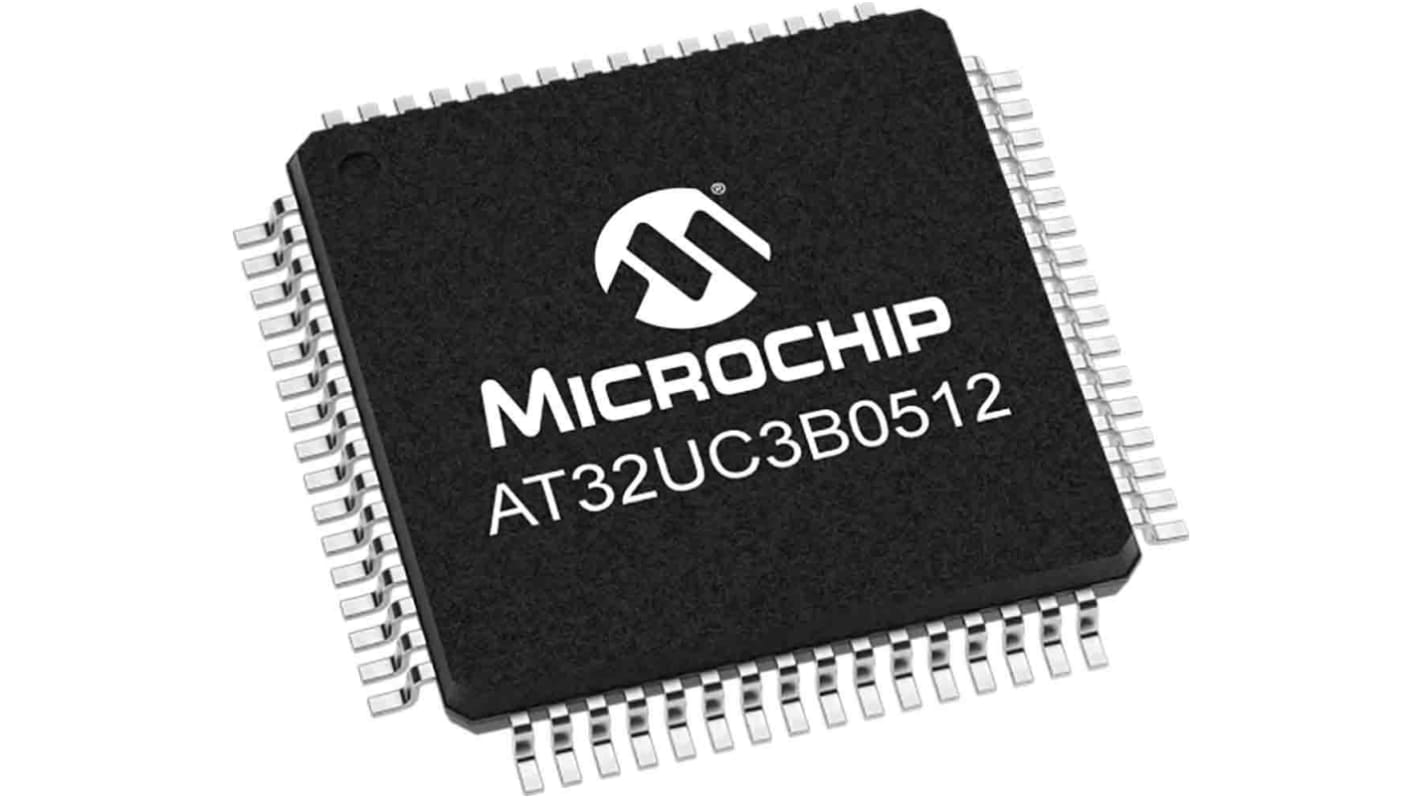

Microchip, 32bit AVR32UC, Atmel AVR Microcontroller, 60MHz, 512 kB Flash, 64-Pin TQFP

32-Bit AVR UC3 Microcontrollers
