STMicroelectronics, 32bit ARM Cortex M3, STM32F1 Microcontroller, 24MHz, 128 kB Flash, 64-Pin LQFP
- RS Stock No.:
- 168-7330
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F100RBT6B
- ผู้ผลิต:
- STMicroelectronics

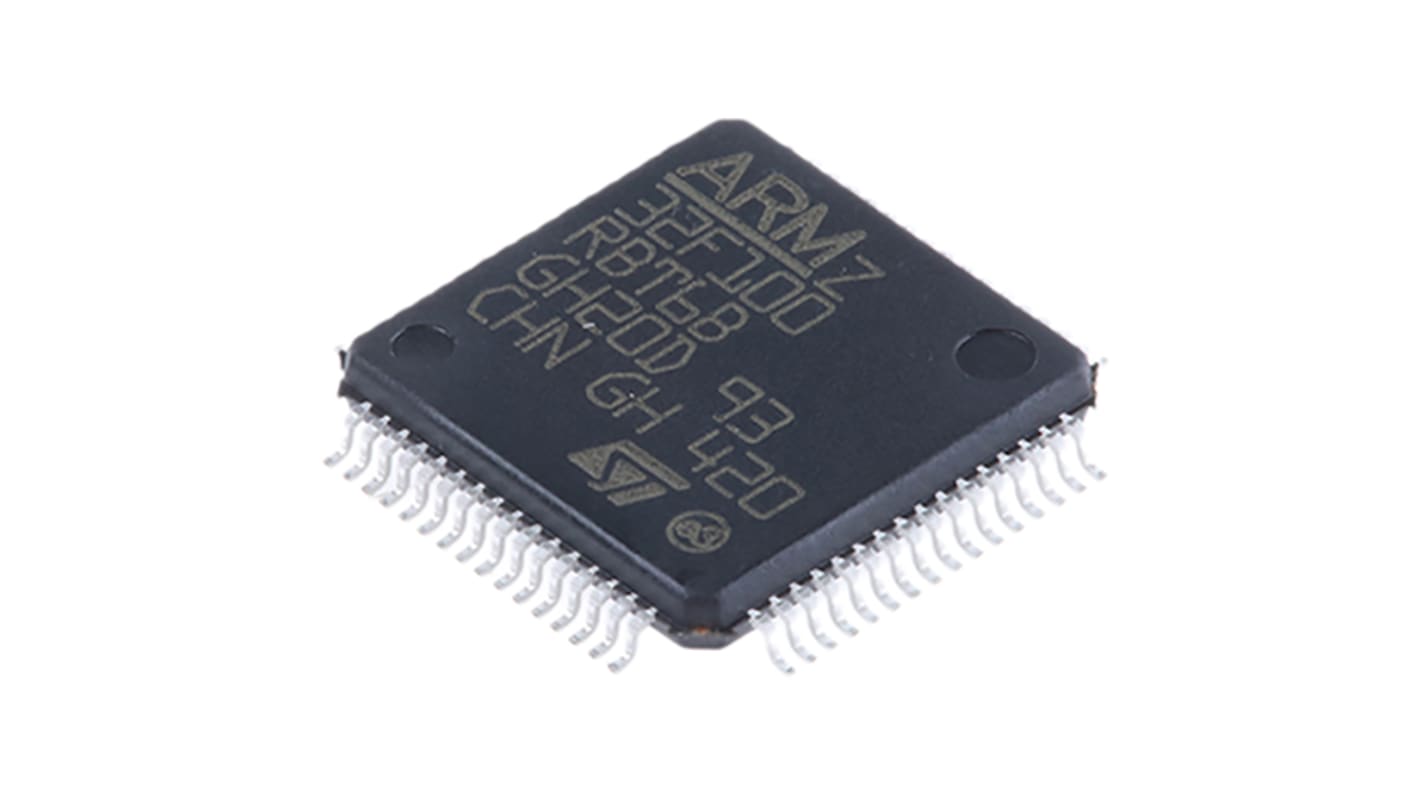

รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ยอดรวมย่อย (1 ถาด ถาดละ 160 ชิ้น)*
THB24,841.44
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB26,580.32
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
- เพิ่มอีก 1,760 ชิ้นจะส่งได้หลังจากวันที่ 08 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ
ชิ้น | ต่อหน่วย | ต่อถาด* |
|---|---|---|
| 160 - 160 | THB155.259 | THB24,841.44 |
| 320 - 480 | THB151.843 | THB24,294.88 |
| 640 + | THB148.582 | THB23,773.12 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 168-7330
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STM32F100RBT6B
- ผู้ผลิต:
- STMicroelectronics
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | STMicroelectronics | |
| Family Name | STM32F1 | |
| Package Type | LQFP | |
| Mounting Type | Surface Mount | |
| Pin Count | 64 | |
| Device Core | ARM Cortex M3 | |
| Data Bus Width | 32bit | |
| Program Memory Size | 128 kB | |
| Maximum Frequency | 24MHz | |
| RAM Size | 8 kB | |
| USB Channels | 0 | |
| Number of PWM Units | 7 x 16 bit | |
| Number of SPI Channels | 2 | |
| Number of I2C Channels | 2 | |
| Number of CAN Channels | 0 | |
| Number of UART Channels | 0 | |
| Number of USART Channels | 3 | |
| Typical Operating Supply Voltage | 2 → 3.6 V | |
| Instruction Set Architecture | RISC | |
| Minimum Operating Temperature | -40 °C | |
| Program Memory Type | Flash | |
| Dimensions | 10 x 10 x 1.4mm | |
| Pulse Width Modulation | 3 (16 bit), 3 (4 x 16 bit), 6 x 16 bit | |
| Number of PCI Channels | 0 | |
| Number of Ethernet Channels | 0 | |
| Height | 1.4mm | |
| Number of LIN Channels | 0 | |
| Width | 10mm | |
| Maximum Operating Temperature | +85 °C | |
| Number of ADC Units | 1 | |
| Length | 10mm | |
| ADCs | 16 x 12 bit | |
| Maximum Number of Ethernet Channels | 0 | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand STMicroelectronics | ||
Family Name STM32F1 | ||
Package Type LQFP | ||
Mounting Type Surface Mount | ||
Pin Count 64 | ||
Device Core ARM Cortex M3 | ||
Data Bus Width 32bit | ||
Program Memory Size 128 kB | ||
Maximum Frequency 24MHz | ||
RAM Size 8 kB | ||
USB Channels 0 | ||
Number of PWM Units 7 x 16 bit | ||
Number of SPI Channels 2 | ||
Number of I2C Channels 2 | ||
Number of CAN Channels 0 | ||
Number of UART Channels 0 | ||
Number of USART Channels 3 | ||
Typical Operating Supply Voltage 2 → 3.6 V | ||
Instruction Set Architecture RISC | ||
Minimum Operating Temperature -40 °C | ||
Program Memory Type Flash | ||
Dimensions 10 x 10 x 1.4mm | ||
Pulse Width Modulation 3 (16 bit), 3 (4 x 16 bit), 6 x 16 bit | ||
Number of PCI Channels 0 | ||
Number of Ethernet Channels 0 | ||
Height 1.4mm | ||
Number of LIN Channels 0 | ||
Width 10mm | ||
Maximum Operating Temperature +85 °C | ||
Number of ADC Units 1 | ||
Length 10mm | ||
ADCs 16 x 12 bit | ||
Maximum Number of Ethernet Channels 0 | ||
- COO (Country of Origin):
- MY
STM32F100 Value Line Series Microcontrollers, STMicroelectronics
STMicroelectronics Advanced ARM 32-bit processor low and medium density value line with up to 512 KB Flash, timers, ADC, DAC and comm interface also available in different packages. ST’s STM32F100 microcontroller family is suitable in a wide area such as application control and user interfaces; medical and handheld equipment; PC and gaming peripherals; GPS platforms and industrial applications.
Commercial & Industrial Temperatures
Low voltage: 2 V to 3.6 V
For these non-cancellable (NC), and non-returnable (NR) products, Terms and Conditions apply.
• Excellent real-time behaviour
• Oustanding power efficiency
• Superior and innovative peripherals
• Maximum integration
• Cross family pin-to-pin, peripheral and software compatibility
