    Infineon IMOTION MADK Motor Driver Evaluation Kit EVALM113020565DTOBO1

    RS Stock No.:
    123-7186
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    EVALM113020565DTOBO1
    ผู้ผลิต / Manufacturer:
    Infineon
    Infineon
    ดูหมวดหมู่นี้
    ผลิตภัณฑ์ที่เลิกผลิตแล้ว
    RS Stock No.:
    123-7186
    หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
    EVALM113020565DTOBO1
    ผู้ผลิต / Manufacturer:
    Infineon

    ข้อมูลทางเทคนิค / Technical Data Sheets


    Legislation and Compliance


    รายละเอียดสินค้า / Product Details

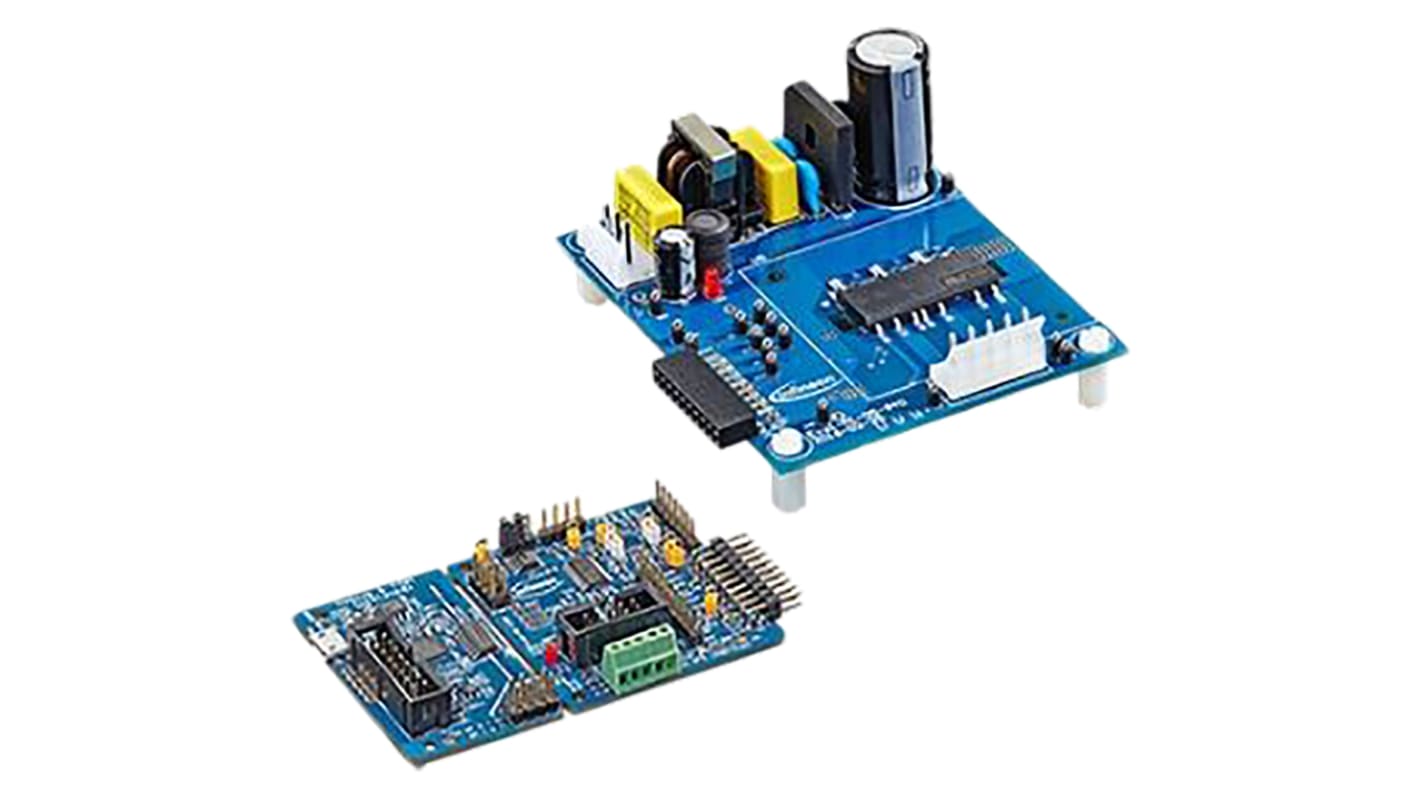

    Evaluation Kit - 3 Phase Motor Drives,iMOTION MADK M1 Platform


    The Infineon Technologies Evaluation kits for 3 phase motor drive systems all have the iMOTION MADK M1 platform interface. The platform is a complete and scalable system for motor drives. The kit comes complete with the XMC1302 MCU control card and the relevant μPIM power board. The MADK platform kits are so easy to use with the debug interface on the control card, power stage and software available. They are intended for electrical goods, room air conditioning and motor control drives.


    123-7186 EVAL-M1-05-65D (2.6A, 500 V) / 230 V Grid / IRSM505-065DA2 μPIM DIP
    123-7187 EVAL-M1-05-84D (7A, 250 V) /110 V Grid / IRSM505-084DA2 μPIM DIP
    123-7188 EVAL-M1-36-45A (4A, 500 V) / 230 V Grid / IRSM836-045MA μPIM
    123-7189 EVAL-M1-36-84A (7A, 250 V) /110 V Grid / IRSM836-084MA μPIM

    The measurement points give easy access for standard oscilloscope probes
    RoHS compliant

    Infineon Technologies also offer the 123-7185 EVALM1 1302, an XMC1302 motor control board. This board has many features including an isolated J-Link interface, debugger, sensor less motor control, μC probe based GUI and hardware for Hall or 3D magnetic sensors. This board is supported by the XMC supported software Dave development suite.



    XMC1000 Family 32-Bit Microcontroller ARM Cortex-M0


    คุณสมบัติ / Specifications

    คุณสมบัติValue
    ClassificationEvaluation Kit
    Kit NameIMOTION MADK
    TechnologyMotor Driver
    Device CoreARM Cortex M0
    Processor Family NameARM
    Processor Part NumberXMC1302
    Processor TypeMCU
    ผลิตภัณฑ์ที่เลิกผลิตแล้ว
