STMicroelectronics Biosensor Evaluation Kit Evaluation Board STEVAL-MKI250KA

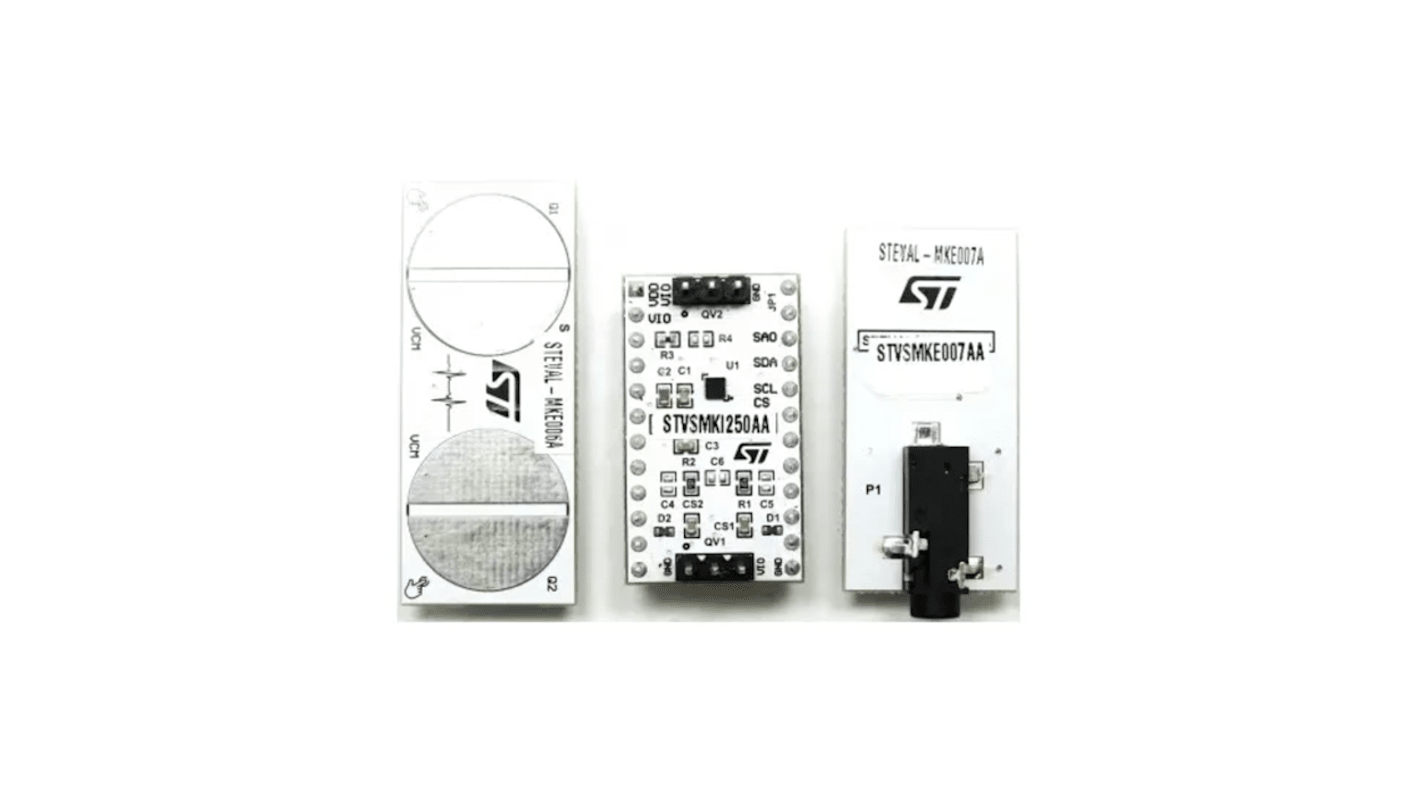

The STMicroelectronics demonstration kit features a specialized PCB designed for biopotential signal acquisition, incorporating a biosensor with a vertical analog front end (vAFE) and an ultralow power accelerometer with AI capabilities and antialiasing . The kit includes a primary board with the biosensors complete pinout and essential decoupling capacitors for power stabilization on the VDD and VDDIO lines, along with electrode boards for signal acquisition. It supports measurements via a 3.5 mm phone jack connection and offers compatibility with various mother boards for flexible configurations.

Complete ST1VAFE3BX pinout for a standard DIL 24 socket
Fully compatible with STEVAL-MKI109V3 and STEVAL-MKI109D motherboards
A high performance 32 bit microcontroller bridges the sensor and PC
Enabling interaction through MEMS studio or custom software for bipotential exploration
The kit allows you to show the functionalities of the biopotential device as for example the ECG signal
ECG monitoring
RoHS compliant
