คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Schneider Electric
	Range	Preventa
	Series	XUSL4E
	Component Type	Receiver, Transmitter
	Minimum Scanning Distance	3m
	Maximum Scanning Distance	10 m, 20 m
	Safety Type	4
	SIL IEC 61508	3
	PL EN ISO 13849-1	e
	Peak Wavelength	950nm
	Number of Beams	4
	Maximum Response Time	2.5 ms
	Terminal Type	5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver)
	Dimensions	31 x 29.4 x 1053 mm
	Protective Height	910mm
	Features	2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs
	Length	31mm
	Height	1053mm
	Width	29.4mm
	Application	Body

	เลือกทั้งหมด
	Brand Schneider Electric
	Range Preventa
	Series XUSL4E
	Component Type Receiver, Transmitter
	Minimum Scanning Distance 3m
	Maximum Scanning Distance 10 m, 20 m
	Safety Type 4
	SIL IEC 61508 3
	PL EN ISO 13849-1 e
	Peak Wavelength 950nm
	Number of Beams 4
	Maximum Response Time 2.5 ms
	Terminal Type 5-Pin M12 Male Connector (Transmitter), 8-Pin M12 Male Connector (Receiver)
	Dimensions 31 x 29.4 x 1053 mm
	Protective Height 910mm
	Features 2 PNP Output, Automatic/Manual Restart, Multi-Colour LEDs
	Length 31mm
	Height 1053mm
	Width 29.4mm
	Application Body

Datasheet

สถานะRoHS: ไม่สามารถใช้ได้

COO (Country of Origin):: IT

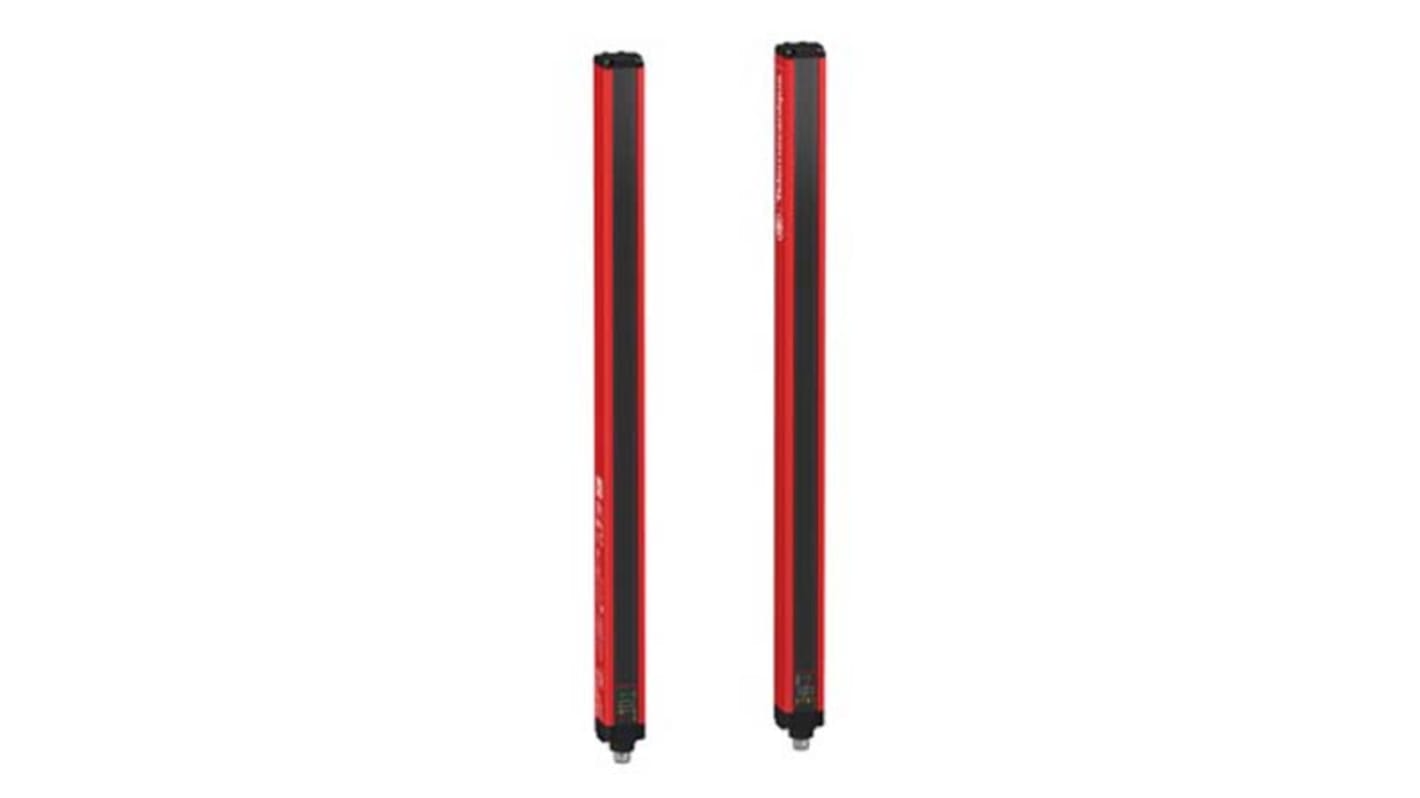

Schneider Preventa XUSL Safety Light Beams

Telemecanique safety light curtains from the XUSL Series. Typical applications would include robotic systems, assembly and packaging lines, welding equipment and machine tools. All models are highly reliable and excellent quality.

Features & Benefits

Automatic or Manual start
IP65/67 rated

Perimeter and Access Guard

Schneider Electric XUSL4E Series Preventa Light Beam Receiver, Transmitter, 4 Beam(s), 10 m, 20 m Max Range

Schneider Preventa XUSL Safety Light Beams

Features & Benefits
