Panel Mount Indicator Bulb Holder, 12.7mm Panel Hole Diameter

  • RS Stock No. 565-119
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. T0063AOFAB
  • ผู้ผลิต / Manufacturer Arcolectric
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): TN
รายละเอียดสินค้า / Product Details

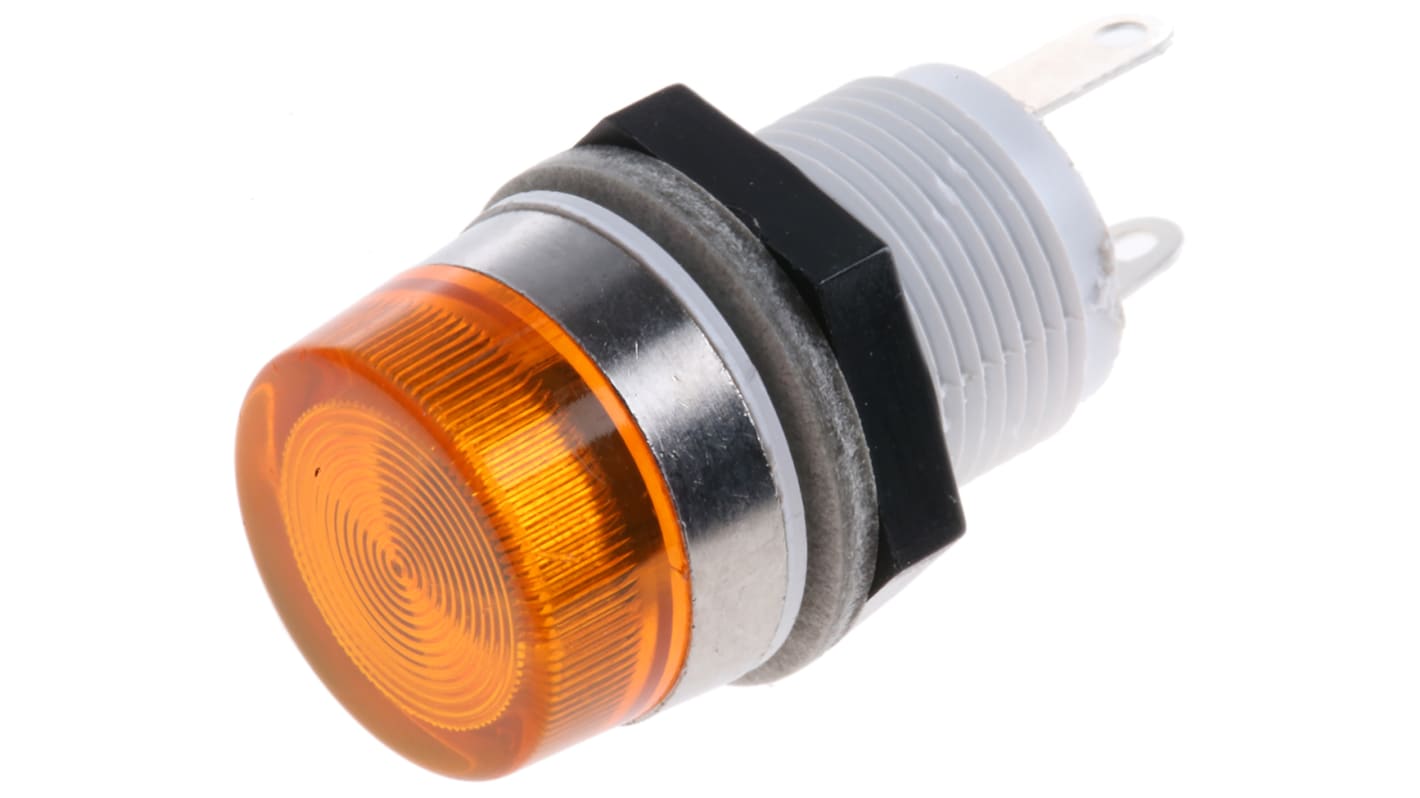

Chrome Bezel Panel Indicator

Supplied complete with adaptors to enable either T1 LES or T1 Miniature Flange lamp to be used.,White glass-loaded nylon body.,Polycarbonate lens provides a uniformly illuminated area. The chrome-plated bezel is connected to one side of the lamp but is fully insulated from the panel.

Note

Not suitable for use above 50V.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Lampholder Type Panel Mount
Termination Type Tabbed
Diameter 14.7mm
Panel Hole Diameter 12.7mm
Panel Thickness 9.6mm
399 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 103.28
(exc. VAT)
THB 110.51
(inc. VAT)
Units
Per unit
1 - 24
THB103.28
25 - 49
THB92.02
50 - 99
THB80.76
100 - 249
THB69.51
250 +
THB57.76
