Name: Eurotherm 6100A, 12 Input Channels, 3 Output Channels, Paperless Chart Recorder Measures Current, Millivolt,
Brand: Eurotherm
SKU: 812-3906
Price: 153841.07 THB
Availability: Discontinued

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Eurotherm
	Chart Type	Paperless
	Number of Inputs	12
	Parameter Measured	Current, Millivolt, Resistance, Voltage
	Maximum Current Measurement	20mA
	Number of Outputs	3
	Maximum Resistance Measurement	6 kΩ
	Maximum Operating Voltage	265V ac
	Recorder Input Type	Thermocouple
	Maximum Voltage Measurement	10V
	Model Number p	6100A
	IP Rating	IP66
	Best Voltage Measurement Accuracy	0.1 %
	Battery Type	Lithium, Poly-Carbonmonofluoride
	Minimum Operating Voltage	85V ac
	Weight	3kg
	Battery Life	1 yr
	Best Current Measurement Accuracy	0.1 %
	Height	144mm
	Dimensions	144 x 246.5 x 144mm
	Resistance Measurement Resolution	148mΩ
	Length	144mm
	Power Source	Battery
	Width	246.5mm

	เลือกทั้งหมด
	Brand Eurotherm
	Chart Type Paperless
	Number of Inputs 12
	Parameter Measured Current, Millivolt, Resistance, Voltage
	Maximum Current Measurement 20mA
	Number of Outputs 3
	Maximum Resistance Measurement 6 kΩ
	Maximum Operating Voltage 265V ac
	Recorder Input Type Thermocouple
	Maximum Voltage Measurement 10V
	Model Number p 6100A
	IP Rating IP66
	Best Voltage Measurement Accuracy 0.1 %
	Battery Type Lithium, Poly-Carbonmonofluoride
	Minimum Operating Voltage 85V ac
	Weight 3kg
	Battery Life 1 yr
	Best Current Measurement Accuracy 0.1 %
	Height 144mm
	Dimensions 144 x 246.5 x 144mm
	Resistance Measurement Resolution 148mΩ
	Length 144mm
	Power Source Battery
	Width 246.5mm

COO (Country of Origin):: PL

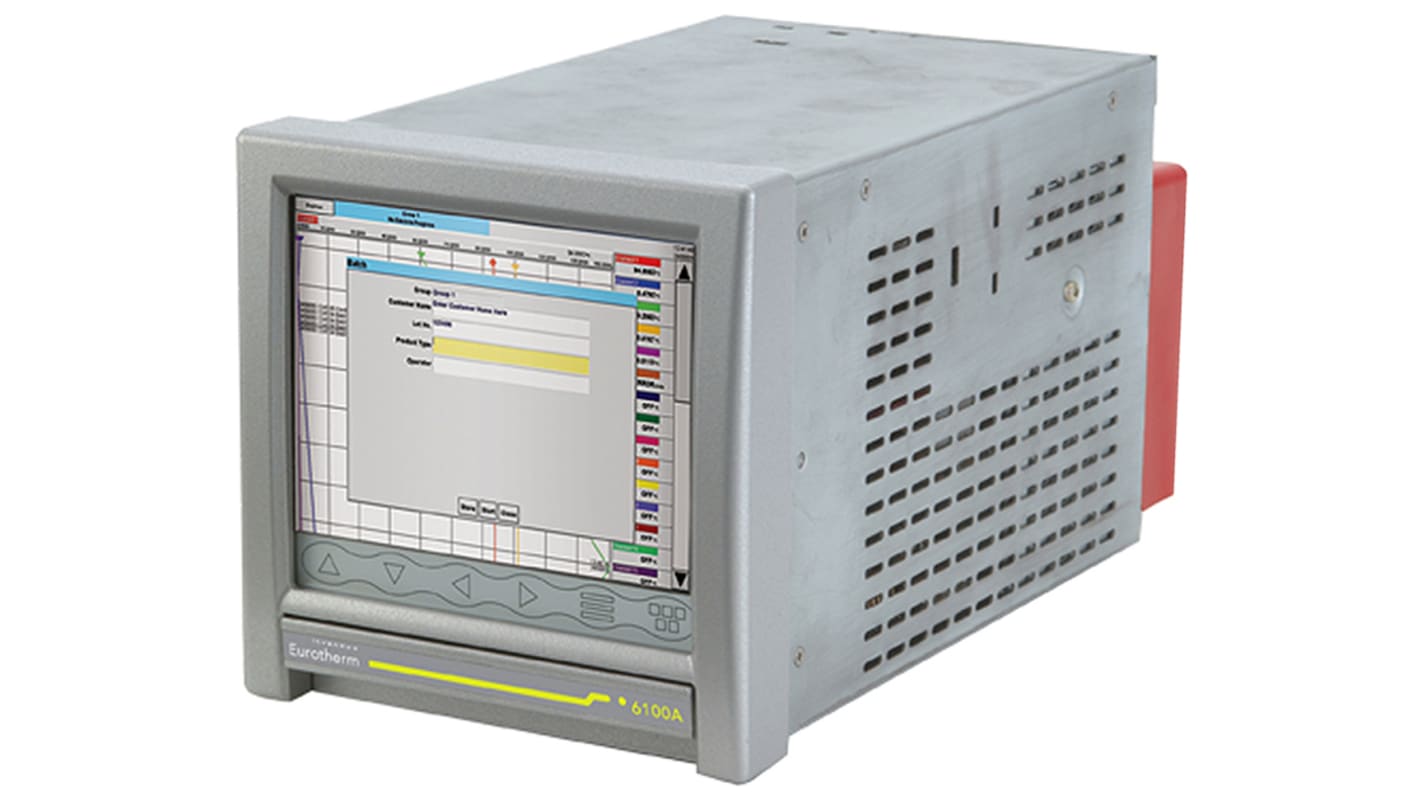

6100A Series - Paperless Graphic Chart Recorder

The 6100A Chart Recorder offers unrivalled input accuracy with a 125ms total sample rate for up to 18 input channels. Input channels are freely configurable to suit your process requirements. Each instrument has an intuitive, touch screen display to enable operators to clearly view process data in varying formats.

All have onboard Flash data storage capability, Ethernet communication and choice of Compact Flash or SD Card. Data is stored in a tamper resistant binary format that can be used for secure, long term records of your process.

5.5" 1/4VGA touchscreen display
Custom graphic displays
Secure data recording
Up to 18 universal input channels
Adaptive recording
Math functions, totalizers, timers, counters
Groups
Time synchronization (SNTP)
Electronic signatures
Security Manager
Batch functionality: 812-3902 & 812-3915
Audit Trail functionality: 812-3906 & 812-3918

Eurotherm 6100A, 12 Input Channels, 3 Output Channels, Paperless Chart Recorder Measures Current, Millivolt,

6100A Series - Paperless Graphic Chart Recorder
