Schneider Electric Celebrating A century of Innovation and Leadership – TeSys 100 Years

For a century, TeSys motor controls have driven the industry with innovations in motor protection, monitoring, and control. It started with the invention of the industry’s first BAR contactor in 1924, followed by the first enclosed motor starter, the first modular contactor, and the first modular three-in-one motor starter. Today, the TeSys name is synonymous with best-in-class safety and reliability, plug-and-play architecture, and flexible functionality. And now, as digitization heralds a new era of motor control performance and capability, TeSys is ready to lead the industry again.

Advancing motor control performance. Again.

New TeSys motor control solutions leverage digitization and electrification to enable load management, source management, and preventive maintenance while lowering the total cost of ownership for customers and end users. From the design and build phase through operation and maintenance, TeSys provides a holistic lifecycle solution that advances advanced asset management and energy efficiency.

Industry-leading protection with built-in arc flash safeguards and complete cybersecurity

Best-in-class reliability with proven functionality built on 100 years of experience in protection relays

Ease of installation, use, and maintenance with simple integration and engineering reducing total cost of ownership

Advanced connectivity with digital tools to make everyday operation simpler

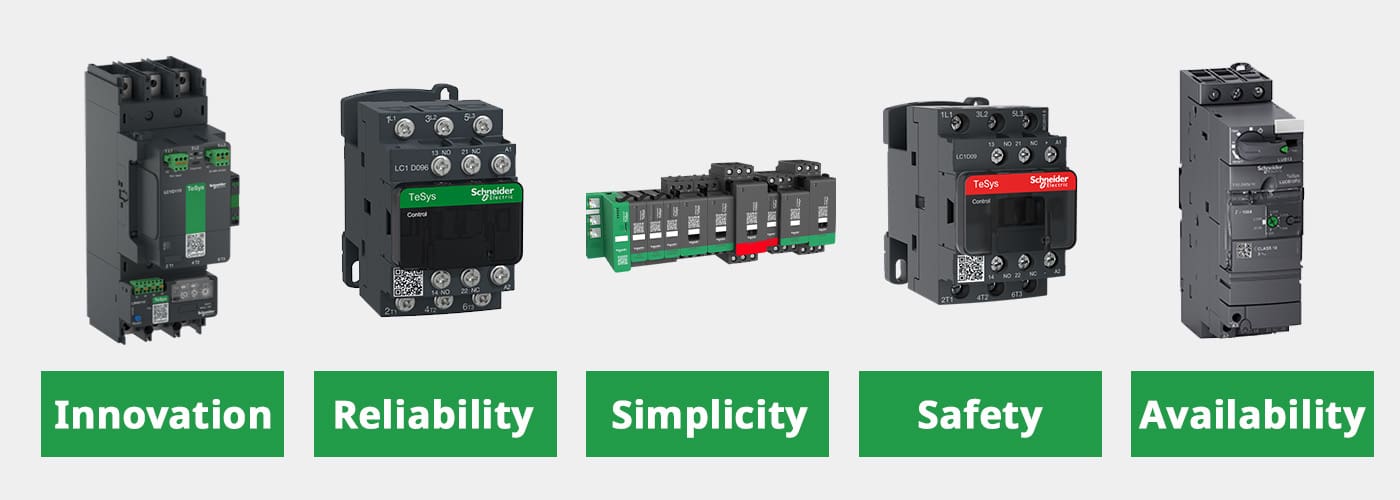

Featured Products from TeSys Range

Schneider Electric Contactor, TeSys Deca, 3P(3NO), AC-3/AC-3e, <=440V, 9A, 24V DC coil, screw clamp terminals

TeSys Deca contactor, 3 poles, for motor control applications up to 9A/690V AC-3/3e (4kW@400V). It provides a 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts, connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine).

Shop now

Schneider Electric Auxiliary contact block, TeSys Deca, 2NO+2NC, front mounting, screw clamp terminals

TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NO+2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by screw clamp terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Shop now

Schneider Electric High power contactor, TeSys Giga, 3 pole (3NO), AC-3/AC-3e <=440V 225A, advanced version

TeSys Giga high power contactor, equipped with 200-500V AC/DC wide band low consumption electronic coil, PLC output control and embedded with highly reliable 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications built with high reliability delivering mechanical durability up to 8 million cycles. Contact Wear Diagnosis (CWD) is a standard function, It continuously monitors and provide feedback through healthy and alarm conditions by an LED indicator.

Shop now

Schneider Electric Motor starter, TeSys island, 15A at AC-1, 9A at AC-3, 4kW, 5hp, DOL type

TeSys island direct starter, 3 poles, 9A/690V. Connected to a TPRBC bus coupler it controls, protects and monitors loads up to 9A and motors up to 4kW@400V / 5hp@480V. It provides motor protection functions including thermal overload (setting 0.18-9A, tripping class 5-30), phase loss, phase unbalance and reversal, long start (stall), locked rotor (jam), rapid cycle lockout, ground current detection. Mounting on DIN rail together with the other modules of the TeSys island configuration.

Shop now

Schneider Electric Motor circuit breaker, TeSys Deca, 3P, 4 to 6.3A, thermal magnetic, screw clamp terminals

TeSys GV motor circuit breaker, 3 poles (3P), 6.3A/690V, for 3-phase motor applications 2.2kW@400V. It provides a thermal-magnetic protection with a thermal setting range 4-6.3A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Shop now

Schneider Electric Contactor, TeSys K, 3P, AC-3/AC-3e,440V 6A, aux. 1NO, 230V AC coil, screw clamp terminals

TeSys K contactor, 3 poles (3NO), for motor control applications up to 6A/690V AC-3 (2.2kW@400V). It provides a 230V 50/60Hz AC coil, 1NO built-in auxiliary contact, connection by screw clamp terminals. For operating rates until 600 cycles/hour and environments until 50°C, it procures reliability and durability to standard applications. Very compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).

Shop now

The benefits customers are looking for

With the right combination of new motor control technologies, OEMs, panel builders, system integrators and end users can achieve significant business benefits, including:

Reduced carbon emissions: Electrifying and digitizing motor operations can reduce energy consumption by up to 30%, dramatically decreasing carbon emissions in energy-intensive industries.

High efficiency: New high-efficiency components like contactors and variable frequency drives (VFDs) help boost overall electrical system efficiency.

Increased power availability: Digitizing motor controls enables remote monitoring of power load and power quality data, facilitating diagnostics and fixes, allowing predictive maintenance, and improving production continuity.

Enhanced safety: Motor-related applications can include both operator and device safety components such as motor start and stop controls, safety controllers, and safety interlock switches.

Better price performance: Optimized motor management can deliver a 20% return on investment, 30% reduction in solution costs, and four-times faster recovery time after a motor stop.²Smart motor systems can prolong motor lifetimes, as well.

² Based on Schneider Electric internal field studies
