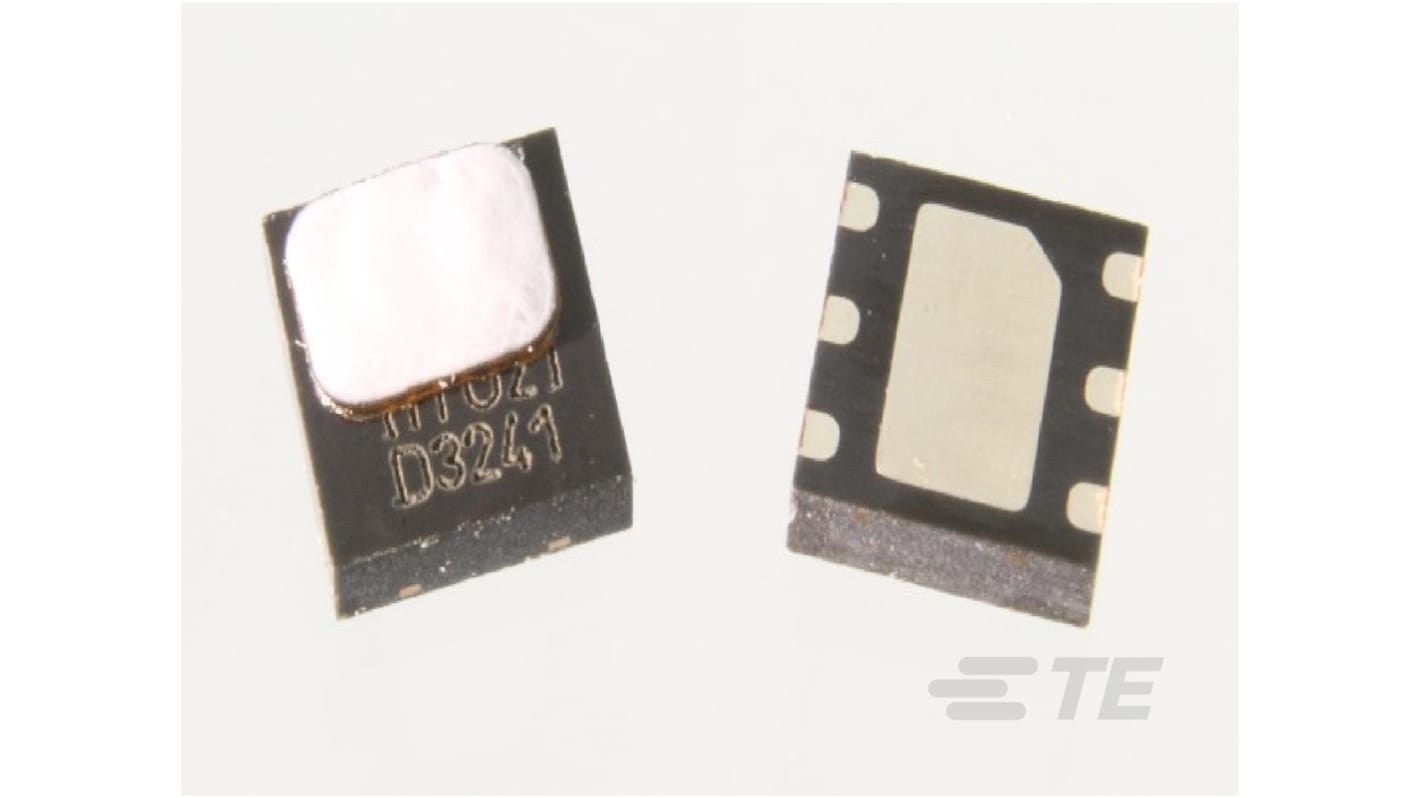

TE Connectivity Temperature & Humidity Sensor, Digital Output, Surface Mount, I2C, ±0.3 °C, ±2%RH, 6 Pins
- RS Stock No.:
- 187-9316
- หมายเลขชิ้นส่วนของผู้ผลิต:
- HPP845E131R5
- ผู้ผลิต:
- TE Connectivity
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
- RS Stock No.:
- 187-9316
- หมายเลขชิ้นส่วนของผู้ผลิต:
- HPP845E131R5
- ผู้ผลิต:
- TE Connectivity
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | TE Connectivity | |
| Output Type | Digital | |
| Interface Type | I2C | |
| Accuracy | ±0.3 °C, ±2%RH | |
| Mounting Type | Surface Mount | |
| Pin Count | 6 | |
| Operating Temperature Range | -40 to +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Supply Voltage | 1.5 V | |
| Maximum Operating Supply Voltage | 3.6 V | |
| Package Type | DFN | |
| Length | 3mm | |
| Height | 0.9mm | |
| Width | 3mm | |
| Dimensions | 3 x 3 x 0.9mm | |
| Resolution | 0.01 °C, 0.04 %RH | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand TE Connectivity | ||
Output Type Digital | ||
Interface Type I2C | ||
Accuracy ±0.3 °C, ±2%RH | ||
Mounting Type Surface Mount | ||
Pin Count 6 | ||
Operating Temperature Range -40 to +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Supply Voltage 1.5 V | ||
Maximum Operating Supply Voltage 3.6 V | ||
Package Type DFN | ||
Length 3mm | ||
Height 0.9mm | ||
Width 3mm | ||
Dimensions 3 x 3 x 0.9mm | ||
Resolution 0.01 °C, 0.04 %RH | ||
Full interchangeability with no calibration required in standard conditions
Instantaneous desaturation after long periods in saturation phase
Compatible with automatized assembly processes, including Pb free and reflow processes
Individual marking for traceability
DFN type package
Relative Humidity and Temperature Digital Output, I²C interface
Fully calibrated
Lead free sensor, reflow solderable
Low power consumption
Fast response time
Applications
Home Appliance
Medical
Printers
Humidifier
Instantaneous desaturation after long periods in saturation phase
Compatible with automatized assembly processes, including Pb free and reflow processes
Individual marking for traceability
DFN type package
Relative Humidity and Temperature Digital Output, I²C interface
Fully calibrated
Lead free sensor, reflow solderable
Low power consumption
Fast response time
Applications
Home Appliance
Medical
Printers
Humidifier
