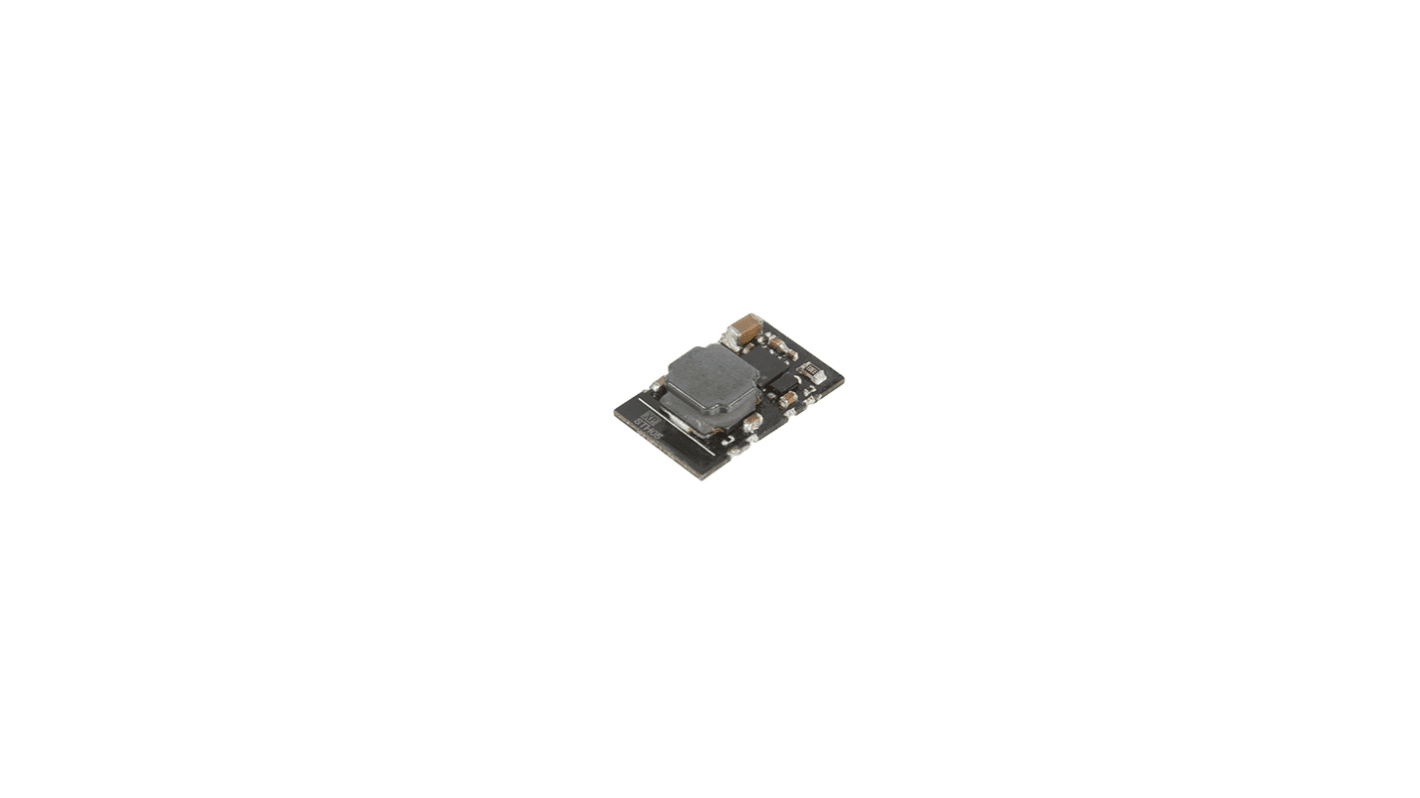

Switching Regulator 9-72Vin 3.3Vout 0.5A
- RS Stock No. 188-3362
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. STH0548S3V3
- ผู้ผลิต / Manufacturer XP Power
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
COO (Country of Origin): TW
รายละเอียดสินค้า / Product Details
The STH05 is a new series of innovative low cost DC-DC buck regulators. Based on SMD technology and high levels of automation the series offers many features including voltage trimming, remote on/off, continuous short circuit protection, regulation and high efficiency.
Regulated single outputs from 3.3 to 15VDC
Wide input range
Non-isolated
Output voltage trim ±10%
High efficiency up to 92%
Short-circuit protection
No heatsink required
Remote On/Off
Tape & reel package available
-40°C to +100°C operation
Full load to +60°C
คุณสมบัติ / Specifications
| คุณสมบัติ | Value |
|---|---|
| Input Voltage | 9 → 72V dc |
| Output Voltage | 3.3V dc |
| Number of Outputs | 1 |
| Output Current | 500mA |
| Mounting Type | Surface Mount |
| Package | SMD |
| Minimum Temperature | -40°C |
| Maximum Temperature | +100°C |
| Efficiency | 70 % @ 72 V |
| MTBF | 4.8 (Minimum) Mh |
| Load Regulation | ±1% |
| Line Regulation | ±1% |
| Ripple And Noise | 75mV Pk-Pk |
| Width | 11.8mm |
| Depth | 5mm |
| Protection Features | Short Circuit Protection |
| Switching Frequency Range | 550kHz |
| Weight | 1.8g |
| Power Signal Conversion Type | DC-DC |
| Series | STH05 |
| Length | 19.5mm |
| Maximum Input Current | 33 mA @ 72 V |
40 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB
382.00
(exc. VAT)
THB
408.74
(inc. VAT)
Units
Per unit
1 - 4
THB382.00
5 - 9
THB371.00
10 - 24
THB359.00
25 - 49
THB344.00
50 +
THB337.00
ตัวเลือกบรรจุภัณฑ์ / Packaging Options :
