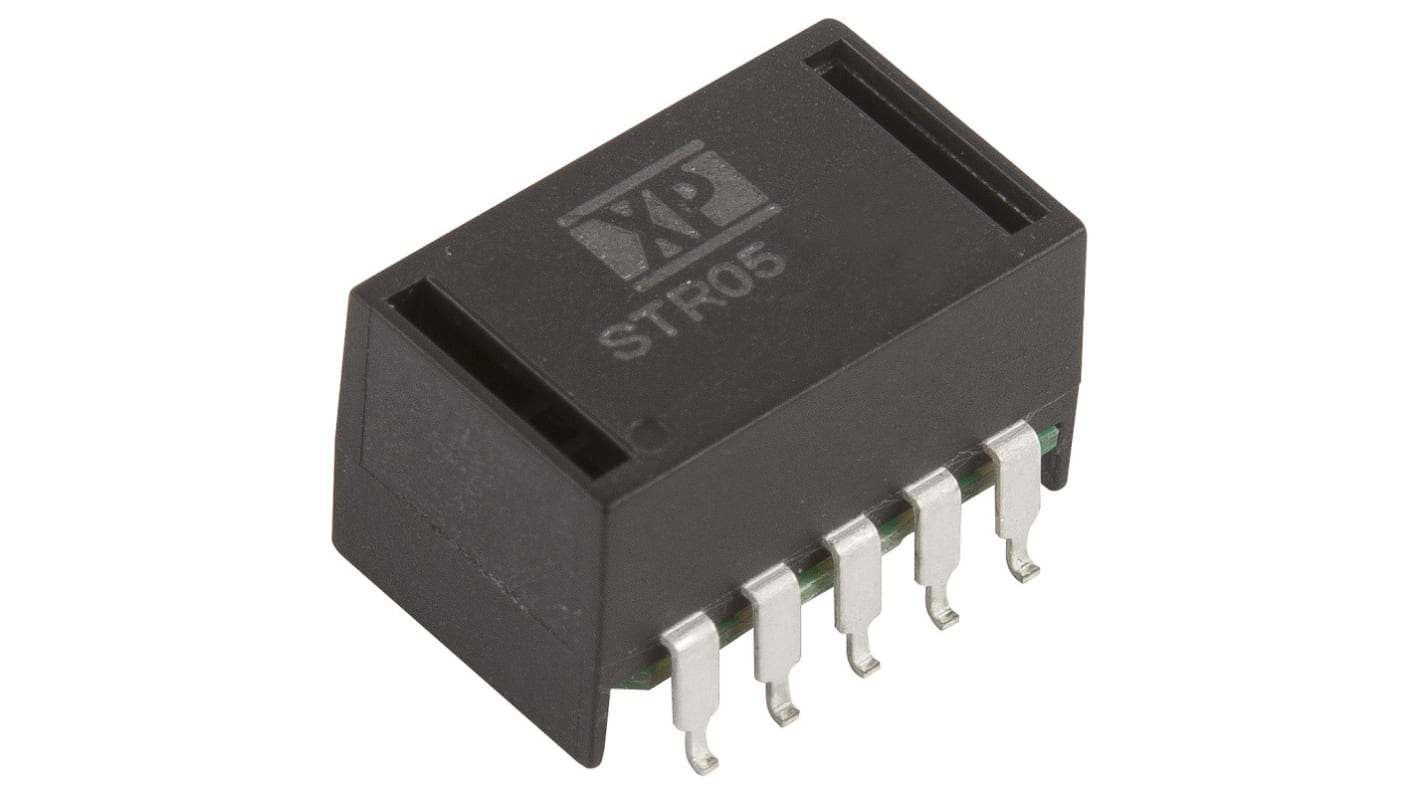

XP Power Switching Regulator, Surface Mount, 15V dc Output Voltage, 18 → 32V dc Input Voltage, 500mA Output
- RS Stock No.:
- 167-1978
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STR05S15
- ผู้ผลิต / Manufacturer:
- XP Power
รูปภาพประกอบสินค้าเป็นเพียงรูปภาพใกล้เคียงเท่านั้น กรุณาอ่านรายละเอียดสินค้า
ยอดรวมย่อย (1 หลอด หลอดละ 10 ชิ้น)**
THB2,930.10
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB3,135.21
(รวมภาษีมูลค่าเพิ่ม)
* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ
ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)
หลอด | ต่อหลอด | ต่อหน่วย** |
---|---|---|
1 + | THB2,930.10 | THB293.01 |
**ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 167-1978
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- STR05S15
- ผู้ผลิต / Manufacturer:
- XP Power
เลือกทั้งหมด | คุณลักษณะ | ค่า |
---|---|---|
Brand | XP Power | |
Output Voltage | 15V dc | |
Output Current | 500mA | |
Input Voltage | 18 → 32V dc | |
Mounting Type | Surface Mount | |
Number of Outputs | 1 | |
Package | SMD | |
Power Rating | 7.5W | |
Efficiency | 95% | |
Ripple And Noise | 40mV Pk-Pk | |
Maximum Temperature | +100°C | |
Minimum Temperature | -40°C | |
Series | STR | |
Line Regulation | ±0.2% | |
Load Regulation | ±0.4% | |
Depth | 8.8mm | |
Width | 9.6mm | |
Maximum Input Current | 5mA | |
Switching Frequency Range | 280 → 380kHz | |
Protection Features | Short Circuit Protection | |
Weight | 1.7g | |
MTBF | 2Mh | |
Length | 15.3mm | |
Power Signal Conversion Type | DC-DC | |
Rated Output Power | 7.5W | |
Special Features | Wide Input Range | |
Output Voltage Adjustment Range | 4.5-15.5V | |
เลือกทั้งหมด | ||
---|---|---|
Brand XP Power | ||
Output Voltage 15V dc | ||
Output Current 500mA | ||
Input Voltage 18 → 32V dc | ||
Mounting Type Surface Mount | ||
Number of Outputs 1 | ||
Package SMD | ||
Power Rating 7.5W | ||
Efficiency 95% | ||
Ripple And Noise 40mV Pk-Pk | ||
Maximum Temperature +100°C | ||
Minimum Temperature -40°C | ||
Series STR | ||
Line Regulation ±0.2% | ||
Load Regulation ±0.4% | ||
Depth 8.8mm | ||
Width 9.6mm | ||
Maximum Input Current 5mA | ||
Switching Frequency Range 280 → 380kHz | ||
Protection Features Short Circuit Protection | ||
Weight 1.7g | ||
MTBF 2Mh | ||
Length 15.3mm | ||
Power Signal Conversion Type DC-DC | ||
Rated Output Power 7.5W | ||
Special Features Wide Input Range | ||
Output Voltage Adjustment Range 4.5-15.5V | ||
