- RS Stock No.:
- 146-8209
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DPP201G000
- ผู้ผลิต / Manufacturer:
- TE Connectivity
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 23/08/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB997.19
(exc. VAT)
THB1,066.99
(inc. VAT)
Units | Per unit |
1 - 1 | THB997.19 |
2 - 4 | THB984.27 |
5 + | THB971.66 |
- RS Stock No.:
- 146-8209
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DPP201G000
- ผู้ผลิต / Manufacturer:
- TE Connectivity
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details

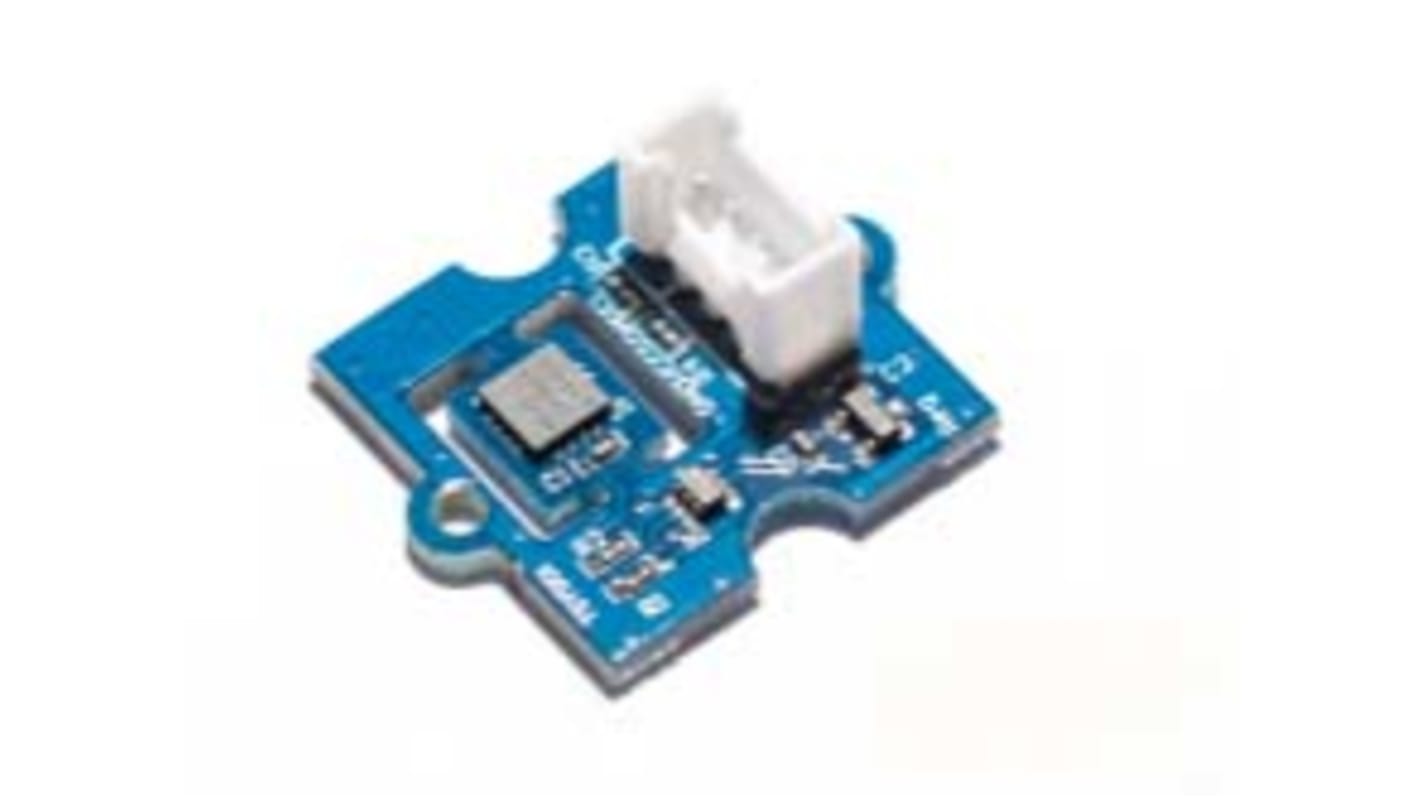

The TSYS01 provides the necessary hardware to interface the TSYS01 digital temperature sensor to any system that utilizes Grove compatible expansion ports configurable for I²C communication. The TSYS01 sensor is a self-contained temperature sensor that is fully calibrated during manufacture. The sensor model works in 5V voltage external. The TSYS01 has a low power stand-by mode for power-sensitive applications.
Measures temperature from -40°C to 125°C
I²C communication
Fully calibrated
Fast response time
Very low power consumption
4-pin Grove compatible connector
I²C interface
24/16 bit resolution for temperature
Parameters stored on chip
-5°C to 50°C accuracy: 0.1°C
-40°C to 125°C accuracy: 0.5°C
Very low power consumption
Operates 5V
Time constant
4 seconds typical in air
Fast conversion time 8.22ms typical
I²C communication
Fully calibrated
Fast response time
Very low power consumption
4-pin Grove compatible connector
I²C interface
24/16 bit resolution for temperature
Parameters stored on chip
-5°C to 50°C accuracy: 0.1°C
-40°C to 125°C accuracy: 0.5°C
Very low power consumption
Operates 5V
Time constant
4 seconds typical in air
Fast conversion time 8.22ms typical
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Sensor Technology | Temperature Sensor |
For Use With | Grove System |
Kit Classification | Development Board |
Kit Name | TSY01 |
