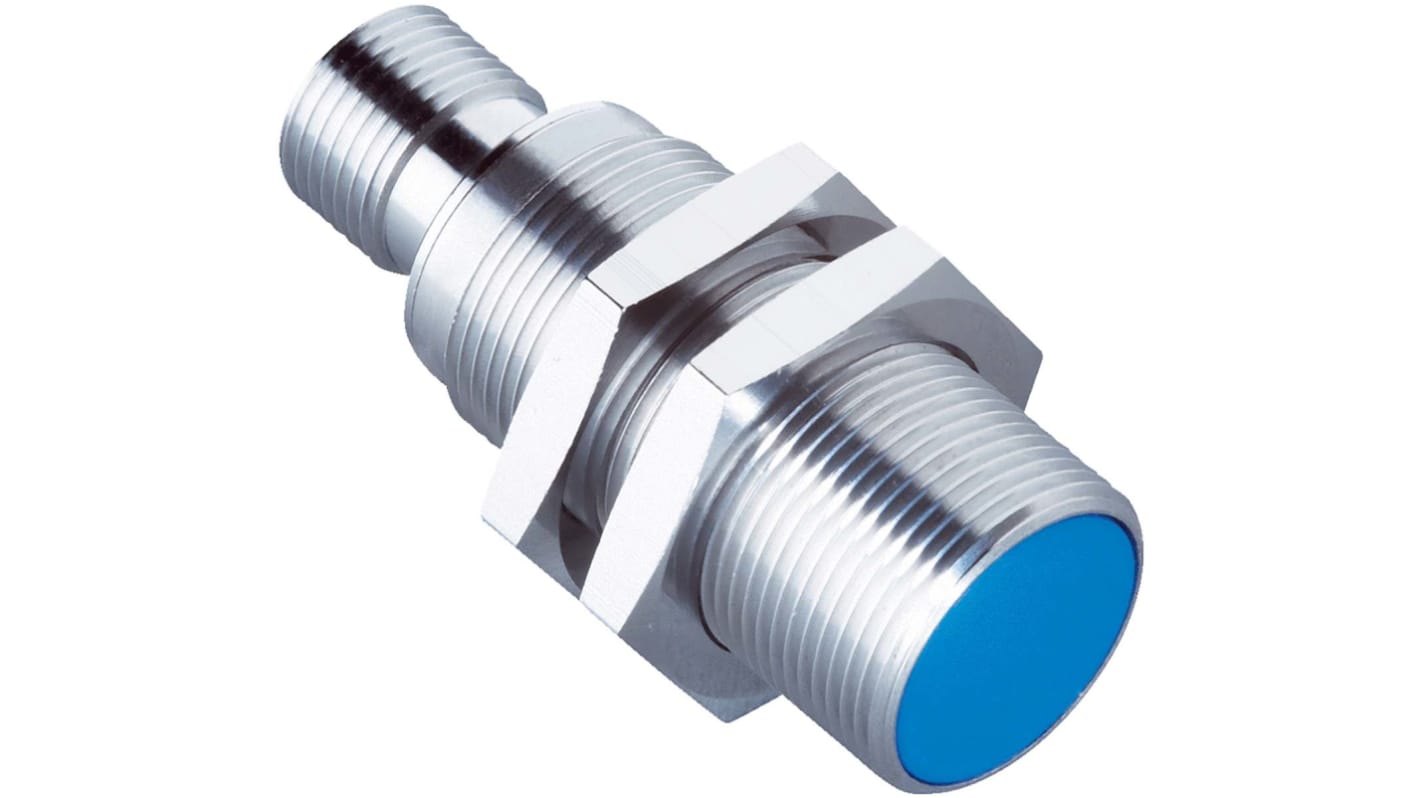

SICK Inductive Threaded Barrel Proximity Sensor, M18, 10 mm Detection 0-10 V, 15 → 30 V dc
- RS Stock No.:
- 209-3227
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IMA18-10BE1ZC0K
- ผู้ผลิต:
- SICK
ยอดรวมย่อย (1 ชิ้น)*
THB7,038.27
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB7,530.95
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
กำลังจะเลิกผลิต
- 6 ชิ้นสุดท้ายพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB7,038.27 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 209-3227
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- IMA18-10BE1ZC0K
- ผู้ผลิต:
- SICK
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | SICK | |
| Thread Size | M18 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 10 mm | |
| Analogue Switching Output Type | 0-10 V | |
| Connection Type | M12 | |
| Supply Voltage | 15 → 30 V dc | |
| Length | 48.5mm | |
| IP Rating | IP67 | |
| Mounting Type | Quasi-Flush | |
| Width | 18mm | |
| Housing Material | Metal | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | -25°C | |
| Short Circuit Overload Protection | Yes | |
| Maximum Operating Temperature | +70°C | |
| Shielding | Quasi-Shielded | |
| Reverse Polarity Protection | Yes | |
| Series | IMA | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand SICK | ||
Thread Size M18 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 10 mm | ||
Analogue Switching Output Type 0-10 V | ||
Connection Type M12 | ||
Supply Voltage 15 → 30 V dc | ||
Length 48.5mm | ||
IP Rating IP67 | ||
Mounting Type Quasi-Flush | ||
Width 18mm | ||
Housing Material Metal | ||
Maximum DC Voltage 30V | ||
Minimum Operating Temperature -25°C | ||
Short Circuit Overload Protection Yes | ||
Maximum Operating Temperature +70°C | ||
Shielding Quasi-Shielded | ||
Reverse Polarity Protection Yes | ||
Series IMA | ||
Overview
At a glance
Types: M8 to M30
Extended detection ranges: 0 mm to 40 mm
Analog output signal 0 V ... 10 V and 4 mA ... 20 mA
Enclosure rating: IP 67
Temperature range: –25 °C to +75 °C
Nickel-plated brass housing
Extended detection ranges: 0 mm to 40 mm
Analog output signal 0 V ... 10 V and 4 mA ... 20 mA
Enclosure rating: IP 67
Temperature range: –25 °C to +75 °C
Nickel-plated brass housing
plastic sensing face
High resolution and repeatability
Distance control and continuous position detection
High resolution and repeatability
Distance control and continuous position detection
Your Benefit
High positioning accuracy
No mechanical add-on parts required for monitoring of great distances
No mechanical add-on parts required for monitoring of great distances
The IMA inductive analog sensors give out a current or voltage signal which is in proportional relation to the distance from the sensor to the metal target. They are therefore optimally suited for monitoring travel paths, positions or even differentiating between spaces and material variants. These sensors are characterized by extremely large detection ranges up to 40 mm, high accuracy, precision and no blind areas.
Applications
Less space required for the same sensing range when compared with standard sensors
Less storage due to reduced multiplicity of types on account of integrated current and voltage interface
Less storage due to reduced multiplicity of types on account of integrated current and voltage interface
Large detection areas
Note
Product details cover the whole product family. For details on the specifications for this individual product, please refer to the datasheet.
