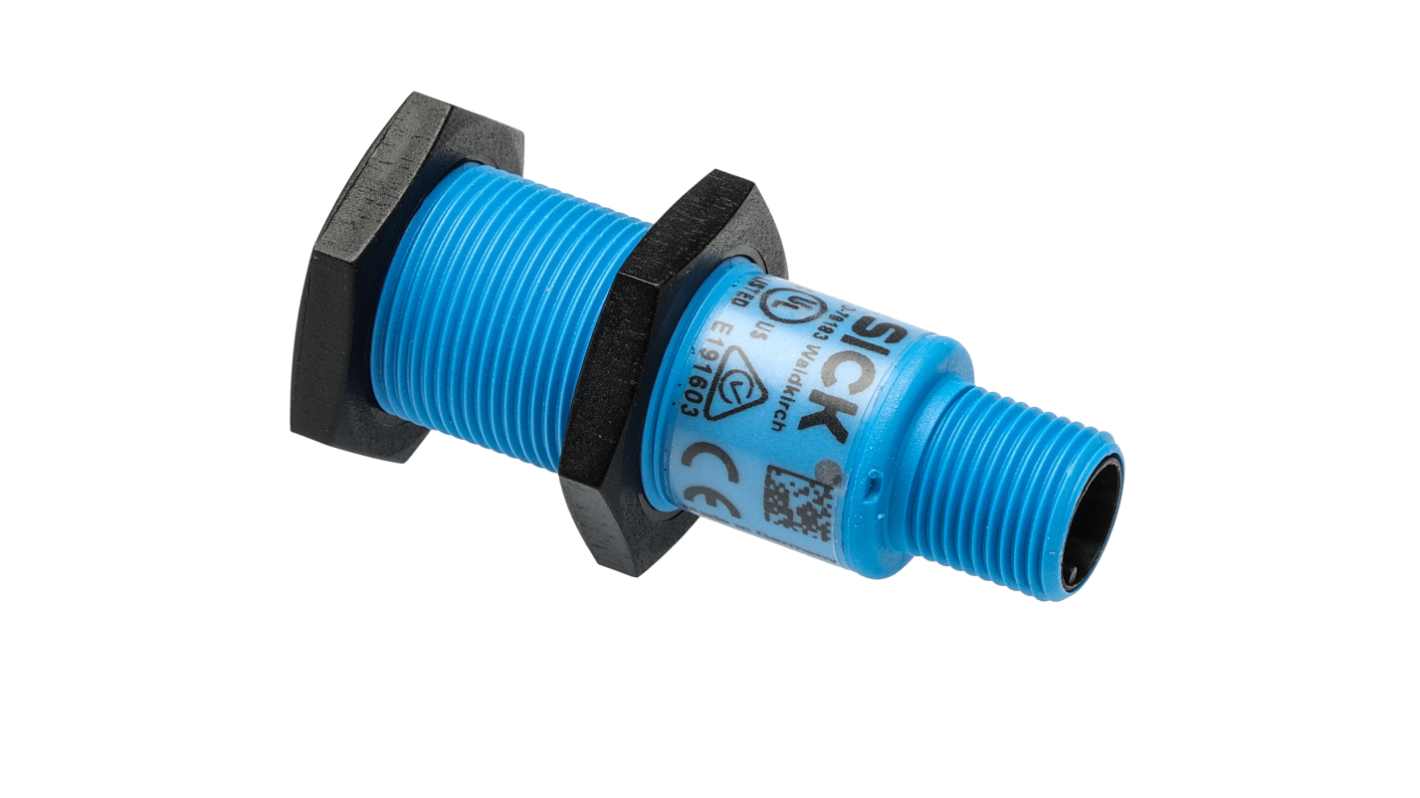

SICK Ultrasonic Threaded Barrel Proximity Sensor, M18, 150 mm Detection 0-10 V, 15 → 30 V dc

RS Stock No.:: 267-2117
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: UM18-217167101
ผู้ผลิต:: SICK

SICK Ultrasonic Threaded Barrel Proximity Sensor, M18, 150 mm Detection 0-10 V, 15 → 30 V dc

ยอดรวมย่อย (1 ชิ้น)*

THB10,572.52

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB11,312.60

(รวมภาษีมูลค่าเพิ่ม)

ส่งฟรีหากซื้อเกิน ฿2,500.00

มีในสต็อก

เพิ่มอีก 2 ชิ้นจะส่งได้หลังจากวันที่ 15 ธันวาคม 2568 ไปอีกประมาณ 7 วันทำการ

ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง

ชิ้น	ต่อหน่วย
1 +	THB10,572.52

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 267-2117
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: UM18-217167101
ผู้ผลิต:: SICK

คุณสมบัติ / Specifications

ข้อมูลทางเทคนิค / Technical Data Sheets

Legislation and Compliance

รายละเอียดสินค้า / Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	SICK
	Thread Size	M18
	Sensor Technology	Ultrasonic
	Detection Range	150 mm
	Body Style	Threaded Barrel
	Analogue Switching Output Type	0-10 V
	Connection Type	M12
	Supply Voltage	15 → 30 V dc
	IP Rating	IP65, IP67
	Length	52.7mm
	Housing Material	Plastic
	Width	18mm
	Maximum DC Voltage	30V
	Diameter	18 mm
	Minimum Operating Temperature	-25°C
	Maximum Operating Temperature	+70°C
	Depth	18mm
	Short Circuit Overload Protection	Yes
	Reverse Polarity Protection	Yes
	Standards Met	CE, cULus, EAC
	Series	UM

	เลือกทั้งหมด
	Brand SICK
	Thread Size M18
	Sensor Technology Ultrasonic
	Detection Range 150 mm
	Body Style Threaded Barrel
	Analogue Switching Output Type 0-10 V
	Connection Type M12
	Supply Voltage 15 → 30 V dc
	IP Rating IP65, IP67
	Length 52.7mm
	Housing Material Plastic
	Width 18mm
	Maximum DC Voltage 30V
	Diameter 18 mm
	Minimum Operating Temperature -25°C
	Maximum Operating Temperature +70°C
	Depth 18mm
	Short Circuit Overload Protection Yes
	Reverse Polarity Protection Yes
	Standards Met CE, cULus, EAC
	Series UM

COO (Country of Origin):: DE

SICK UM18 Series Proximity Sensor, Ultrasonic Sensor Technology, 150mm Detection Range - UM18-217167101

This proximity sensor is a precise ultrasonic device designed for various industrial applications. With a detection range of 150mm and a robust M18 threaded barrel, it is suitable for diverse environments, ensuring reliable operation under different conditions. The sensor operates effectively within temperatures ranging from –25°C to +70°C, making it a versatile choice for professionals in automation and electronics.

Features & Benefits

• Ultrasonic technology enables accurate distance measurement
• 0-10V output sensor provides easy integration with systems
• IP65 and IP67 ratings ensure dust and water resistance
• High-temperature proximity sensor supports demanding applications
• Short circuit protection enhances safety during operation
• Teach-in function allows for simple customisation

Applications

• Used for detecting objects in harsh environmental conditions
• Utilised in assembly lines for precise positioning
• Applied in automation systems for real-time distance measurement
• Ideal for monitoring levels in bins or tanks
• Suitable for integration in robotics for obstacle detection

What is the importance of having reverse polarity protection in the sensor?

Reverse polarity protection ensures that the sensor continues to function correctly even if the power supply connections are accidentally reversed. This feature safeguards against potential damage, thereby enhancing the device's longevity.

How does the resolution and measurement accuracy influence the sensor's performance?

The sensor features a resolution of ≥ 0.2mm and a measurement accuracy of ± 1%, which means it can provide precise distance readings. This level of accuracy is crucial for applications requiring tight tolerances, such as quality control and process monitoring.

What factors affect the effective detection range of this ultrasonic sensor?

The detection range can be influenced by the reflective properties, size, and alignment of the target object. Natural objects may reflect sound waves differently, which can impact the sensor's ability to accurately measure distance.

How long does the initial setup of the sensor take?

Initialisation of the sensor is typically completed in less than 300ms, allowing for quick deployment within operational systems. This ensures minimal downtime during installation and setup.
