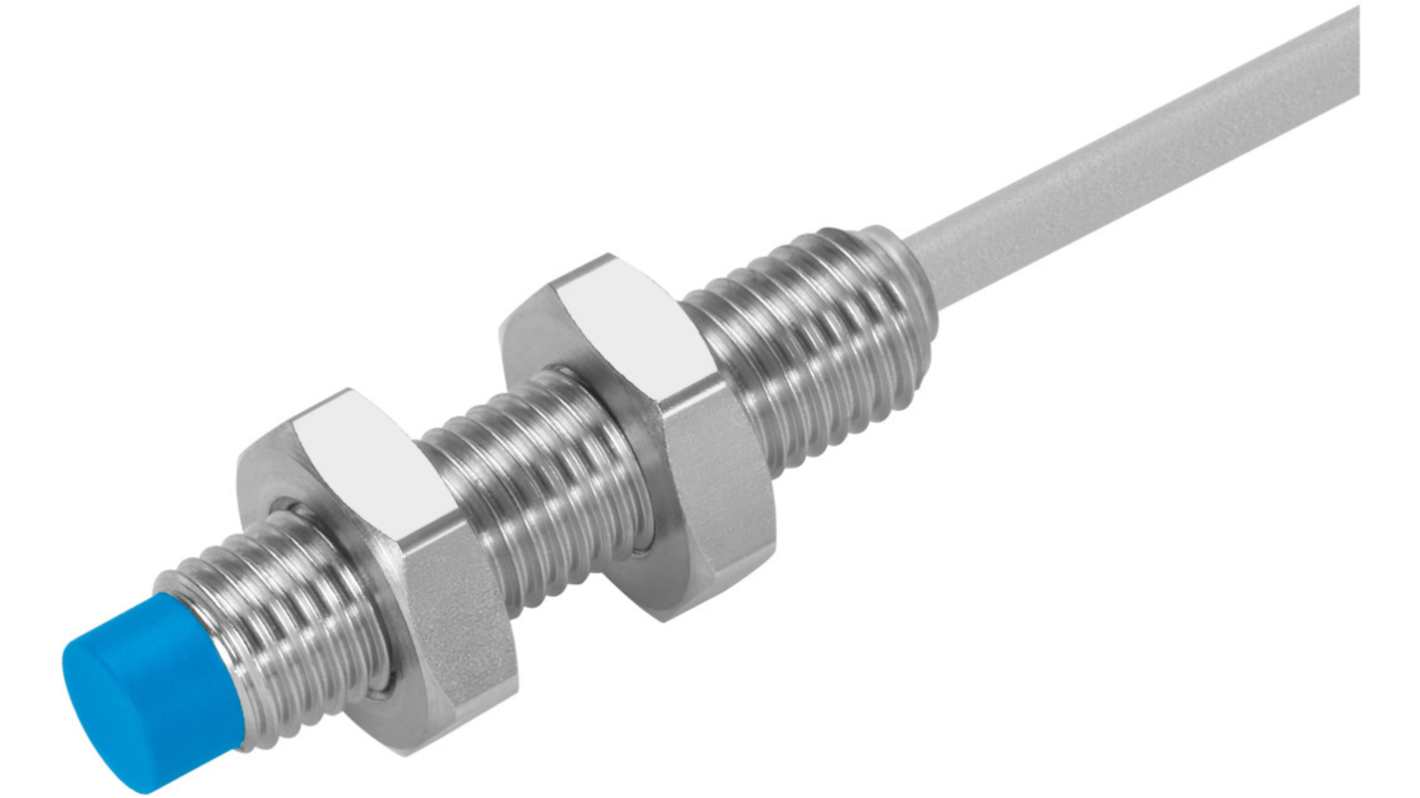

Festo Inductive Threaded Barrel Proximity Sensor, M8, 2.5 mm Detection, NPN NO, 10 → 30 V dc
- RS Stock No.:
- 125-9890
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SIEN-M8NB-NS-K-L
- ผู้ผลิต:
- Festo
ยอดรวมย่อย (1 ชิ้น)*
THB2,317.76
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB2,480.00
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 1 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 + | THB2,317.76 |
*ตัวบ่งบอกราคา / price indicative
- RS Stock No.:
- 125-9890
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- SIEN-M8NB-NS-K-L
- ผู้ผลิต:
- Festo
คุณสมบัติ / Specifications
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | Festo | |
| Thread Size | M8 | |
| Sensor Technology | Inductive | |
| Body Style | Threaded Barrel | |
| Detection Range | 2.5 mm | |
| Digital Switching Output Type | NPN | |
| Output Function | NO | |
| Connection Type | Pre-Cabled | |
| Cable Length | 2m | |
| Supply Voltage | 10 → 30 V dc | |
| Length | 35mm | |
| IP Rating | IP65, IP67 | |
| Mounting Type | Non-Flush | |
| Housing Material | PBT, Stainless Steel | |
| Maximum DC Voltage | 30V | |
| Minimum Operating Temperature | -25°C | |
| Series | SIEN | |
| Maximum Switching Frequency | 5kHz | |
| Standards Met | CE, cULus, EN 60947-5-2, EU EMC, RCM | |
| Shielding | Unshielded | |
| Switching Frequency | 3 kHz | |
| Reverse Polarity Protection | Yes | |
| Switching Current | 200 mA | |
| Maximum Operating Temperature | +70°C | |
| Short Circuit Overload Protection | Yes | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand Festo | ||
Thread Size M8 | ||
Sensor Technology Inductive | ||
Body Style Threaded Barrel | ||
Detection Range 2.5 mm | ||
Digital Switching Output Type NPN | ||
Output Function NO | ||
Connection Type Pre-Cabled | ||
Cable Length 2m | ||
Supply Voltage 10 → 30 V dc | ||
Length 35mm | ||
IP Rating IP65, IP67 | ||
Mounting Type Non-Flush | ||
Housing Material PBT, Stainless Steel | ||
Maximum DC Voltage 30V | ||
Minimum Operating Temperature -25°C | ||
Series SIEN | ||
Maximum Switching Frequency 5kHz | ||
Standards Met CE, cULus, EN 60947-5-2, EU EMC, RCM | ||
Shielding Unshielded | ||
Switching Frequency 3 kHz | ||
Reverse Polarity Protection Yes | ||
Switching Current 200 mA | ||
Maximum Operating Temperature +70°C | ||
Short Circuit Overload Protection Yes | ||
- COO (Country of Origin):
- LK
Festo SIEN Series Proximity Sensor, 2.5mm Detection Range, 200mA Switching Current - SIEN-M8NB-NS-K-L , Numeric Part Number: 150392
This proximity sensor is an inductive type designed for industrial applications. With a compact threaded barrel style and dimensions of 35mm in length, it offers reliable performance across a temperature range of -25°C to +70°C. This sensor operates with an NPN output and is suitable for detecting metallic objects at a distance of 2.5mm, making it highly effective for automation needs.
Features & Benefits
• Detection range of 2.5mm enables precise object identification
• Operates effectively between 10V to 30V DC for versatile usage
• Compact threaded barrel design facilitates easy installation in restricted spaces
• IP65 and IP67 ratings provide protection against dust and water ingress
• Short-circuit overload protection enhances operational safety
• Operates effectively between 10V to 30V DC for versatile usage
• Compact threaded barrel design facilitates easy installation in restricted spaces
• IP65 and IP67 ratings provide protection against dust and water ingress
• Short-circuit overload protection enhances operational safety
Applications
• Utilised in factory automation for position detection
• Implemented in conveyor systems for metal detection
• Suitable for machine tools where precise object positioning is critical
• Effective in robotic systems for end-of-arm tooling
• Implemented in conveyor systems for metal detection
• Suitable for machine tools where precise object positioning is critical
• Effective in robotic systems for end-of-arm tooling
What are the specific environmental conditions under which it can operate?
It can function effectively in ambient temperatures ranging from -25°C to +70°C, allowing for versatile use in various industrial settings.
How does the output function affect its application in automation?
The NPN output configuration enables seamless interfacing with control systems, making it ideal for real-time integration into automation processes.
What materials are compatible with the sensing capability?
The sensor can detect materials with specific reduction factors
for example, it performs best with steel (1.0) and less effectively with aluminium (0.25), allowing for tailored applications based on material type.
How does the housing material contribute to the sensor's durability?
Constructed from PBT and high-alloy stainless steel, the housing offers enhanced resistance to environmental stress and ensures long-lasting performance.
