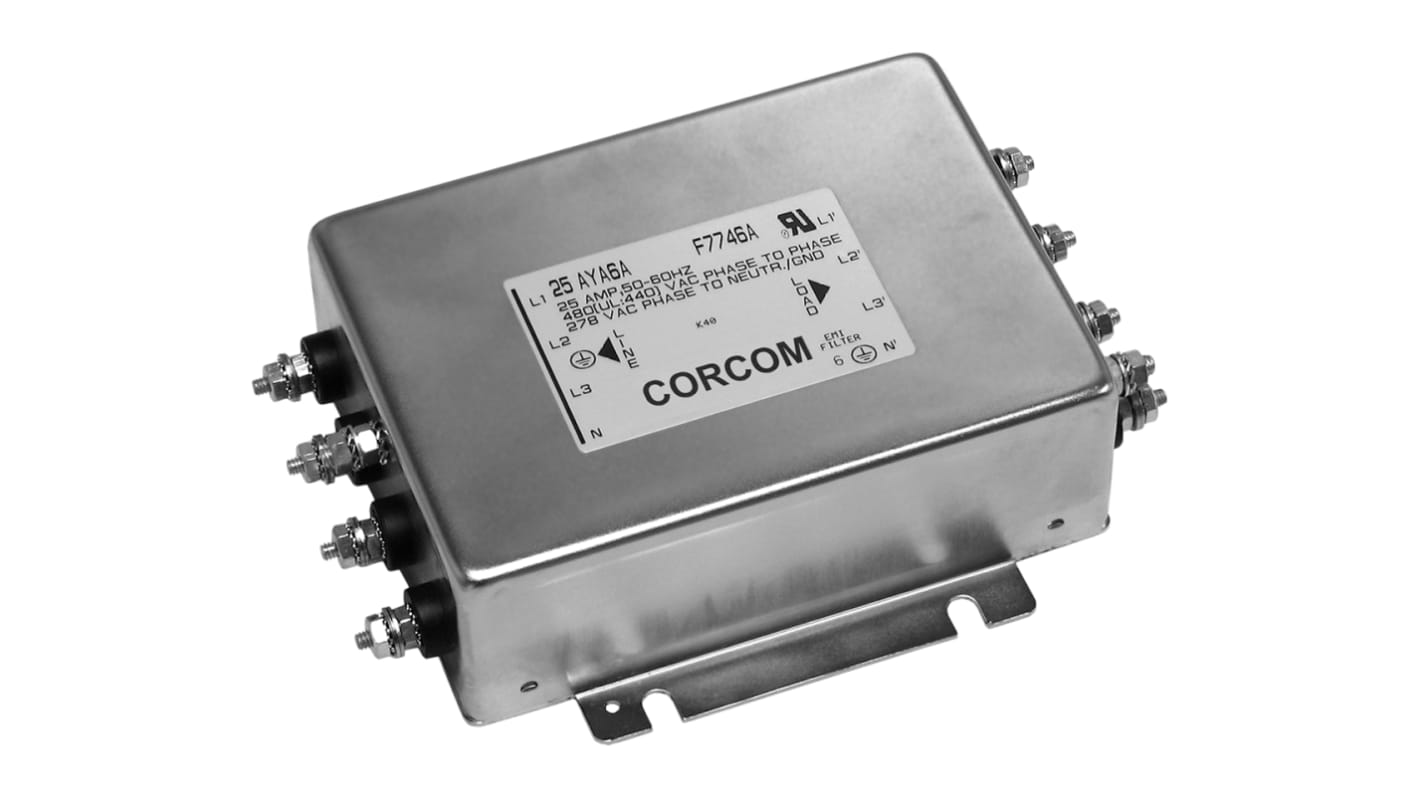

TE Connectivity, Corcom AYA 25A 250 (PH → G) V ac, 440 (PH → PH) V ac 50Hz, Flange Mount RFI Filter,
- RS Stock No.:
- 881-3891
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 6609977-2
- ผู้ผลิต:
- TE Connectivity
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
- RS Stock No.:
- 881-3891
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 6609977-2
- ผู้ผลิต:
- TE Connectivity
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current Rating | 25A | |
| Maximum Voltage Rating | 250 (PH → G) V ac, 440 (PH → PH) V ac | |
| Mounting Type | Flange Mount | |
| Termination Style | Threaded Bolt | |
| Number of Phases | 3 | |
| Number of Stages | Single Stage | |
| Series | Corcom AYA | |
| Operating Frequency | 50 Hz, 60Hz | |
| Length | 201mm | |
| Depth | 50mm | |
| Height | 111mm | |
| Dimensions | 201 x 50 x 111mm | |
| Minimum Operating Temperature | -10°C | |
| Leakage Current | 2.82 mA | |
| Maximum Operating Temperature | +40°C | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current Rating 25A | ||
Maximum Voltage Rating 250 (PH → G) V ac, 440 (PH → PH) V ac | ||
Mounting Type Flange Mount | ||
Termination Style Threaded Bolt | ||
Number of Phases 3 | ||
Number of Stages Single Stage | ||
Series Corcom AYA | ||
Operating Frequency 50 Hz, 60Hz | ||
Length 201mm | ||
Depth 50mm | ||
Height 111mm | ||
Dimensions 201 x 50 x 111mm | ||
Minimum Operating Temperature -10°C | ||
Leakage Current 2.82 mA | ||
Maximum Operating Temperature +40°C | ||
Corcom AYA Series 3-phase RFI Power Line Filters
TE Connectivity (TE) offers over 300 solutions that are suitable for a wide range of applications across multiple industries.
All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.
AYA series RFI power line filters are designed for 3-phase, four wire, WYE and provide good attenuation over the complete frequency range. These power line filters are universal and cost-effective. Ideal applications include uninterruptible power supplies, machine tools and industrial control systems.
All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.
AYA series RFI power line filters are designed for 3-phase, four wire, WYE and provide good attenuation over the complete frequency range. These power line filters are universal and cost-effective. Ideal applications include uninterruptible power supplies, machine tools and industrial control systems.
Cost-effective
Universal filter
Single stage
Terminal bolt and nut or DIN type terminals available
Universal filter
Single stage
Terminal bolt and nut or DIN type terminals available
