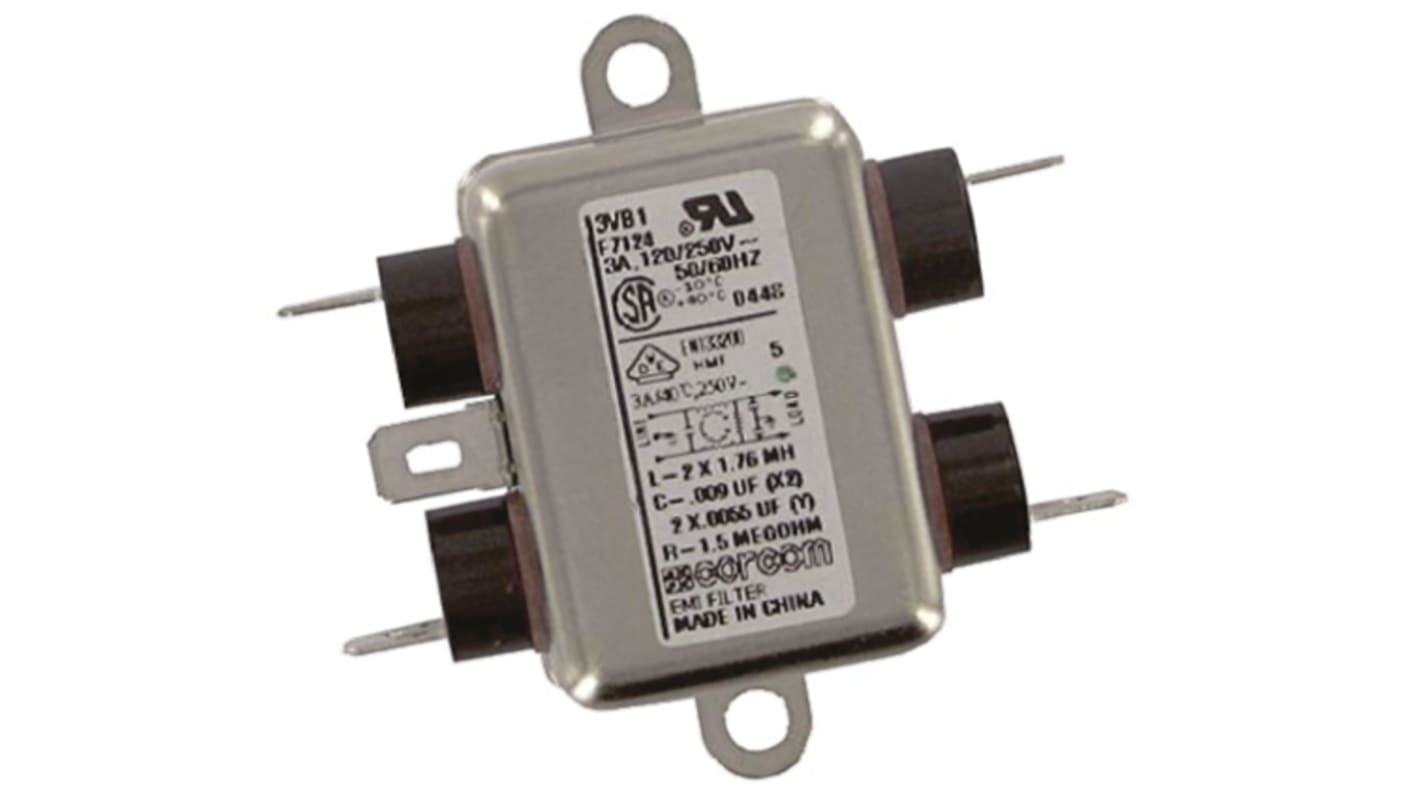

TE Connectivity, Corcom B 3A 250 V ac, Flange Mount RFI Filter, Spade, Single Phase
- RS Stock No.:
- 782-0971
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 3VB1
- ผู้ผลิต:
- TE Connectivity
มีส่วนลดเมื่อซื้อจำนวนมาก
ยอดรวมย่อย (1 ชิ้น)*
THB605.38
(ไม่รวมภาษีมูลค่าเพิ่ม)
THB647.76
(รวมภาษีมูลค่าเพิ่ม)
ส่งฟรีหากซื้อเกิน ฿2,500.00
มีในสต็อก
- 1,605 ชิ้นพร้อมจัดส่งจากคลังสินค้าต่างประเทศ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น | ต่อหน่วย |
|---|---|
| 1 - 49 | THB605.38 |
| 50 - 99 | THB586.38 |
| 100 - 199 | THB561.30 |
| 200 + | THB544.83 |
*price indicative
- RS Stock No.:
- 782-0971
- หมายเลขชิ้นส่วนของผู้ผลิต:
- 3VB1
- ผู้ผลิต:
- TE Connectivity
ข้อมูลทางเทคนิค
Technical data sheets
Legislation and Compliance
Product Details
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด | คุณลักษณะ | ค่า |
|---|---|---|
| Brand | TE Connectivity | |
| Maximum Current Rating | 3A | |
| Maximum Voltage Rating | 250 V ac | |
| Mounting Type | Flange Mount | |
| Termination Style | Spade | |
| Number of Phases | 1 | |
| Number of Stages | Single Stage | |
| Series | Corcom B | |
| Length | 66.3mm | |
| Depth | 19.8mm | |
| Dimensions | 66.3 x 46.2 x 19.8mm | |
| เลือกทั้งหมด | ||
|---|---|---|
Brand TE Connectivity | ||
Maximum Current Rating 3A | ||
Maximum Voltage Rating 250 V ac | ||
Mounting Type Flange Mount | ||
Termination Style Spade | ||
Number of Phases 1 | ||
Number of Stages Single Stage | ||
Series Corcom B | ||
Length 66.3mm | ||
Depth 19.8mm | ||
Dimensions 66.3 x 46.2 x 19.8mm | ||
Corcom B Series General Purpose RFI Low Current Filters
Corcom filters are recognized worldwide for providing EMI/RFI filtering solutions. TE offers over 70 Corcom filter series that are suitable for a wide range of applications across multiple industries. All Corcom filters have been designed and tested for susceptibility and/or emissions applications and have received approval from major safety agencies throughout the world including UL, CSA and VDE.
The TE Connectivity Corcom B Series of RFI filters are designed for high impedance loads at low current and wide band RFI suppression in applications that require low attenuation. These RFI filters offer a compact and economical solution with a wide range of termination options for general purpose use. B series power line filters are suitable for application in VDE portable equiment and non-patient medical equipment due to their low leakage current. Other typical uses include HVAC, battery charging systems, exercise equipment, home appliances, computing and accesssors, television, audio and video.
The TE Connectivity Corcom B Series of RFI filters are designed for high impedance loads at low current and wide band RFI suppression in applications that require low attenuation. These RFI filters offer a compact and economical solution with a wide range of termination options for general purpose use. B series power line filters are suitable for application in VDE portable equiment and non-patient medical equipment due to their low leakage current. Other typical uses include HVAC, battery charging systems, exercise equipment, home appliances, computing and accesssors, television, audio and video.
General purpose
Screw mounting
Termination input options include spade terminals, wire leads or terminal bolt and nut
Screw mounting
Termination input options include spade terminals, wire leads or terminal bolt and nut
Approvals
UL, CSA, VDE
