Festo Solenoid Valve - 5/2 Solenoid G VUVG Series 24 V dc

ดูหมวดหมู่นี้
มีส่วนลดเมื่อซื้อจำนวนมาก

ยอดรวมย่อย (1 ชิ้น)*

THB5,270.19

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB5,639.10

(รวมภาษีมูลค่าเพิ่ม)

Add to Basket
เลือกหรือพิมพ์จำนวน
หมดสต็อกชั่วคราว
  • จะส่งได้หลังจากวันที่ 14 เมษายน 2569 ไปอีกประมาณ 7 วันทำการ
ต้องการสินค้าเพิ่มหรือไม่ ระบุจำนวนและคลิก ‘ตรวจสอบวันจัดส่ง’ เพื่อดูข้อมูลเพิ่มเติมเกี่ยวกับสต็อกสินค้าและการจัดส่ง
ชิ้น
ต่อหน่วย
1 - 4THB5,270.19
5 +THB5,059.22

*ตัวบ่งบอกราคา / price indicative

RS Stock No.:
181-6390
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
VUVG-L14-B52-T-G18-1H2L-W1
ผู้ผลิต:
Festo
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Festo

Product Type

Solenoid Valve

Port Size

1/8 in

Connection Thread Standard

G

Actuation Type

Solenoid

Solenoid Type

Single

Seal Material

Nitrile Rubber (NBR)

Series

VUVG

Voltage

24 V dc

Mount Type

In-Line

Number of Ports

5

Body Material

Aluminium Alloy

Maximum Operating Pressure

8 bar

Minimum Operating Temperature

-5°C

Maximum Pilot Pressure

8bar

Valve Function

5/2

Maximum Flow Rate

780L/min

Minimum Pilot Pressure

1.5bar

Port Gender

Female

Maximum Operating Temperature

60°C

Solenoid Power Consumption

1W

Width

14 mm

Standards/Approvals

cULus, RoHS, CSA

Hazardous Area Certification

No

Electrical Connection Type

Electrical Connection Plate

Number of Positions

2

COO (Country of Origin):
DE

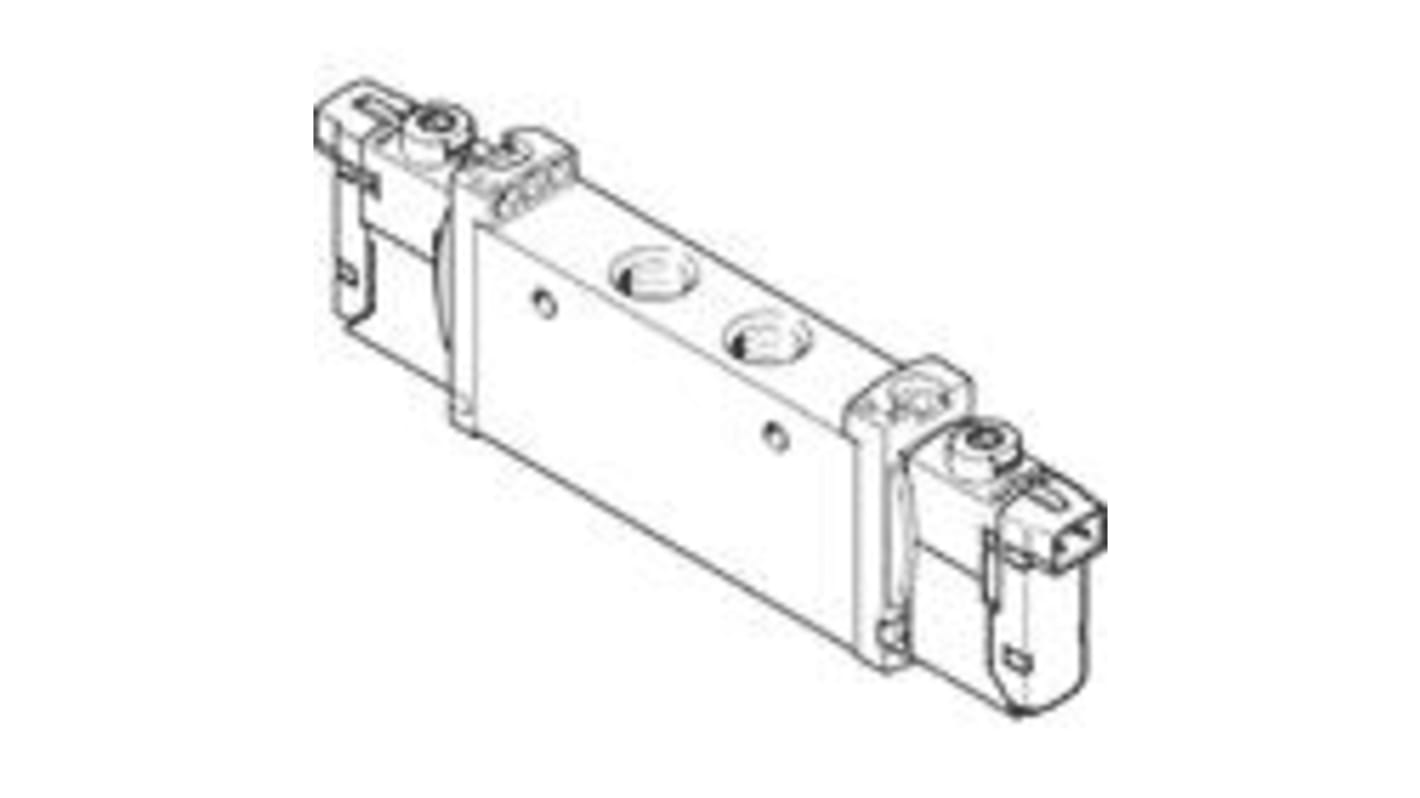

VUVG-L14-B52-T-G18-1H2L-W1 - 5/2 Way Bistable Solenoid Valve


In-line valve - designed to be used without pneumatic linking All pneumatic connections are on the valve and can be equipped with fittings/tubing

Piston spool with sealing cartridge design principle

5/2 Way Bistable valve function

Internal pilot air supply

G1/8 thread pneumatic connection

FESTO VUVG Series Solenoid Valves - Pneumatic Control Valve


The VUVG series of compact design valves are ideal for use where installation space, weight, flow rate and mounting considerations are important. These solenoid valves have a high flow rate and are compact, allowing operation of more applications using a single valve type. The valves have up to 100% more flow and greater energy density due to a pressure capability of up to 10 bar. They offer a faster, more flexible and cost effective performance to your systems.

Features and Benefits


• The innovative design allows the control valve to be set to internal or external pilot air supply for manifolds with sub base valves

• The connection technology is easy to change via the electrical connection box

• Pressure range -0.9 bar to 10 bar for maximised energy density and more power

• The versatile design allows for a wide range of valve functions alongside a choice of quick push connectors

• There are options for semi in-line valves, in-line valves and sub-base valves within the VUVG series

• The option to combine M5 and M7 in-line valves to one manifold rail

• Valve manifold with pressure zones

• Sturdy and durable metal material

• Servicing is easy and efficient due to the valves being replaced quickly

• Fast and easy installation as well as maintenance

• Fast troubleshooting thanks to the integrated 360° LED display and quick status review

• The pneumatic valves offer high flow rates and short cycle times

• The valve systems allow for a long service life, reducing downtime

• Compact, smart design which saves space and time

• Non-overlapping between air ducts

• Positive locking seals, retaining mounting screws

• Protection: IP 40/IP 65

Did you know?


Solenoid valves generate a magnetic field from an electric current, in turn they operate a mechanism used to regulate the opening of fluid flow valves.
