Druck Genii Multi Function Calibrator with HART 30 V dc, 300 V ac 55mA 1000bar

  • RS Stock No. 815-9995
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. DPI620G-L
  • ผู้ผลิต / Manufacturer Druck
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CN
รายละเอียดสินค้า / Product Details

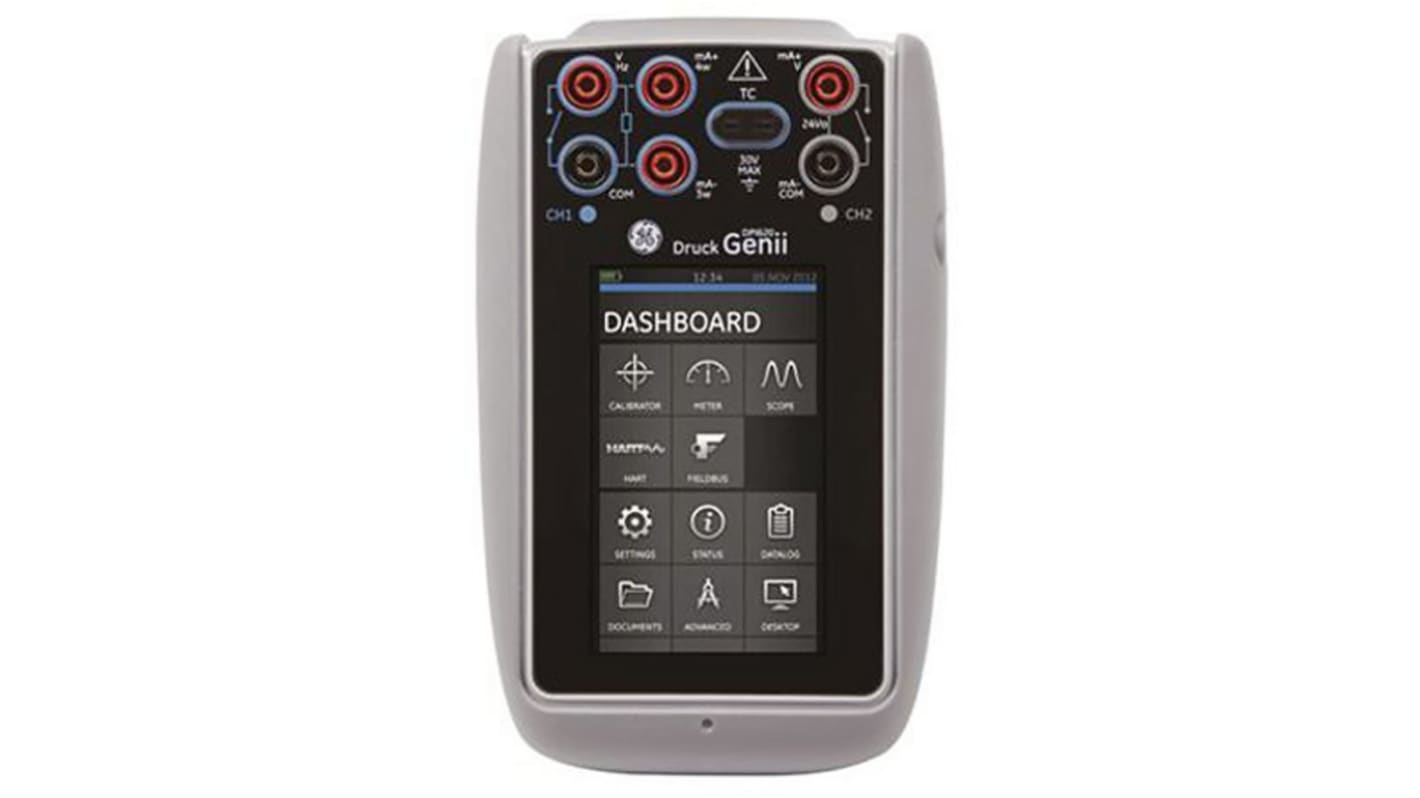

Druck DPI 620 Genii Advanced Modular Calibrator

Providing multi-functionality is just one of the many great features of the Druck DPI 620 Genii series. The advanced modular calibrator and HART/Fieldbus communicator is comprised of just four system components. Each one of these components performs duties that previously required a multitude of different systems. Some components of the system that we have available are: • DPI 620G (800-3013) - Genii Advanced Modular Calibrator with HART Communicator
• DPI 620G-FF (800-3016) - Genii Advanced Modular Calibrator with HART/Fieldbus Communicator
• DPI 620G-L (815-9995) - Genii Advanced Modular Calibrator
• MC 620 (541-116) - Interchangeable Pressure Module
• PM 620 (541-100) - Pressure Module Carrier

Features & Benefits

• Multifunction capabilities, electrical frequency, temperature and pressure
• Complete HART communicator
• Optional Fieldbus communicator
• Modular re-arrangeable and expandable concept
• Each individual component can be used as a stand-alone instrument
• Allows for significant inventory reductions
• Improves operator safety and simplifies training
• Reduces cost ownership
• Provides simultaneous measurement and source capabilities for the set-up, testing and calibration of most types of process instruments. (Transmitters, transducers, gauges/indicators, switched, proximity detectors, counters, RTDs, thermocouple, and valve positioners

The DPI 620 Genii series combines an advanced multi-function calibrator and HART/Fieldbus communicator with world-class pressure measurement generation, now available with a new and improved design:

• Smartphone technology, touch display and UI (user interface) which helps support gestures and swipes with a flatter menu structure
• A new digital platform and modems which support HART and Fieldbus applications
• A new dashboard, allowing a user to promptly launch applications
• The new TASK menu allows for single touch configuration, useful for common devices such as pressure and temperature transmitters, transducers, switches and valve positioners

Did you know?

All first-generation DPI 620 and the new Genii systems components are conveniently, fully interchangeable. This includes pressure stations, pressure modules and all other associated accessories.

What comes with the kit?

Please note that the contents of the kit is based on the Genii module that you acquire and will vary, the below contents come with the any of the series modules as standard. • Probe
• Test leads
• Calibration certificate
• Quick reference guide

คุณสมบัติ / Specifications
คุณสมบัติ Value
Maximum Voltage Measurement 30 V dc, 300 V ac
Maximum Current Measurement 55mA
Maximum Pressure Measurement 1000bar
Battery Life 12 h
Battery Type Lithium-Polymer
Power Source Battery
Dimensions 183 x 114 x 42mm
Weight 575g
Height 42mm
Length 183mm
Maximum Operating Temperature +50°C
Minimum Operating Temperature -10°C
Model Number p Genii
Width 114mm
4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 190,581.31
(exc. VAT)
THB 203,922.00
(inc. VAT)
Per unit
1 +
