TE Connectivity Type II Series, Cable Mount Mini I/O Connector Female, 8 Way, Shielded

  • RS Stock No. 901-0918
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 1-2201864-2
  • ผู้ผลิต / Manufacturer TE Connectivity
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

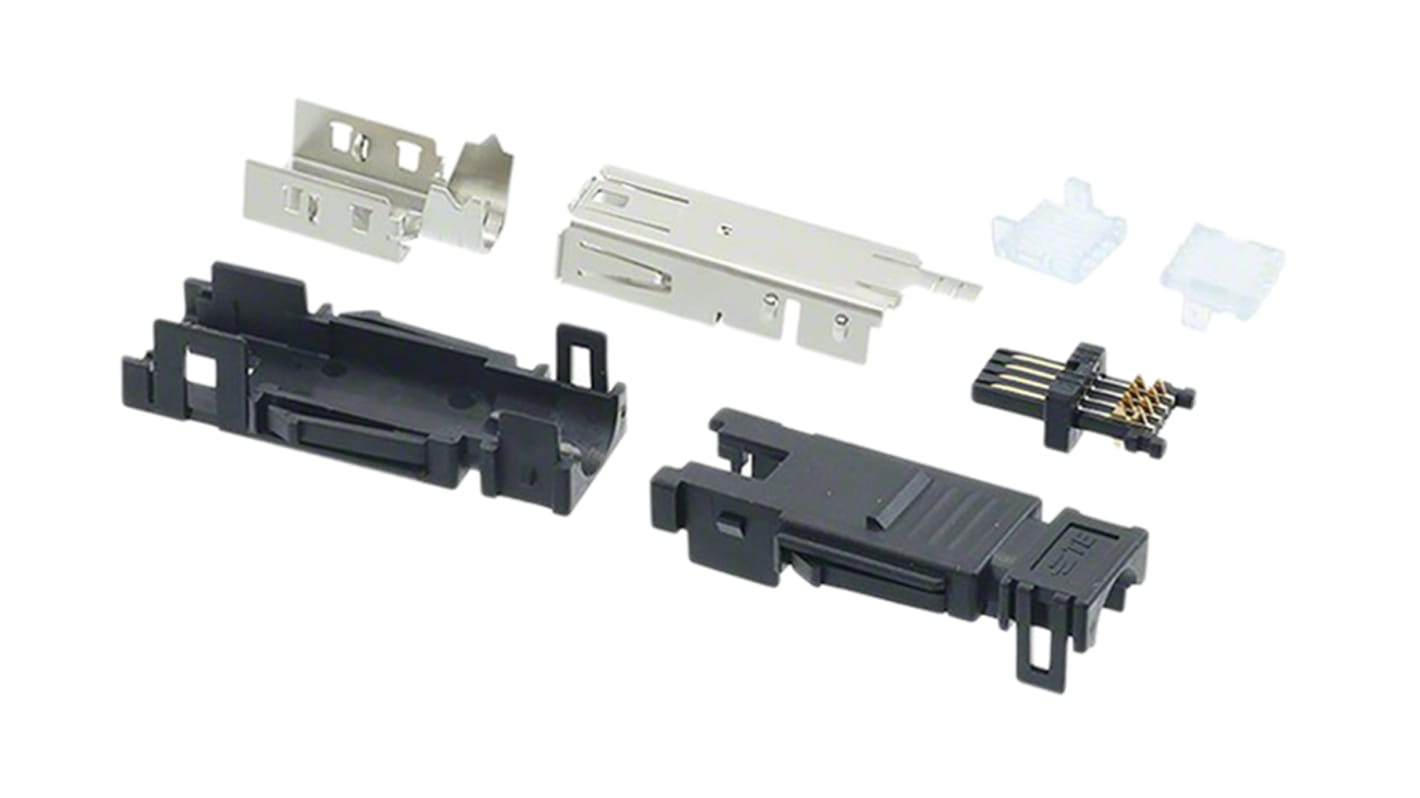

TE Connectivity Mini I/O Receptacle Kits

This range of TE Connectivity industrial Mini I/O connectors have been designed to meet the needs of tough modern day applications.These Mini I/O connector receptacle kits are a quarter of the size of standard RJ45 connectors.They offer a two point contact system which allows for greater stability and a latching feature which prevents inaccurate mating and vibration pull out.Typical applications include Robotics, PLC’s and Motion control.

TE Connectivity Industrial Mini I/O

คุณสมบัติ / Specifications
คุณสมบัติ Value
Series Type II
Connector Type Mini I/O Jack
Gender Female
Number of Ways 8
Mounting Type Cable Mount
Orientation Straight
Number of Ports 1
Shielded/Unshielded Shielded
Termination Method Solder
Housing Material Thermoplastic
Contact Material Copper Alloy
Colour Blue
Height 8.7mm
Width 35mm
Depth 13.5mm
123 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 387.64
(exc. VAT)
THB 414.77
(inc. VAT)
Units
Per unit
1 - 9
THB387.64
10 - 24
THB369.98
25 - 49
THB352.59
50 - 99
THB334.68
100 +
THB317.28
