IP67 Limit Switch Box Aluminium

  • RS Stock No. 799-8840
  • ผู้ผลิต / Manufacturer RS PRO
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
COO (Country of Origin): GB
รายละเอียดสินค้า / Product Details

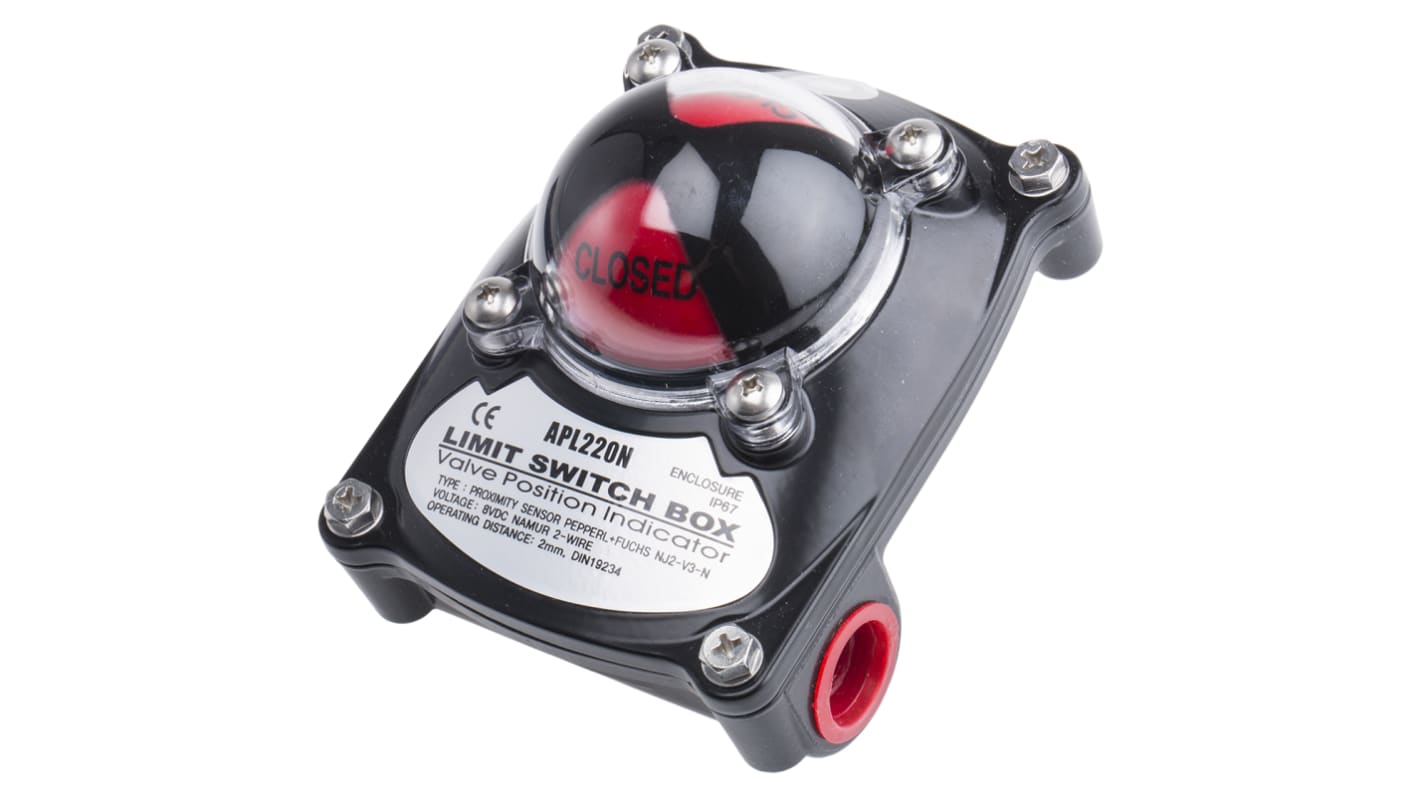

Limit Switch Box IP67

Powder coated aluminium switchbox rated to IP67 and fitted with 2 x 2 wire proximity sensors for indication of fully open and fully closed positions.
Solid and compact design with high visibility beacon indicator.
Captive cover bolts are safely retained during installation and maintenance. The spring loaded splined cams are easily adjustable with no tools required.
Dual cable entries are provided

Enclosure material: Die cast Aluminium
IP67 Rated
Enclosure finish: Polyester powder coating
Shaft material: Stainless steel
Cable entries: 2xM20 (options PG13.5 and 1/2in. NPT)
Sensor type: 2x P and F NJ2-V3-N Proximity sensors
Sensor rating: Atex IIG Eexia IIC T6
Voltage: 8Vdc - 2 wire
Ambient temperature: -20゚→ +80゚ C

Note

The switchbox is mounted to the actuator using a NAMUR standard stainless steel mounting bracket

คุณสมบัติ / Specifications
คุณสมบัติ Value
IP Rating IP67
Housing Material Aluminium
Connection Type M20
Minimum Operating Temperature -20°C
Maximum Operating Temperature +80°C
2 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 11,665.28
(exc. VAT)
THB 12,481.85
(inc. VAT)
Units
Per unit
1 +
THB11,665.28
