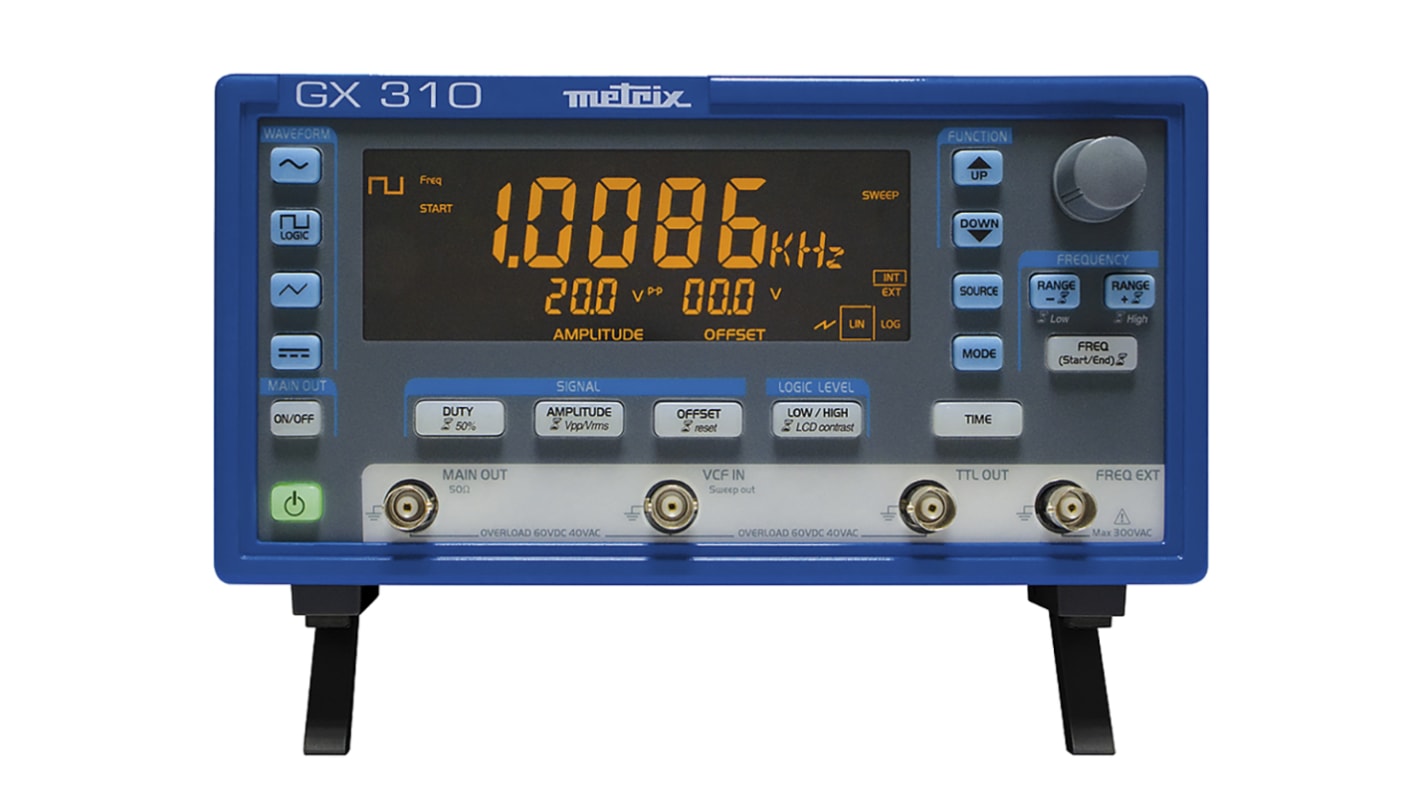

Metrix GX 310-P Function Generator, 0.001Hz Min, 10MHz Max

ดู Function Generators ทั้งหมด
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป

ตัวเลือก

สินค้านี้ไม่มีจำหน่ายในขณะนี้ ลองดูสินค้าอื่นที่เราแนะนำ

presentation
Metrix Function Generator, 0.001 Hz Min, 10 MHz Max FM Modulation
RS Stock No.
879-3826

Each

THB27,049.69

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB28,943.17

(รวมภาษีมูลค่าเพิ่ม)

RS Stock No.:
879-3820
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
GX310-P
ผู้ผลิต:
Metrix
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Metrix

Maximum Frequency Range Sinewave

10MHz

Maximum Frequency Range Square Pulse and Arbitrary Waveform

10MHz

Output Impedance

50Ω

Minimum Frequency Range Sinewave

0.001Hz

Minimum Frequency Range Square Pulse and Arbitrary Waveform

0.001 Hz

Digital Frequency

Yes

Maximum Frequency Range Triangle/Saw

2MHz

Minimum Frequency Range Triangle/Saw

0.001Hz

Internal Linear and Log Sweep

Yes

Interface Type

Ethernet, USB

Maximum Operating Temperature

+40°C

Frequency Range Square Pulse and Arbitrary Waveform

0.001 Hz → 10 MHz

Length

190mm

Minimum Operating Temperature

0°C

Height

130mm

Plug Type

RJ45

Dimensions

190 x 227 x 130mm

Model Number

GX 310-P

Weight

2.9kg

Digital Amplitude and Offset

Yes

Width

227mm

สถานะRoHS: ไม่สามารถใช้ได้

COO (Country of Origin):
FR

Metrix GX Series Function Generators GX 305, GX 310, GX 320


Metrix GX Series function generators are versatile, high-performance instruments for education, scientific research and electronic product design. They can be used to generate a variety of signals including waveforms, sine, triangle, square & LOGIC and TTL output. Metrix GX uses Direct Digital Synthesis (DDS) technology which greatly enhances frequency accuracy and stability. Alternating standard form wave generator models 5MHz, GX 305 ( 879-3823 ) and 10MHz, GX 310 ( 879-3826 ) are designed for education & training, R&D and test & production. Model 20MHz, GX 320 ( 879-3839 ) has additional functions including: internal and external AM & FM modulation, GATE, BURST, FSK and PSK; adjustable phase synchronisation of several generators in a cascade arrangement; storage of 15 complete instrument configurations. Models 10MHz GX 310-P ( 879-3820 ) and 20MHz GX 320-E ( 879-3832 ) are fully-programmable, with SCPI standard USB link (USB cable supplied). GX 320-E also has an Ethernet link (Ethernet cable supplied).

DDS technology and frequency accuracy of ± 20 ppm
Frequency adjustment stable to the nearest digit
"LOGIC signal" function for direct adjustment of high and low levels
LIN or LOG sweep, triangle or sawtooth, with adjustable duration from 10 ms to 100 s
LCD screen large (125mm x 45mm) and easy-to-read (5 digits, 20mm high)
100 MHz frequency meter, 300 V CAT I

Supplied with

Mains power lead, CD-Rom containing operating manual in 5 languages, programming manual (in French and English), Labwindows CVI / LabView drivers, USB A/B cable (GX 310-P & GX 320-E only), straight Ethernet cable (GX 320-E only)
