- RS Stock No.:
- 172-3027
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 8.07.10 J-Trace Isolator
- ผู้ผลิต / Manufacturer:
- SEGGER
6 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB18,528.18
(exc. VAT)
THB19,825.15
(inc. VAT)
Units | Per unit |
1 + | THB18,528.18 |
- RS Stock No.:
- 172-3027
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 8.07.10 J-Trace Isolator
- ผู้ผลิต / Manufacturer:
- SEGGER
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

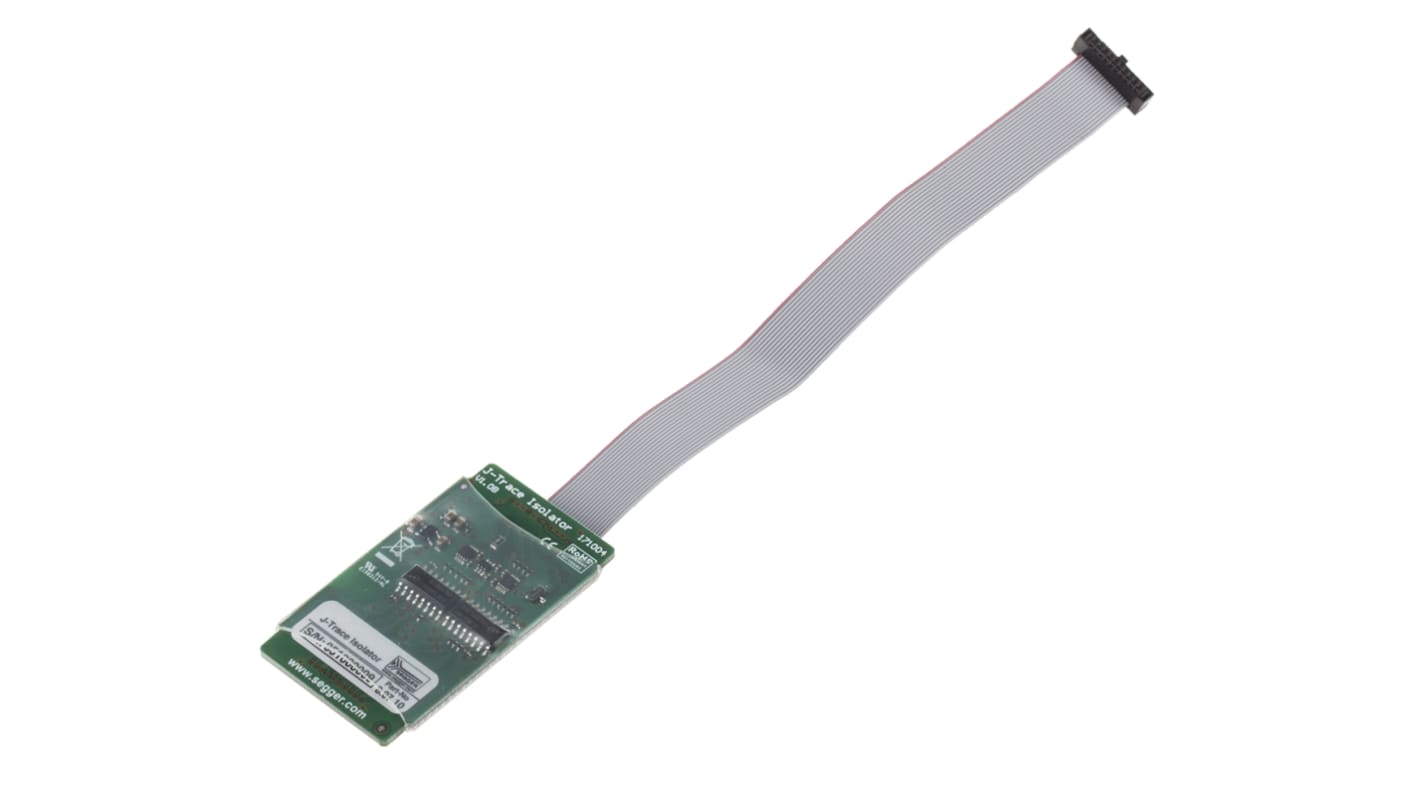

SEGGER Microcontroller J-Trace
The SEGGER Microcontroller KG J-Trace is an isolator. It can be connected between a J-Trace Pro V2 or any ARM-board that uses the standard 19-pin Cortex-M connector to provide electrical isolation while keeping high-speed peed trace capabilities. This is essential when the development tools are not connected to the same ground. It is useful to protect the development tools from electrical spikes that often occur in some applications.
Features and Benefits:
1 kV DC isolation
3 LEDs to indicate emulator power, target power and target RESET
ETM trace pins fully supported up to 75MHz trace clock
JTAG frequency: up to 50MHz
JTAG standard 19-pin connection supporting TDI, TMS, TCK, TDO, RESET and SWD/SWO signals
Powered from an emulator, a few microamps (<25μA) drawn from a target
SWD frequency: up to 4MHz
3 LEDs to indicate emulator power, target power and target RESET
ETM trace pins fully supported up to 75MHz trace clock
JTAG frequency: up to 50MHz
JTAG standard 19-pin connection supporting TDI, TMS, TCK, TDO, RESET and SWD/SWO signals
Powered from an emulator, a few microamps (<25μA) drawn from a target
SWD frequency: up to 4MHz
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
---|---|
Kit Name | J-Trace Isolator |
Product Type | Programmer |
For Use With | 19 Pin Cortex-M, ARM-Board |
