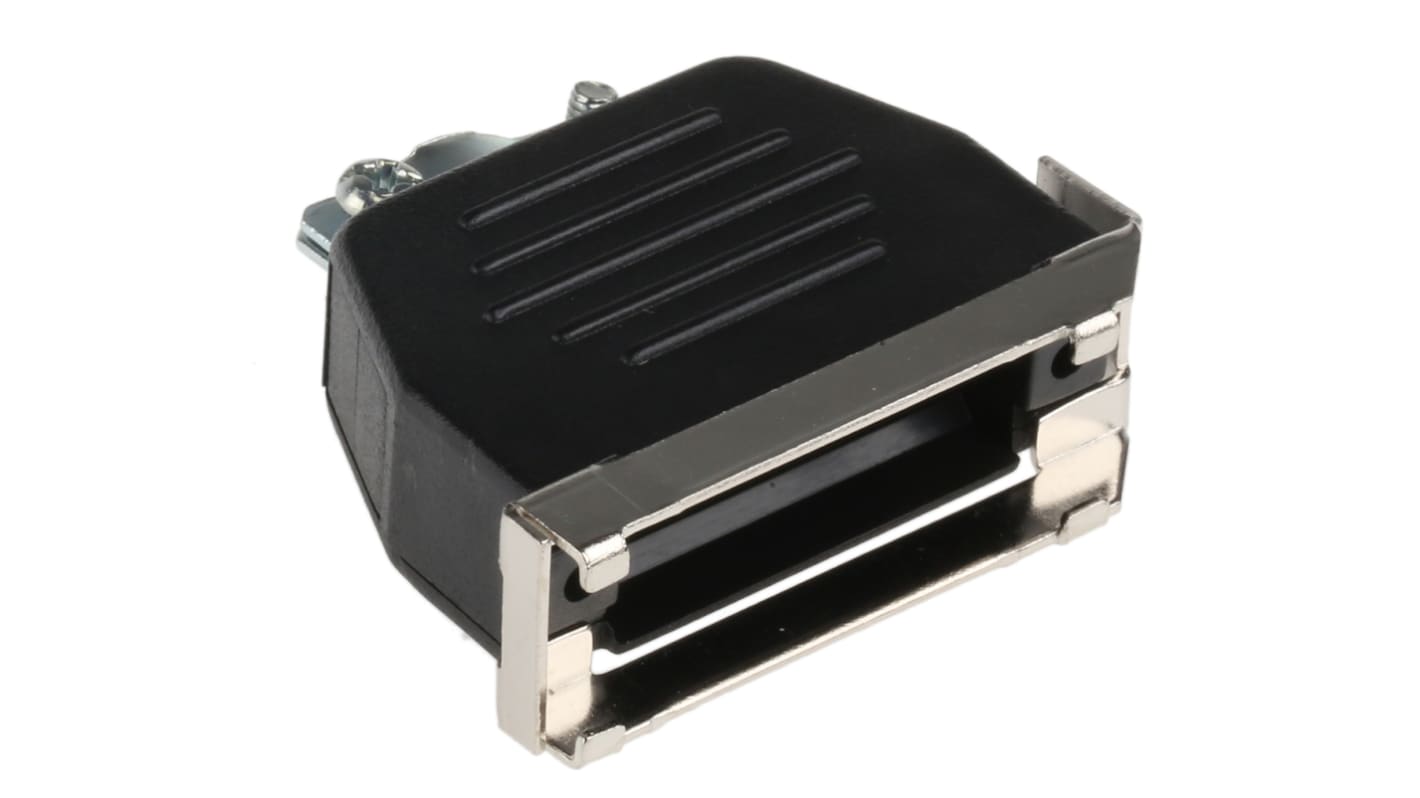

MH Connectors MHED Series Thermoplastic Angled, Straight D Sub Backshell, 15 Way, Strain Relief
- RS Stock No.:
- 719-5846
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DS15S
- ผู้ผลิต / Manufacturer:
- MH Connectors
587 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB189.14
(exc. VAT)
THB202.38
(inc. VAT)
| Units | Per unit |
| 1 - 24 | THB189.14 |
| 25 - 74 | THB183.47 |
| 75 - 199 | THB177.79 |
| 200 - 399 | THB174.00 |
| 400 + | THB170.21 |
- RS Stock No.:
- 719-5846
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- DS15S
- ผู้ผลิต / Manufacturer:
- MH Connectors
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- IN
รายละเอียดสินค้า / Product Details
D-Connector Latching Backshells
UL94V-0 rated backshell and latches providing secure connector coupling but, can be disengaged by pressing the sides
Includes a slide and spring, which when assembled will push-lock with latches (available separately) fitted either to equipment or other backshells in this range (requires 2 latches per coupling)
Includes cable clamp and knockouts for straight or side cable entry
Includes a slide and spring, which when assembled will push-lock with latches (available separately) fitted either to equipment or other backshells in this range (requires 2 latches per coupling)
Includes cable clamp and knockouts for straight or side cable entry
Note
10 latches provides for 5 plug/socket couplings
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Number of Contacts | 15 |
| Housing Material | Thermoplastic |
| D-Sub Shell Size | A |
| Body Orientation | Angled, Straight |
| Colour | Black |
| Strain Relief | Yes |
| Series | MHED |
