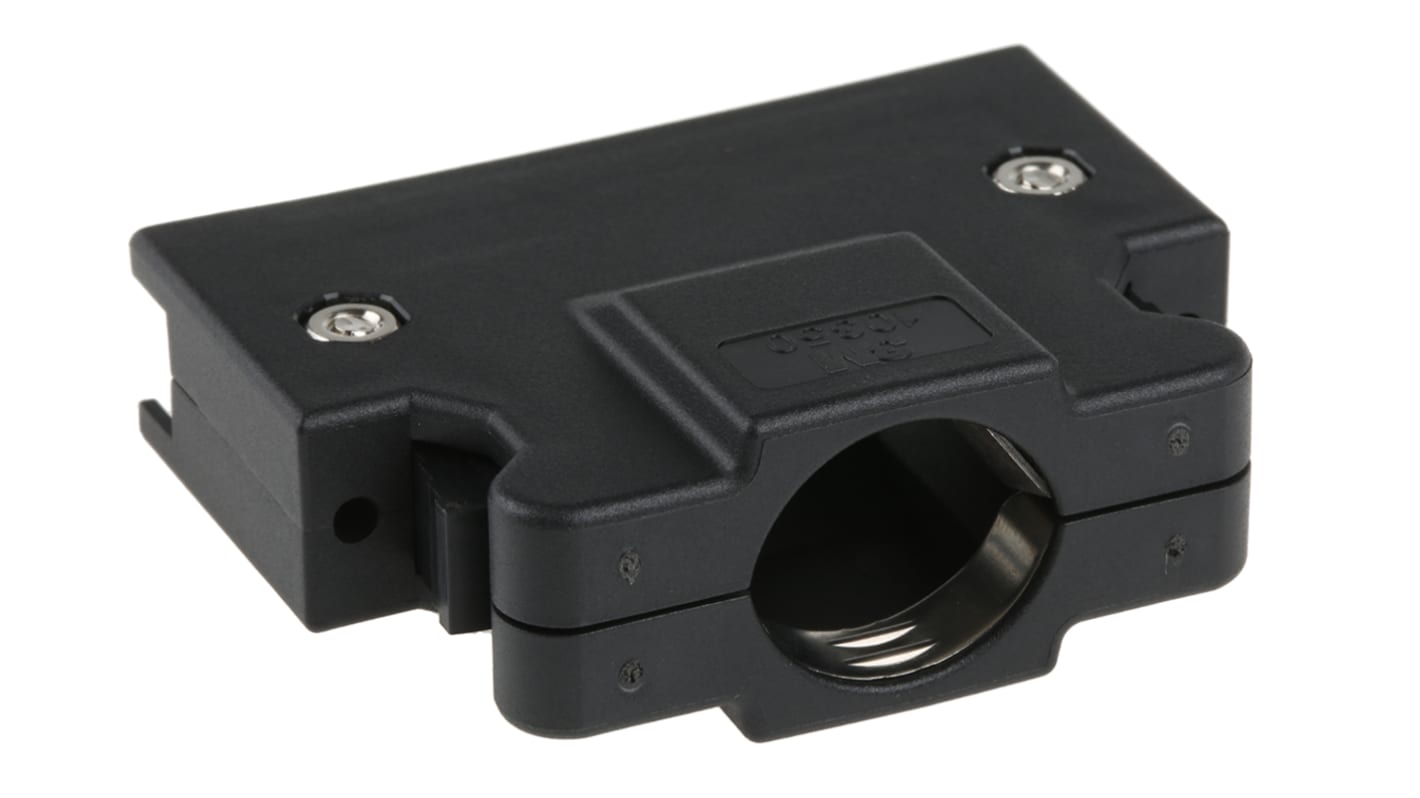

3M 103 Series PBT D-sub Connector Backshell, 50 Way, Strain Relief

  • RS Stock No. 299-4648
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. 10350-52F0-008
  • ผู้ผลิต / Manufacturer 3M
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
รายละเอียดสินค้า / Product Details

Plastic Backshells

This range of the 103 Series .050" Mini Delta Ribbon (MDR) Connectors Plastic Solder Plug Junction Shell - Non Shielded Backshells are available with Screw or Quick Release Latching Mechanism. The design of the 103 Series MDR Junction Shell features a two-piece glass reinforced Backshell with Ground Strap and a metal Strain Relief Clamp

Straight exit for round cables
Compatible with 101XX-3000PE Plug
Metal strain relief clamp provides grounding for cable shield

103xx-52F0-xxx = Quick Release Latching Mechanism
103xx-52A0-xxx = Jack Screw

//media.rs-online.com/t_line/L299458-01.gif

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Number of Contacts 50
D-Sub Shell Size D
Housing Material PBT
Body Orientation Straight
Colour Black
Strain Relief Yes
Series 103
60 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB 321.88
(exc. VAT)
THB 344.41
(inc. VAT)
Units
Per unit
1 - 24
THB321.88
25 - 74
THB305.62
75 - 199
THB288.53
200 - 399
THB270.53
400 +
THB260.71
