Phoenix Contact PACT RCP Series Rogowski Coil Current Transformer, 4000A Input, 0 → 21 mA Output
- RS Stock No.:
- 174-3480
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2906232
- ผู้ผลิต / Manufacturer:
- Phoenix Contact
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
- RS Stock No.:
- 174-3480
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- 2906232
- ผู้ผลิต / Manufacturer:
- Phoenix Contact
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- DE
รายละเอียดสินค้า / Product Details

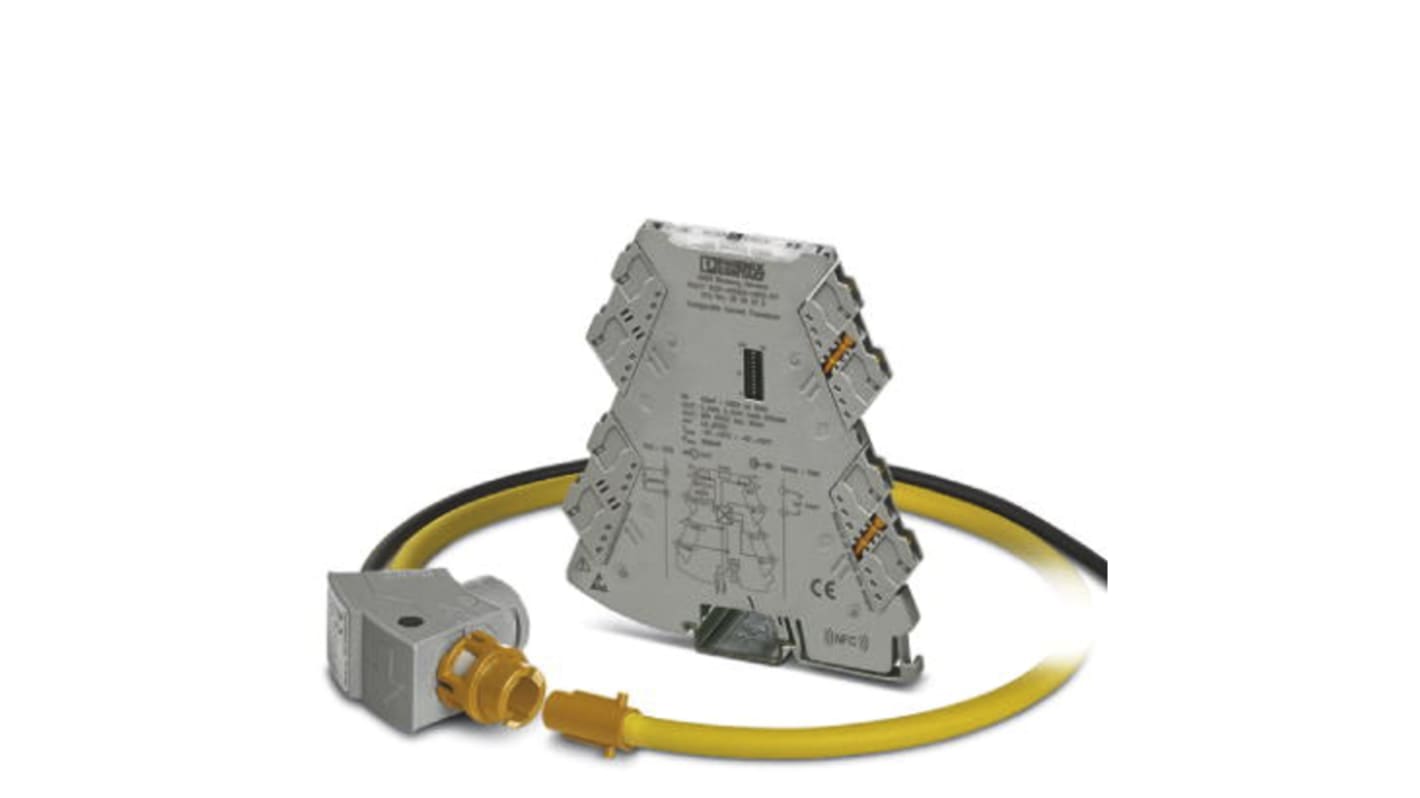

Set consisting of a 4-way signal conditioner with screw connection technology and a Rogowski coil 450 mm in length/140 mm in diameter for AC current measurement on busbars and power lines. The signal conditioner outputs 8 different standard signals on the output side and has one switching output.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Transformer Type | Rogowski Coil |
| Sensor Technology | Closed Loop |
| Input Current | 4000A |
| Output Current | 0 → 21 mA |
| Overall Height | 120.5mm |
| Overall Width | 6.2mm |
| Overall Depth | 110.5mm |
| Minimum Temperature | -40 °C, -30°C |
| Maximum Temperature | +70 °C, +80°C |
| Mounting Type | DIN Rail |
| Series | PACT RCP |
| Dimensions | 6.2 x 110.5 x 120.5 mm |
| For Use With | Retrofitting |
