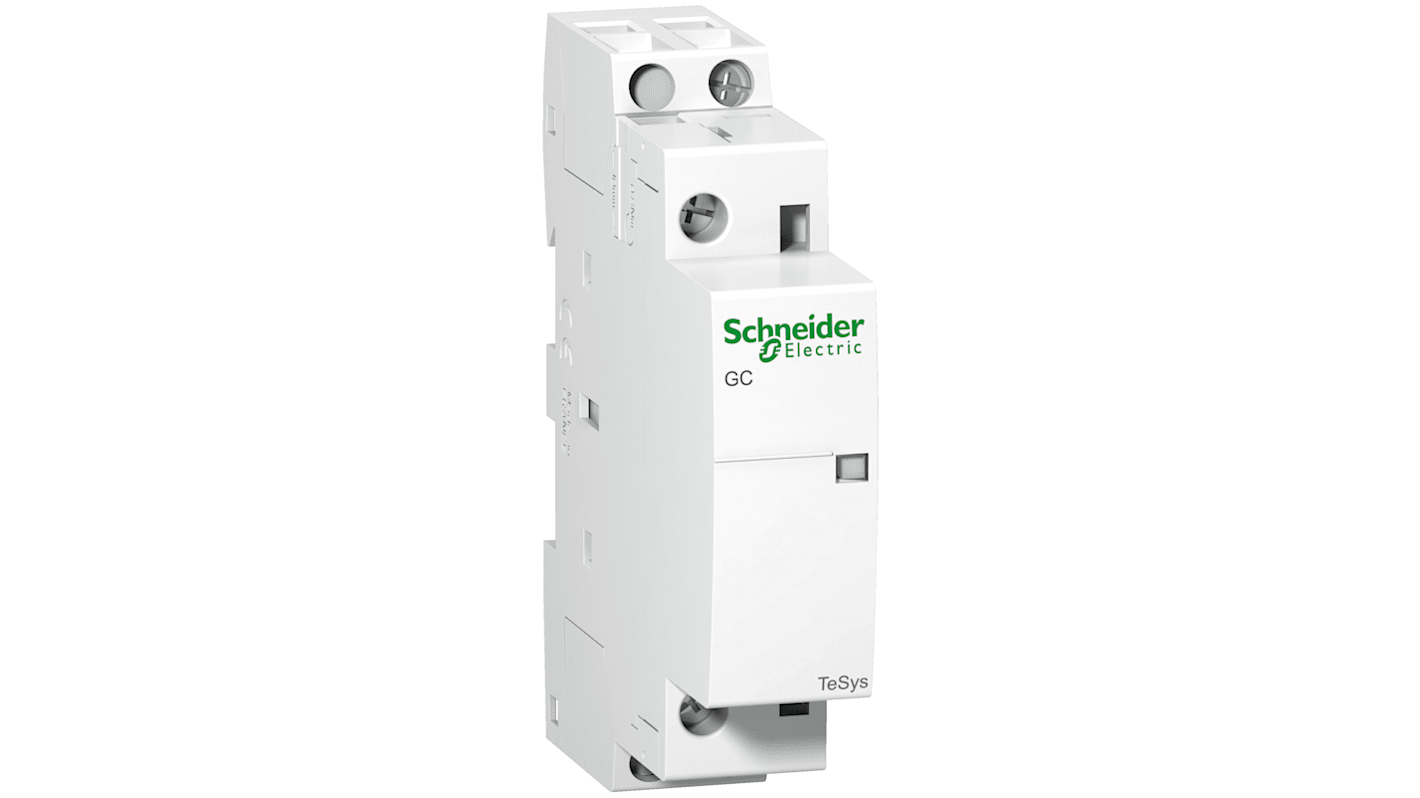

Schneider Electric GC16 Series Contactor, 230 V ac Coil, 1-Pole, 16 A, 1NO, 500 V ac
- RS Stock No.:
- 243-9753
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GC1610M5
- ผู้ผลิต / Manufacturer:
- Schneider Electric
15 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
13 มีของพร้อมจัดส่งจากคลังสินค้าทั่วโลก (Global stock) ภายใน (Within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB1,469.02
(exc. VAT)
THB1,571.85
(inc. VAT)
| Units | Per unit |
| 1 + | THB1,469.02 |
- RS Stock No.:
- 243-9753
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- GC1610M5
- ผู้ผลิต / Manufacturer:
- Schneider Electric
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
สถานะRoHS: ไม่สามารถใช้ได้
- COO (Country of Origin):
- FR
รายละเอียดสินค้า / Product Details
Schneider Electric TeSys GC Modular Contactors
TeSys GC Modular Contactors from Schneider Electric provides power switching in single phase, 3 or 4-phase loads. TeSys GC is a range of contactors that are safe, simple to use, and easy to install. The devices are compact in size and suitable for use in a wide variety of applications.
Features and Benefits
• Built-in auxiliary contacts for added switching capability
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Impulse relay function
• Day-night function
• Class-2 insulation: continuous safety for operators and unqualified personnel
• Screw connections: IP20 finger-safe terminals with both North American and International terminal markings
• Can be panel mounted with screws or DIN Rail mounted
• Impulse relay function
• Day-night function
• Class-2 insulation: continuous safety for operators and unqualified personnel
What does the utilisation category AC1 and AC3 mean for the TeSys contactors?
Contactor utilisation categories define the current making and breaking values, based on the type of load to be controlled and the operating cycle conditions.
AC-1: This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution.
AC-3: This applies to squirrel cage motors where breaking occurs while the motor is running.
Example of use: all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units.
Is the TeSys GC range a double break pole type contactor?
Yes the Tesys GC range uses linear translation movement that provides double breaking of the poles.
Schneider Electric Modular Contactors
Low noise a.c. compact modular contactors and accessories are ideal for heating lighting and building service type applications. The units are designed for mounting in control panels or cabinets on symmetrical DIN rail or they may be housed in modular enclosures.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Coil Voltage | 230 V ac |
| Number of Poles | 1 |
| Contact Voltage Rating | 500 V ac |
| Contact Current Rating | 16 A |
| Range | TeSys GC |
| Series | GC16 |
| Normal State Configuration | 1NO |
| Number Of Auxiliary Contacts | 1 |
| Terminal Type | Screw |
| Width | 17.5mm |
| Length | 81mm |
| Depth | 65mm |
| Minimum Operating Temperature | -5°C |
| Maximum Operating Temperature | +50°C |
