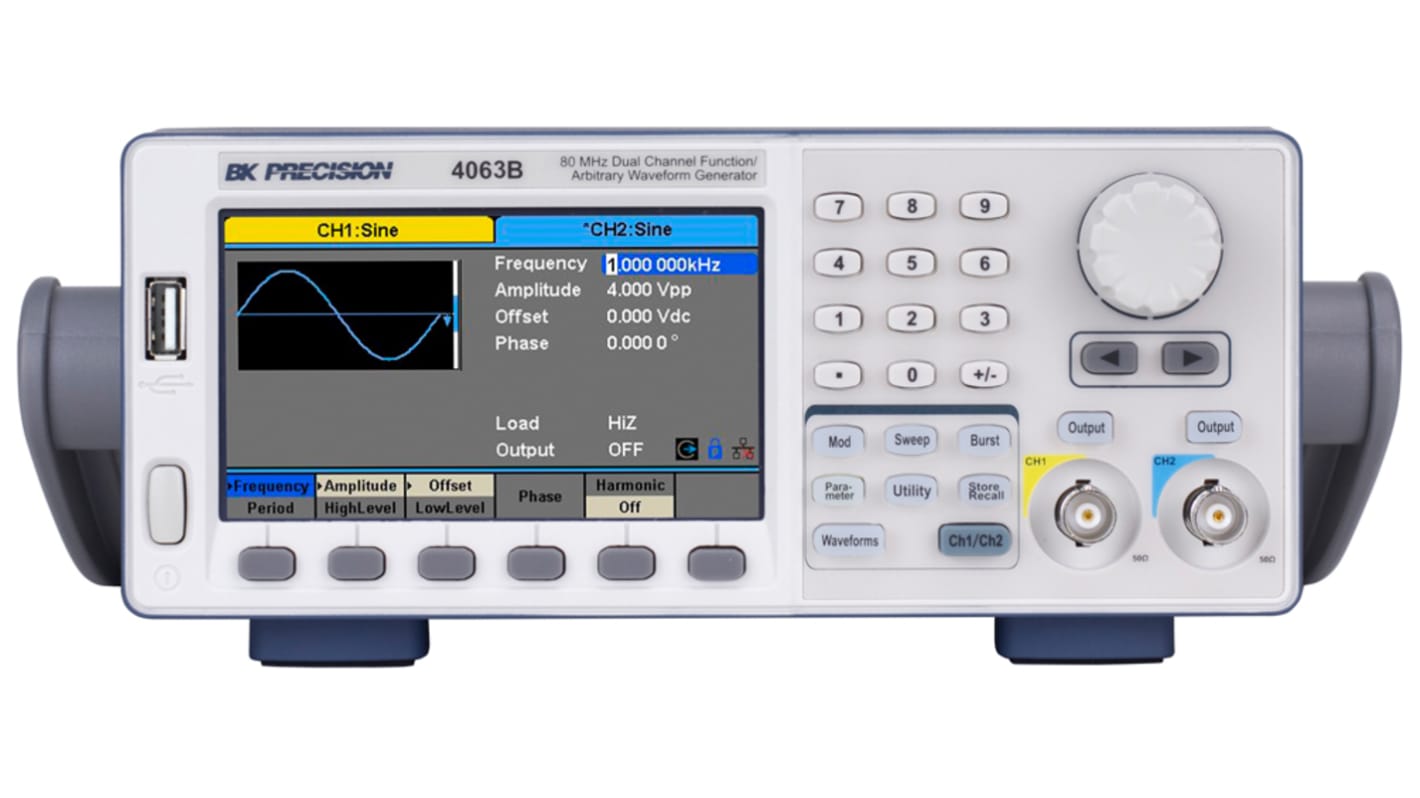

BK Precision 4063B Arbitrary Waveform Generator, 1 μHz Min
- RS Stock No.:
- 197-8458
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BK4063B
- ผู้ผลิต / Manufacturer:
- BK Precision
สินค้าหมดชั่วคราว (Temporarily out of stock) - จะเป็นแบ๊คออเดอร์จัดส่ง (back order for despatch) 09/07/2024, จัดส่งภายใน (delivery within) 4-6 วันทำการ (working days)
เพิ่ม / Added
ราคา / Price Each
THB62,893.46
(exc. VAT)
THB67,296.00
(inc. VAT)
| Units | Per unit |
| 1 + | THB62,893.46 |
- RS Stock No.:
- 197-8458
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- BK4063B
- ผู้ผลิต / Manufacturer:
- BK Precision
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- CN
รายละเอียดสินค้า / Product Details
The BK4060B Series Dual Channel Function/Arbitrary Waveform Generators are capable of generating stable and precise sine, square, triangle, pulse, and arbitrary waveforms. This series combines the cost saving benefits of DDS and true point-by-point arbitrary architectures to meet a wide range of applications that require high signal fidelity and low jitter arbitrary waveforms. Three models are available: BK4062B (40 MHz), BK4063B (80 MHz) and BK4064B (120 MHz).
With an easy-to-read color display and intuitive user interface with numeric keypad, these instruments offer plenty of features including linear/logarithmic sweep, burst mode, and variable DC offset. Generate custom arbitrary waveforms using the included application software, or select from the 196 built-in arbitrary waveforms.
Features:
300 MSa/s (DDS), 75 MSa/s (true point-by-point) arbitrary waveform generator
Up to 1.2 GSa/s sample rate for sine, square, triangle, and pulse waveforms
16-bit resolution, 8 Mpt arbitrary waveform length
Two independent channels with one button phase synchronization
Channel copy, track, and waveform combine functions
4.3-inch touch screen display
Linear and logarithmic sweep
AM/DSB-AM/FM/PM/PSK/FSK/ASK and PWM modulation types
Variable DC offset
Overvoltage protection
Internal/external triggering
Gate and burst mode
196 built-in predefined arbitrary waveforms
Frequency counter
LAN and USB device (USBTMC-compliant) with front panel USB host port
GPIB connectivity with optional USB-to-GPIB adapter (model AK40G)
LabVIEW drivers available
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Minimum Frequency | 1 μHz |
| Maximum Sampling Frequency | 1200Msps |
| Resolution | 4 digit |
| Arbitrary Waveforms | Yes |
| Minimum Operating Temperature | 0°C |
| Interface Type | LAN, USB |
| Connector Type | BNC |
| Height | 107.2mm |
| Length | 295mm |
| Inputs | Modulation In |
| Dimensions | 260.3 x 107.2 x 295mm |
| Model Number p | 4063B |
| Weight | 3.4kg |
| Maximum Operating Temperature | +40°C |
| Sweep | Linear, Logarithmic |
