Registration Sensors

Registration sensors, sometimes referred to as contrast sensors, are sensors designed to detect the differentials of either light intensity, colour or some other contrast factor. As such they are considered vital when ensuring consistency or triggering machine processes in automated manufacturing. For example, an automated cutter might be triggered to cut at the detection of certain colour change in the material that is being cut.

The sensors are usually programmable to the user's requirements, often with the ability to set specific registration marks, and can be optimised for high-speed industrial production applications. Wherever precisely triggered actions are needed to respond to set parameters, registration sensors are usually an integral part of the control system.

What is the difference between colour sensors and contrast sensors?

Able to respond to the difference in the consistency of a material surface, contrast sensors can usually be programmed with an easy to use 'teach' function that allows the sensor to recognise both the mark and the background. As they are generally lightweight and easy to use, they are employed in a variety of mass production applications. Colour sensors essentially fulfil the same purpose as contrast sensors and in much the same way, except they are designed to recognise a specific colour, which may make them more suitable for tasks where the material being sensed has a distinctive colour markings.

What are light intensity sensors?

Light intensity sensors, or luminescence sensors, are designed to detect differences in the levels of light on a surface. While they can be used in much the same way as colour or contrast sensors, they are not able to specifically detect a certain colour or contrast in colour, but differences in light levels. As such, they are suited to more specialist environments and materials.


...
อ่านเพิ่มเติม อ่านน้อยกว่า

คัดกรอง / Filters

กำลังดูสินค้า 1 - 20 รายการจาก 87 รายการ / Viewing 1 - 20 of 87 products
ผลการค้นหาต่อหน้า / Results Per Page
รายละเอียดสินค้า / Description ราคา / Price Detection Range Light Source Output Type Maximum Current Switching Frequency Electrical Connection Communication Protocol Supply Voltage Terminal Type Housing Material Series IP Rating Interface Minimum Operating Temperature
RS Stock No. 741-7663
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KT5W-2N1116
Brand :Sick
THB14,513.60
Each
Units
10 mm RGB LED NPN 100 mA 10 kHz M12 Connector - 10 → 30 V dc 5-Pin Connector Die Cast Zinc KT5W IP67 - -10°C
RS Stock No. 711-4806
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.011.03
Brand :Finder
THB1,024.98
Each
Units
- - - - - Cable - 300/500 V - PVC 11 Series IP66, IP67 - -40°C
RS Stock No. 741-7679
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.WFS3-40N415
Brand :Sick
THB4,925.73
Each
Units
3 mm Infrared LED NPN 100 mA 10 kHz 4-Pin M8 Connector - 10 → 30 V - Polyamide WFS3 IP65 - -20°C
RS Stock No. 800-4025
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTM-WN11181P
Brand :Sick
THB8,578.17
Each
Units
12.5 mm Blue LED, Green LED, Red LED NPN 100 mA 15 kHz 4-Pin M8 Connector - 12 → 24 V dc - ABS KTM IP67 - -10°C
RS Stock No. 263-8427
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KT5G-2N1111
Brand :Sick
THB12,934.40
Each
Units
10 mm Green LED NPN 100 mA 10 kHz M12 Connector - 10 → 30 V dc - Die Cast Zinc KT5G IP67 - -10°C
RS Stock No. 741-7666
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KT5W-2P1116
Brand :Sick
THB14,513.60
Each
Units
10 mm RGB LED PNP 100 mA 10 kHz M12 Connector - 10 → 30 V dc 5-Pin Connector Die Cast Zinc KT5W IP67 - -10°C
RS Stock No. 902-7127
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.BOS 12M-PS-RD10-02
Brand :BALLUFF
THB2,859.03
Each
Units
1 → 250 mm Red LED PNP 100 mA 1 kHz Cable - 10 → 30 V dc Cable Nickel Plated Brass BOS 12M IP67 - -5°C
RS Stock No. 800-4022
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTM-WP11181P
Brand :Sick
THB5,755.24
Each
Units
12.5 mm Blue LED, Green LED, Red LED PNP 100 mA 15 kHz 4-Pin M8 Connector - 12 → 24 V dc - ABS KTM IP67 - -10°C
RS Stock No. 124-3791
Brand :BALLUFF
THB3,339.54
Each
Units
0 → 700 mm Infrared PNP 100 mA 1 kHz 4-Pin M12 Connector - 10 → 30 V 4-Pin Connector PBT BOS 18KF IP67 - -25°C
RS Stock No. 902-7111
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.BOS 12M-PS-RD11-S4
Brand :BALLUFF
THB2,555.18
Each
Units
1 → 100 mm Red LED PNP 100 mA 1 kHz M12 Connector - 10 → 30 V dc Connecter Nickel Plated Brass BOS 12M IP67 - -5°C
RS Stock No. 180-6341
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTX-WN91141242ZZZZZZZZZZZZZZZ1
Brand :Sick
THB15,792.00
Each
Units
13 mm RGB LED NPN 100 mA 50 kHz M12 Male Connector - 10.8 → 28.8 V dc M12 Male 4-pin Connector Vistal KTX IP67 - -20°C
ใหม่ / New
RS Stock No. 213-1775
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTX-WB9114125UZZZZ
Brand :Sick
THB17,522.44
Each
Units
13 mm - PUSH/PULL 100 mA 50 KHz Male Connector M12 - 10 → 30 V dc Male connector M12, 5-pin Plastic KTX Prime IP67 - -20°C
ใหม่ / New
RS Stock No. 213-1728
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.CSM-WN11122P
Brand :Sick
THB9,419.07
Each
Units

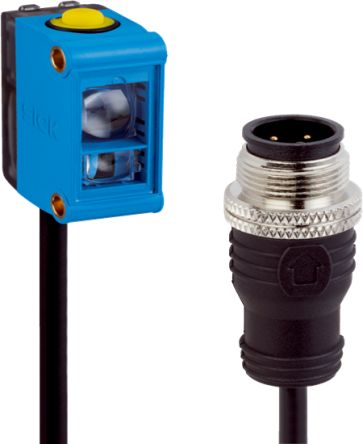

12.5 mm - NPN 100 mA 1.7 KHz Cable with M12 Male Connector - 12 → 24 V dc Cable With M12 Male Connector, 4-Pin Plastic CSM IP67 - -10°C
ใหม่ / New
RS Stock No. 213-1754
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTM-MP31182P
Brand :Sick
THB8,596.43
Each
Units

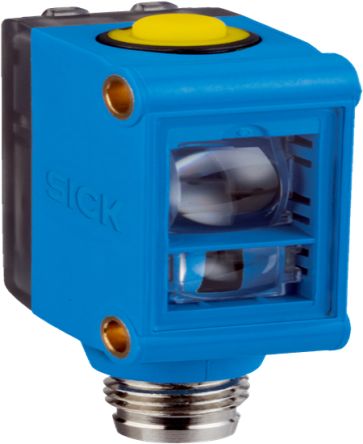

12.5 mm - PNP 50 mA 15 KHz Cable with M12 Male Connector - 12 → 24 V dc Cable With M12 Male Connector, 4-Pin Plastic KTM Prime IP67 - -10°C
ใหม่ / New
RS Stock No. 213-1765
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTS-WB91241152ZZZZ
Brand :Sick
THB16,494.14
Each
Units
25 mm - PUSH/PULL 100 mA 50 KHz Male connector M12 - 10 → 30 V dc Male connector M12, 5-pin Plastic KTS Prime IP67 - -20°C
ใหม่ / New
RS Stock No. 213-1790
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.LUT8U-11321
Brand :Sick
THB38,828.51
Each
Units
50 mm - NPN, PNP 100 mA 2.5 KHz Male Connector M12 - 10 → 30 V dc Male connector M12, 5-pin Metal LUT8 IP67 - -10°C
RS Stock No. 741-7660
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.WFS3-40P415
Brand :Sick
THB4,925.73
Each
Units
3 mm Infrared LED PNP 100 mA 10 kHz 4-Pin M8 Connector - 10 → 30 V - Polyamide WFS3 IP65 - -20°C
RS Stock No. 902-7114
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.BOS 12M-PS-RD12-S4
Brand :BALLUFF
THB2,555.18
Each
Units
1 → 200 mm Red LED PNP 100 mA 1 kHz M12 Connector - 10 → 30 V dc Connecter Nickel Plated Brass BOS 12M IP67 - -5°C
RS Stock No. 800-4013
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTM-MB31111P
Brand :Sick
THB6,748.53
Each
Units
12.5 mm White LED NPN, PNP 100 mA 10 kHz 4-Pin M8 Connector - 12 → 24 V dc - ABS KTM IP67 - -10°C
ใหม่ / New
RS Stock No. 213-1759
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.KTM-WP11171P
Brand :Sick
THB8,802.09
Each
Units
12.5 mm - PNP 50 mA 15 KHz Male Connector M8 - 10 → 30 V dc Male Connector M8, 4-Pin Plastic KTM Prime IP67 - -10°C
