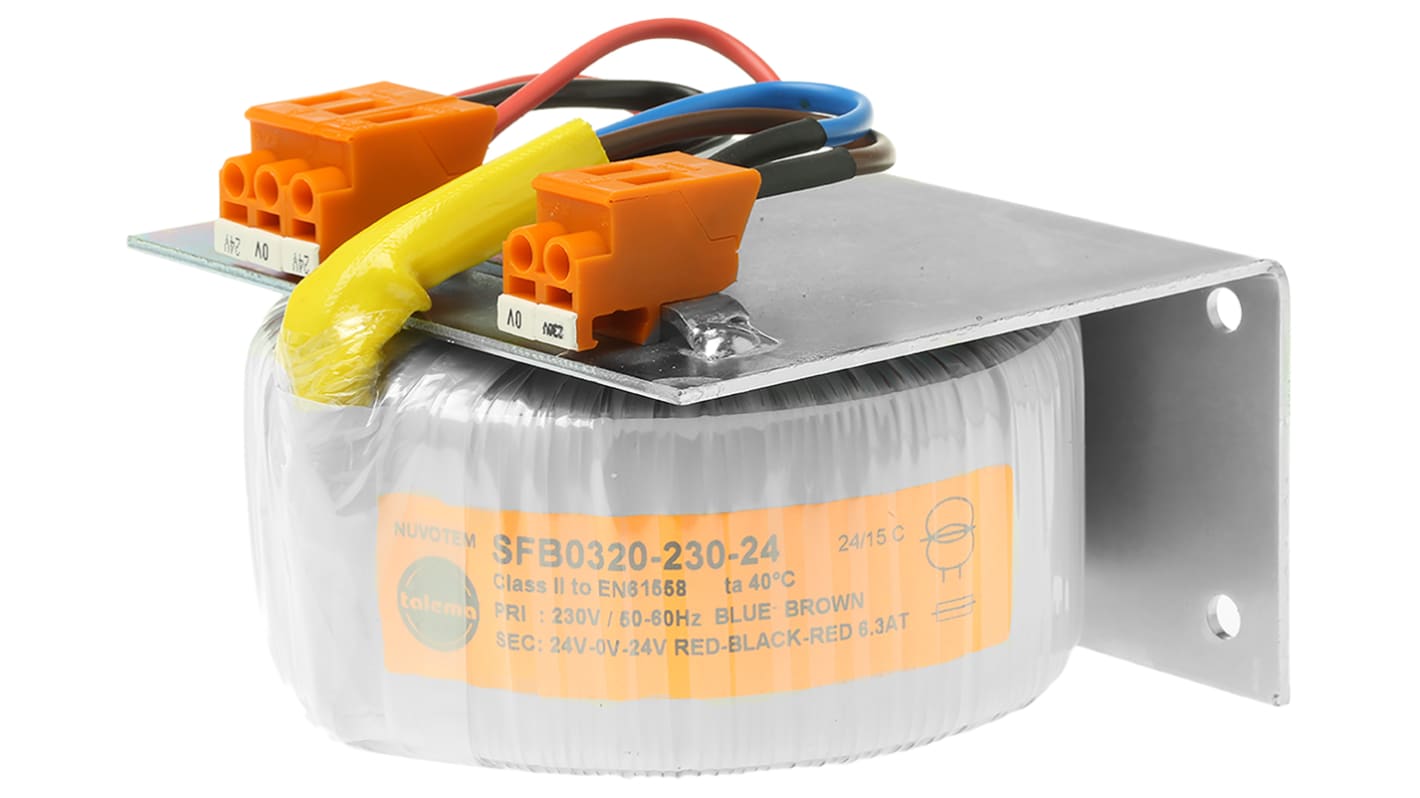

1 Output Toroidal Transformer, 320VA, ±24V ac

  • RS Stock No. 310-3180
  • หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No. SFB0320-230-24
  • ผู้ผลิต / Manufacturer Nuvotem Talema
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
RoHS Certificate of Compliance
COO (Country of Origin): CZ
รายละเอียดสินค้า / Product Details

Control Panel Toroidal SFB Series

High quality toroidal isolating transformers designed for use in control circuits and general purpose applications.

Vertical mounting on a zinc plated steel bracket
Small size and low weight compared with traditional lamination types
Fully shrouded screw terminals with permanent marking
Easy installation - mounting holes provided
Low radiated magnetic field
Very low induced noise (hum)
High quality manufacturing and testing in accordance to EN60742, EN60065, VDE0551, VDE0550 and BS415

Operating Temperature +40 °C Max Ambient
Number of primary windings 1 (230Vac or 400Vac)
Number of secondary windings 2
Construction Class 1
Overall insulation Class A (105°C)
Fixing hole diameter 6 mm

Approvals

VDE 0551; VDE 0550

Standards

EN60742; EN60065; BS415

Toroidal

High quality toroidal isolating transformers designed for use in control circuits and general purpose applications.

คุณสมบัติ / Specifications
คุณสมบัติ Value
Primary Voltage Rating 230V ac
Secondary Voltage Rating ±24V ac
Power Rating 320VA
Number of Outputs 1
Secondary Current 6.667A
Weight 2.5kg
Dimensions 117 x 105 x 63mm
Mounting Type Chassis
Fixing Hole Diameter M6
10 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 5 - 8 วันทำการ (working days)
ราคา / Price Each
THB 3,125.33
(exc. VAT)
THB 3,344.10
(inc. VAT)
Units
Per unit
1 - 9
THB3,125.33
10 - 24
THB2,968.77
25 - 49
THB2,886.65
50 - 99
THB2,801.59
100 +
THB2,713.87
