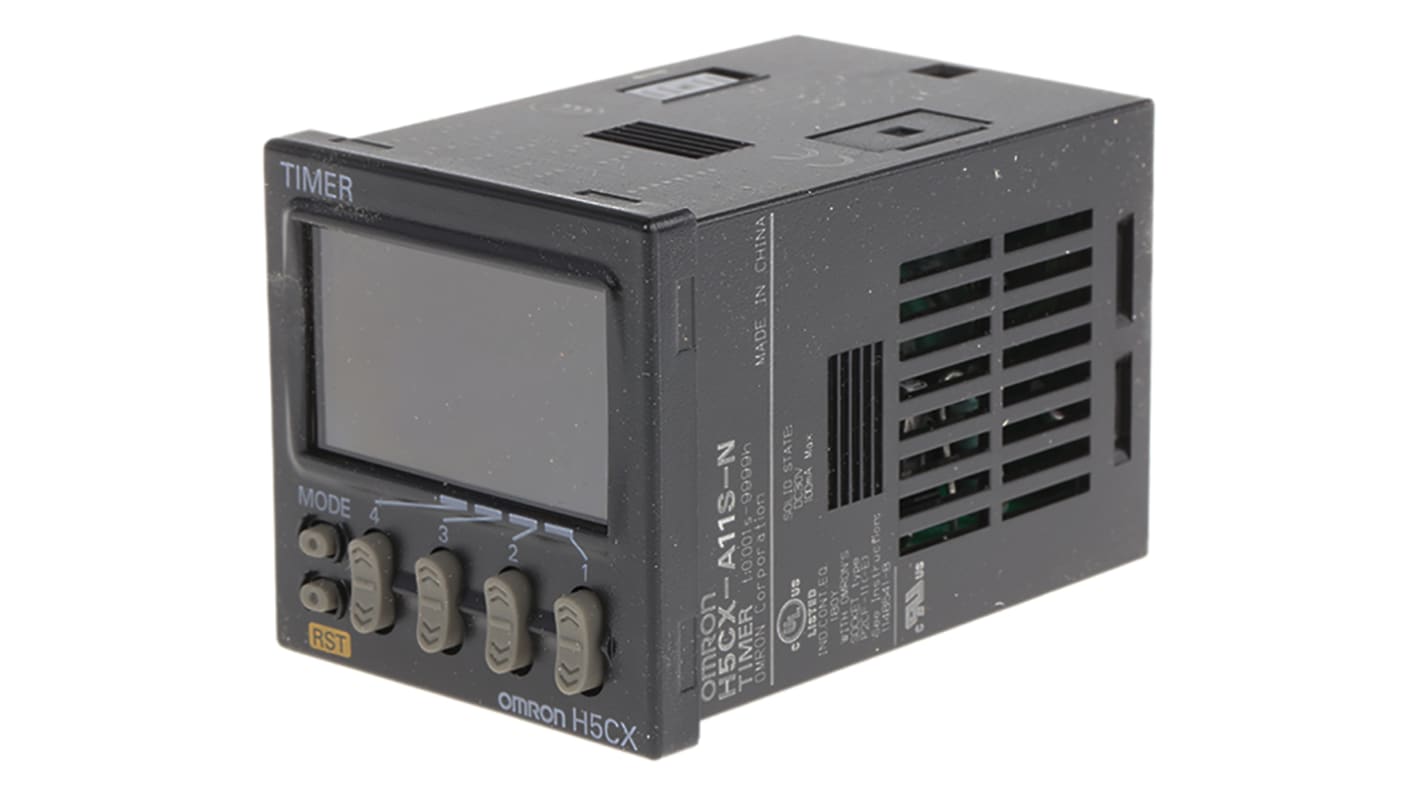

Omron H5CX Series Panel Mount Timer Relay, 100 → 240V ac, 1-Contact, 0.001 s → 9999h

RS Stock No.:: 687-6121
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H5CX-A11S-N
ผู้ผลิต / Manufacturer:: Omron

Omron H5CX Series Panel Mount Timer Relay, 100 → 240V ac, 1-Contact, 0.001 s → 9999h

ราคา / Price Each**

THB10,143.73

(ไม่รวมภาษีมูลค่าเพิ่ม)

THB10,853.79

(รวมภาษีมูลค่าเพิ่ม)

2 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)*

* วันที่จัดส่งอาจเปลี่ยนแปลงได้ตามจำนวนสินค้าที่คุณเลือกหรือที่อยู่จัดส่งของคุณ

ฟรี ค่าจัดส่งสำหรับการสั่งซื้อมากกว่า THB2,500.00 (ไม่รวมภาษี)

เช็คสต็อกแบบเรียลไทม์ / Real time qty checker

ชิ้น	ต่อหน่วย
1 +	THB10,143.73

**ตัวบ่งบอกราคา / price indicative

RS Stock No.:: 687-6121
หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:: H5CX-A11S-N
ผู้ผลิต / Manufacturer:: Omron

Brochure - H5CX

ล็อกอินเพื่อดูโมเดล CAD

Omron H5CX Series Timer Relay, 12 to 24V AC/DC Supply Voltage, 11-Pin Connector Terminal - H5CX-A11SD-N

This timer relay is a reliable digital device designed for precise control in various automation systems. The compact model measures 48mm in width and depth, making it ideal for installation in panel mounts. It operates within a supply voltage range of 12 to 24 V AC/DC and features multiple timer functions, providing flexibility for users in controlling electrical circuits.

Features & Benefits

• Cumulative and interval settings enhance operational flexibility
• Switchable display colours improve visibility from a distance
• Power ON delay function helps prevent unexpected outputs
• Multi-function capability accommodates diverse timing needs
• SPDT relay configuration supports multiple requirement

Applications

• Used with machinery to automate operational tasks
• Suitable for HVAC control to manage timing sequences
• Ideal for lighting systems requiring timed operation
• Utilised in industrial processes to monitor and adjust cycles
• Effective in automated tests ensuring precise timing operations

What is the range for setting time increments?

The timer relay supports a time range from 0.001 seconds up to 9999 hours, allowing extensive flexibility for various applications. This wide range ensures it can handle both short and long timing requirements effectively.

How does the product enhance safety during operation?

The timer's isolated power supply and input circuits prevent possible electrical interference and potential hazards, which is crucial for safe operation in industrial environments. This isolation helps mitigate risks associated with circuit malfunctions.

What input types can be connected?

It accepts both voltage inputs (PNP) and no-voltage inputs (NPN), providing flexibility for compatibility with different sensor types. This versatility makes it easy to integrate into existing systems.

Can the display be adjusted for better visibility?

Yes, the timer relay features a switchable present value display that can cycle through red, green, and orange colours, enhancing visibility based on the user's environment and preferences.

How does the timer maintain its accuracy under varying conditions?

The timer relay is designed to operate accurately with minimal time drift, featuring a power-on start accuracy of ±0.01% and reliability under pre-specified temperature ranges, ensuring consistent performance in varied conditions.

คุณสมบัติ	Value
Supply Voltage	100 → 240V ac
Mounting Type	Panel Mount
Mode of Operation	Cumulative, Interval, ON/OFF Duty Adjustable Flicker, Power ON Delay, Repeat Cycle, Signal OFF Delay, Signal ON Delay, Stopwatch
Time Range	0.001 s → 9999h
Number of Contacts	1
Number of Timer Functions	Multi Function
Time Increment	Hours, Seconds
Terminal Type	11-Pin Connector
Switch Configuration	SPDT
Power Supply	External
Width	48mm
Length	48mm
Depth	63.7mm
Maximum Operating Temperature	+55°C
Series	H5CX
Minimum Operating Temperature	-10°C
