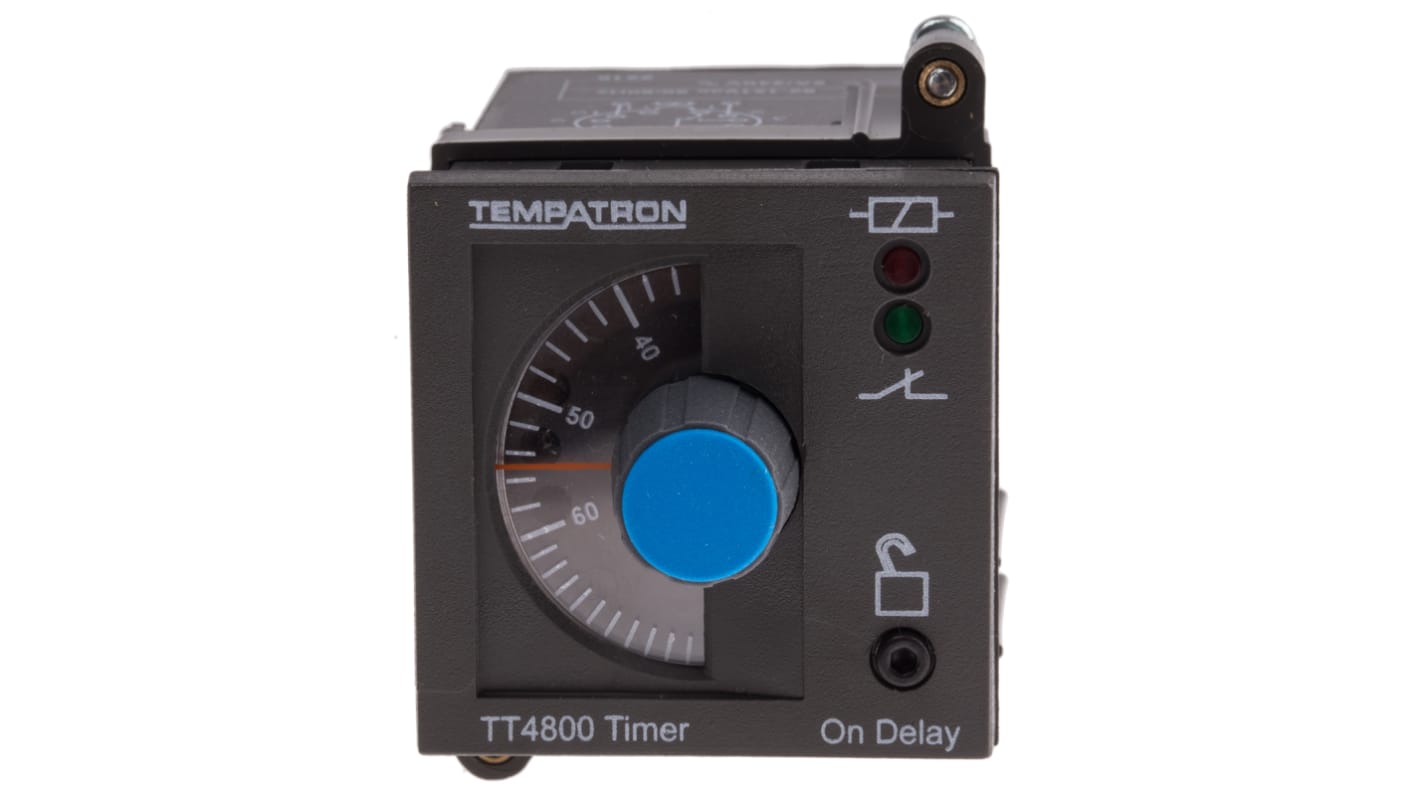

Tempatron TT4801 Series DIN Rail, Panel Mount Timer Relay, 110V ac, 2-Contact, 6 s → 6h, 1-Function, DPDT
- RS Stock No.:
- 217-1362
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TT4801-12
- ผู้ผลิต / Manufacturer:
- Tempatron
4 มีของพร้อมจัดส่งภายใน (In stock for delivery within) 4-6 วันทำการ (working days)
ราคา / Price Each
THB4,289.11
(exc. VAT)
THB4,589.35
(inc. VAT)
| Units | Per unit |
| 1 - 24 | THB4,289.11 |
| 25 - 49 | THB4,214.02 |
| 50 + | THB4,167.58 |
- RS Stock No.:
- 217-1362
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- TT4801-12
- ผู้ผลิต / Manufacturer:
- Tempatron
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
- COO (Country of Origin):
- GB
รายละเอียดสินค้า / Product Details
Electronic
Function 111
11 pin
Time range selectable by screwdriver from a rotary switch on the side of the module
Lockable dial to prevent tampering
Suitable for plug-in or panel mounting applications
AgCdo contact material
45 x 45mm panel cutout
11 pin
Time range selectable by screwdriver from a rotary switch on the side of the module
Lockable dial to prevent tampering
Suitable for plug-in or panel mounting applications
AgCdo contact material
45 x 45mm panel cutout
Standards
EN 50081-1, EN 50082-1, EN 61010-1.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Supply Voltage | 110V ac |
| Mounting Type | DIN Rail, Panel Mount |
| Mode of Operation | ON Delay Energise |
| Time Range | 6 s → 6h |
| Number of Contacts | 2 |
| Number of Timer Functions | Single |
| Contact Configuration | DPDT |
| Time Increment | Hours, Seconds |
| Maximum Current | 5A |
| Maximum Voltage | 30 V dc, 240V ac |
| Switch Configuration | DPDT |
| Terminal Type | 11-Pin Connector |
| Width | 48mm |
| Power Supply | External |
| Length | 48mm |
| Series | TT4801 |
| Depth | 106mm |
| Maximum Operating Temperature | +60°C |
| Minimum Operating Temperature | -10°C |
| Time Delay | (Reset) 100ms |
