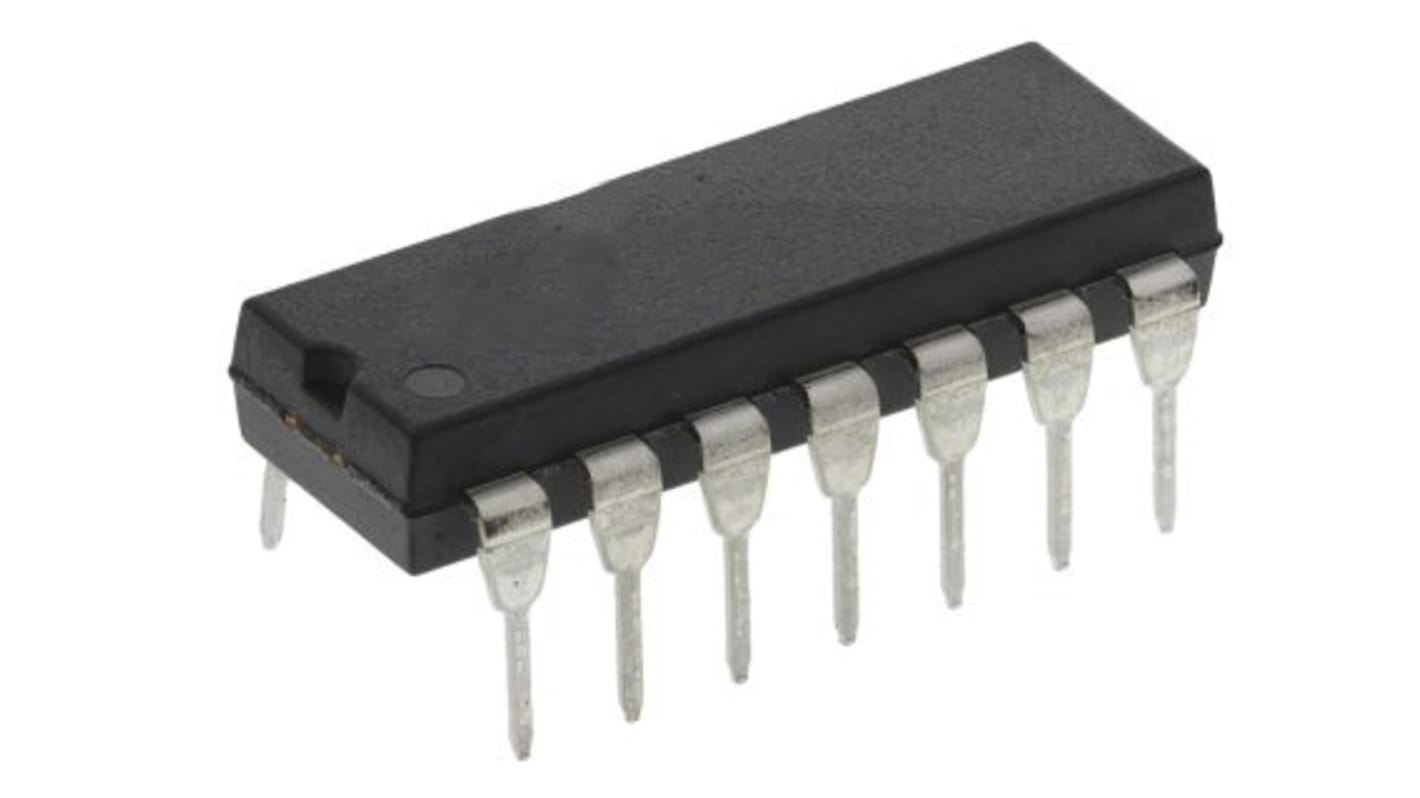

Maxim Integrated ICM7556IPD+, General Purpose Timer, Dual, 14-Pin PDIP
- RS Stock No.:
- 191-4848P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ICM7556IPD+
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ผลิตภัณฑ์ที่เลิกผลิตแล้ว
- RS Stock No.:
- 191-4848P
- หมายเลขชิ้นส่วนของผู้ผลิต / Mfr. Part No.:
- ICM7556IPD+
- ผู้ผลิต / Manufacturer:
- Maxim Integrated
ข้อมูลทางเทคนิค / Technical Data Sheets
Legislation and Compliance
รายละเอียดสินค้า / Product Details
Improved 2nd Source!
Wide Supply Voltage Range: 2-18V
No Crowbarring of Supply During Output Transition
Adjustable Duty Cycle
Low THRESHOLD, TRIGGER and RESET Currents
TTL Compatible
Monolithic, Low Power CMOS Design
Applications
Pulse Generator
Pulse Position Modulation
Precision Timing
Sequential Timing
Time Delay Generation
Missing Pulse Detector
Pulse Width Modulation
Wide Supply Voltage Range: 2-18V
No Crowbarring of Supply During Output Transition
Adjustable Duty Cycle
Low THRESHOLD, TRIGGER and RESET Currents
TTL Compatible
Monolithic, Low Power CMOS Design
Applications
Pulse Generator
Pulse Position Modulation
Precision Timing
Sequential Timing
Time Delay Generation
Missing Pulse Detector
Pulse Width Modulation
For products that are Customized and under Non-cancellable & Non-returnable, Sales & Conditions apply.
คุณสมบัติ / Specifications
คุณสมบัติ | Value |
|---|---|
| Mounting Type | Through Hole |
| Timer Type | Monolithic |
| Package Type | PDIP |
| Number of Internal Timers | 2 |
| Pin Count | 14 |
| Minimum Operating Supply Voltage | 2 V |
| Maximum Operating Supply Voltage | 16.5 V |
| Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | +85 °C |
| Maximum Low Level Output Current | 3.2mA |
| Maximum High Level Output Current | 2mA |
| Length | 19.43mm |
| Height | 4.45mm |
| Width | 7.87mm |
| Dimensions | 19.43 x 7.87 x 4.45mm |
