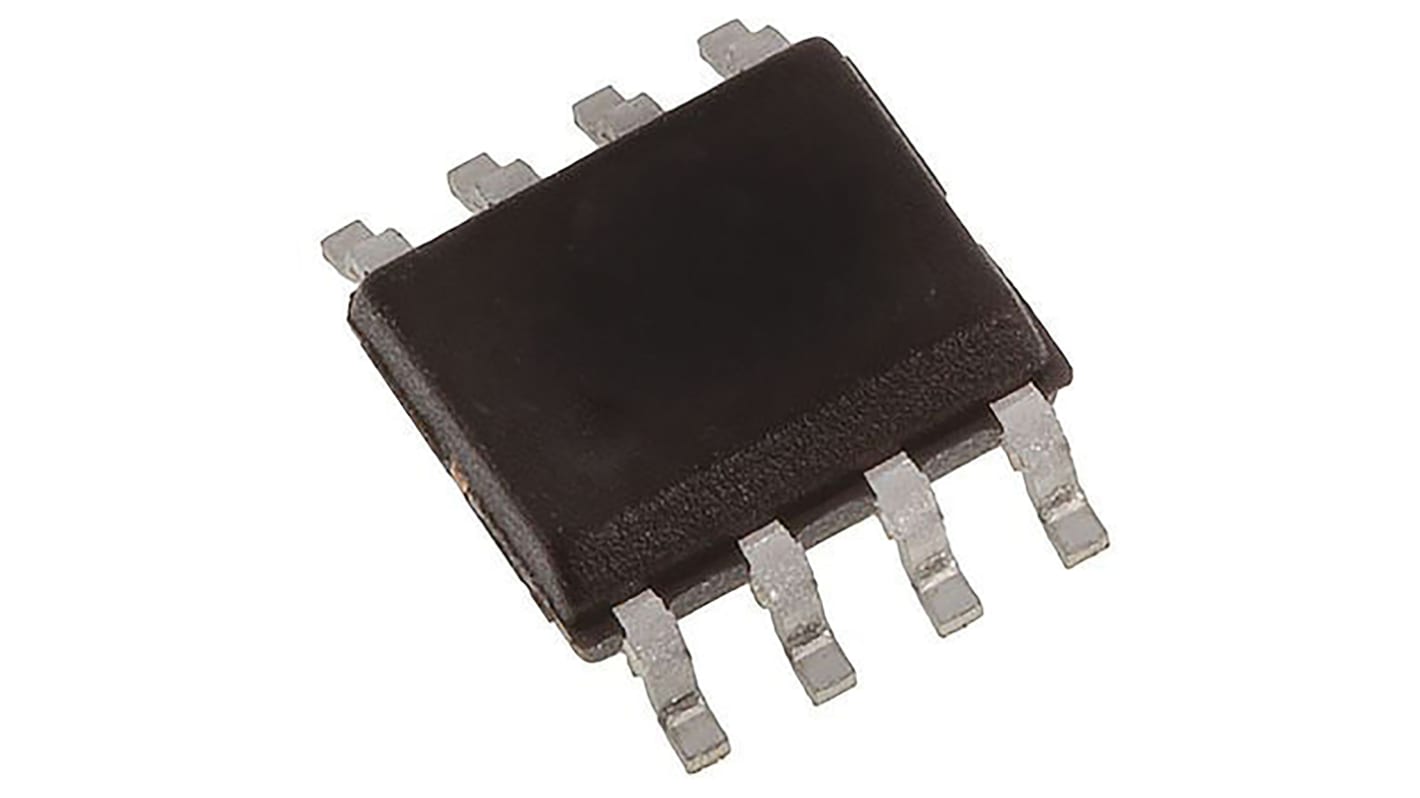

Maxim Integrated Temperature Sensor, Open Drain Output, Surface Mount, Serial-I2C, SMBus, ±3°C, 8 Pins

ดูหมวดหมู่นี้
ไม่พร้อมจำหน่าย
RS จะไม่สต็อกสินค้านี้อีกต่อไป
RS Stock No.:
122-3404
หมายเลขชิ้นส่วนของผู้ผลิต:
DS75LXS+
ผู้ผลิต:
Maxim Integrated
ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ
เลือกทั้งหมด

Brand

Maxim Integrated

Sensor Function

Temperature

Output Type

Open Drain

Interface Type

Serial-I2C, SMBus

Accuracy

±3°C

Mounting Type

Surface Mount

Pin Count

8

Operating Temperature Range

-55 to +125 °C

Minimum Operating Temperature

-55 °C

Maximum Operating Temperature

+125 °C

Minimum Operating Supply Voltage

1.7 V

Maximum Operating Supply Voltage

3.7 V

Package Type

SOIC

Length

5mm

Height

1.5mm

Width

4mm

Resolution

12 bit

Dimensions

5 x 4 x 1.5mm

DS75 Digital Thermometer & Thermostat


The DS75 is a temperature-to-digital converter with an over-temperature alarm output. The DS75L parts work with a power supply down to +1.7V and feature faster conversion times. Applications include PCs, mobile phones, office equipment and data loggers.

Measurement temperature range: -55 to +125°C
Accuracy: ±2°C from -25 to +100°C
Thermostatic settings are user-definable
Programmable resolution from 9 to 12 bits
Conversion Time DS75 (Max): 150ms (9-bit), 1200ms (12-bit)
Conversion Time DS75L (Max): 25ms (9-bit), 200ms (12-bit)
Communication: Serial I²C bus
Power supply: +2.7V to +5.5Vdc (DS75), +1.7V to +3.7Vdc (DS75L)

Note

Please note that any defect or non – conformance of this product must be discovered and reported to RS within 20 days of purchase.
