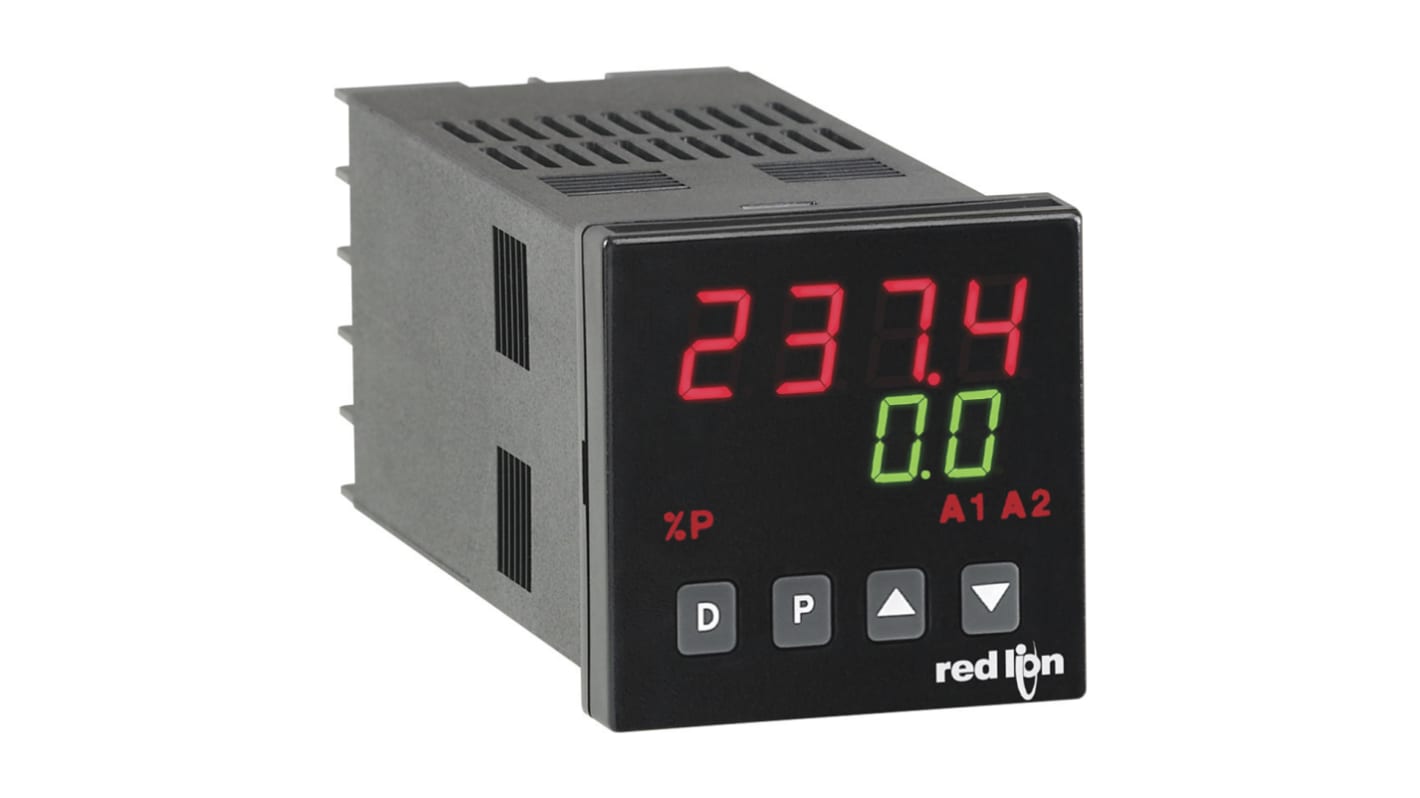

Name: Red Lion T48 Panel Mount PID Temperature Controller, 49.5 x 49.5mm 1 Input, 2 Output Alarm, Linear, Logic, Relay, SSR,
Brand: Red Lion
SKU: 905-5352
Price: 10573.62 THB
Availability: Discontinued

ข้อมูลทางเทคนิค

Technical data sheets

Legislation and Compliance

Product Details

ค้นหาผลิตภัณฑ์ที่คล้ายกันโดยเลือกคุณลักษณะอย่างน้อยหนึ่งรายการ

เลือกทั้งหมด	คุณลักษณะ	ค่า
	Brand	Red Lion
	Output Type	Alarm, Linear, Logic, Relay, SSR
	Supply Voltage	18 → 36 V dc, 85 → 250 V ac, 24 V ac
	Size	49.5 x 49.5mm
	Number of Inputs	1
	Number of Outputs	2
	Minimum Operating Temperature	0°C
	Maximum Operating Temperature	+50°C
	Temperature Range	+149 → +1820 (Type B Thermocouple) °C, 0 → +1768 (Type R Thermocouple) °C, 0 → +1768 (Type S Thermocouple) °C, -200 → +1250 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +600 (RTD 385)
	Communication Module Available	Yes
	Display Type	4 Digit
	IP Rating	IP20, IP65
	Input Type	RTD (2 Wire), RTD (3 Wire), RTD (385), RTD (392), Type B Thermocouple, Type E Thermocouple, Type K Thermocouple, Type N Thermocouple, Type R Thermocouple, Type S Thermocouple, Type T Thermocouple
	Mounting Type	Panel Mount
	Series	T48
	Additional Functionality	PID Function Only
	Display Colour	Green (Bottom), Red (Top)
	Panel Depth	105.9mm
	Termination Type	Screw

	เลือกทั้งหมด
	Brand Red Lion
	Output Type Alarm, Linear, Logic, Relay, SSR
	Supply Voltage 18 → 36 V dc, 85 → 250 V ac, 24 V ac
	Size 49.5 x 49.5mm
	Number of Inputs 1
	Number of Outputs 2
	Minimum Operating Temperature 0°C
	Maximum Operating Temperature +50°C
	Temperature Range +149 → +1820 (Type B Thermocouple) °C, 0 → +1768 (Type R Thermocouple) °C, 0 → +1768 (Type S Thermocouple) °C, -200 → +1250 (Type K Thermocouple) °C, -200 → +1300 (Type N Thermocouple) °C, -200 → +400 (Type T Thermocouple) °C, -200 → +600 (RTD 385)
	Communication Module Available Yes
	Display Type 4 Digit
	IP Rating IP20, IP65
	Input Type RTD (2 Wire), RTD (3 Wire), RTD (385), RTD (392), Type B Thermocouple, Type E Thermocouple, Type K Thermocouple, Type N Thermocouple, Type R Thermocouple, Type S Thermocouple, Type T Thermocouple
	Mounting Type Panel Mount
	Series T48
	Additional Functionality PID Function Only
	Display Colour Green (Bottom), Red (Top)
	Panel Depth 105.9mm
	Termination Type Screw

COO (Country of Origin):: US

T48 PID Temperature Controller

The T48 PID controller accepts signals from various temperature sensors and precisely displays the process temperature. It also provides an accurate output control signal (time proportional or linear DC) to maintain the process at the desired temperature.
The controllers comprehensive yet simple programming allows it to meet a wide variety of application requirements.

• 2 line by 4-digit (10.2 mm top line, 7.6 mm, bottom line) LED display
• PID control with reduced overshoot
• On-demand auto-tuning of PID control settings
• Dual LED displays for simultaneous indication of temperature and setpoint
• Status indicators for outputs and control modes
• Accepts 10 types of sensor inputs (thermocouple of RTD)
• Optional heater current monitor and heater break alarm
• Optional dual alarm outputs
• Optional 2 linear DC outputs (0-10V, 0/4-20 mA)
• Manual/automatic control modes
• Setpoint ramping for process startup
• Programmable user input (digital) for added flexibility
• Heating and optional cooling outputs

Red Lion Temperature Controllers
